3. Device installation and start-up
3.1 Unit installation
The first installation should be performed by a qualified manufacturer’s or distributor’s representative!
After removing the unit from the carton, check if the complete unit has been delivered. In case of any
inconsistencies contact the distributor or manufacturer.
After removing the unit from transportation packaging wait approximately two hours before proceeding to
next installation steps. This is aimed at adaptation of the unit to conditions in operation room.
The unit shall be placed on a table, trolley or in a cupboard near mains socket with power input 230V and
50/60Hz. Due to manufacturing under safety class I the unit can be connected only to a socket with protective
earth pin. It is recommended to place the unit at such a height that it would enable convenient operation from
the front panel. The light shall enable easy readout of display indicators, however the unit shall not be exposed
to direct sunlight.
3.1.1 Mounting of accessory holders
Mount the holders according to the information and illustrations given in chapter 4.3 of PhysioGo Technical
Description manual.
3.1.2 Connection of accessories – General notices
It should be noted that some of the connection sockets are multifunctional and different types of accessories
may be connected in. All connectors are protected against pulling out of the sockets. It is recommended to
secure the plug by tightening protection ring.
3.1.3 Connection of patient’s cables and application of electrodes
Electrotherapy cables should be connected to electrotherapy socket according to figure 3.1. Electrotherapy
sockets are marked with symbols: and .

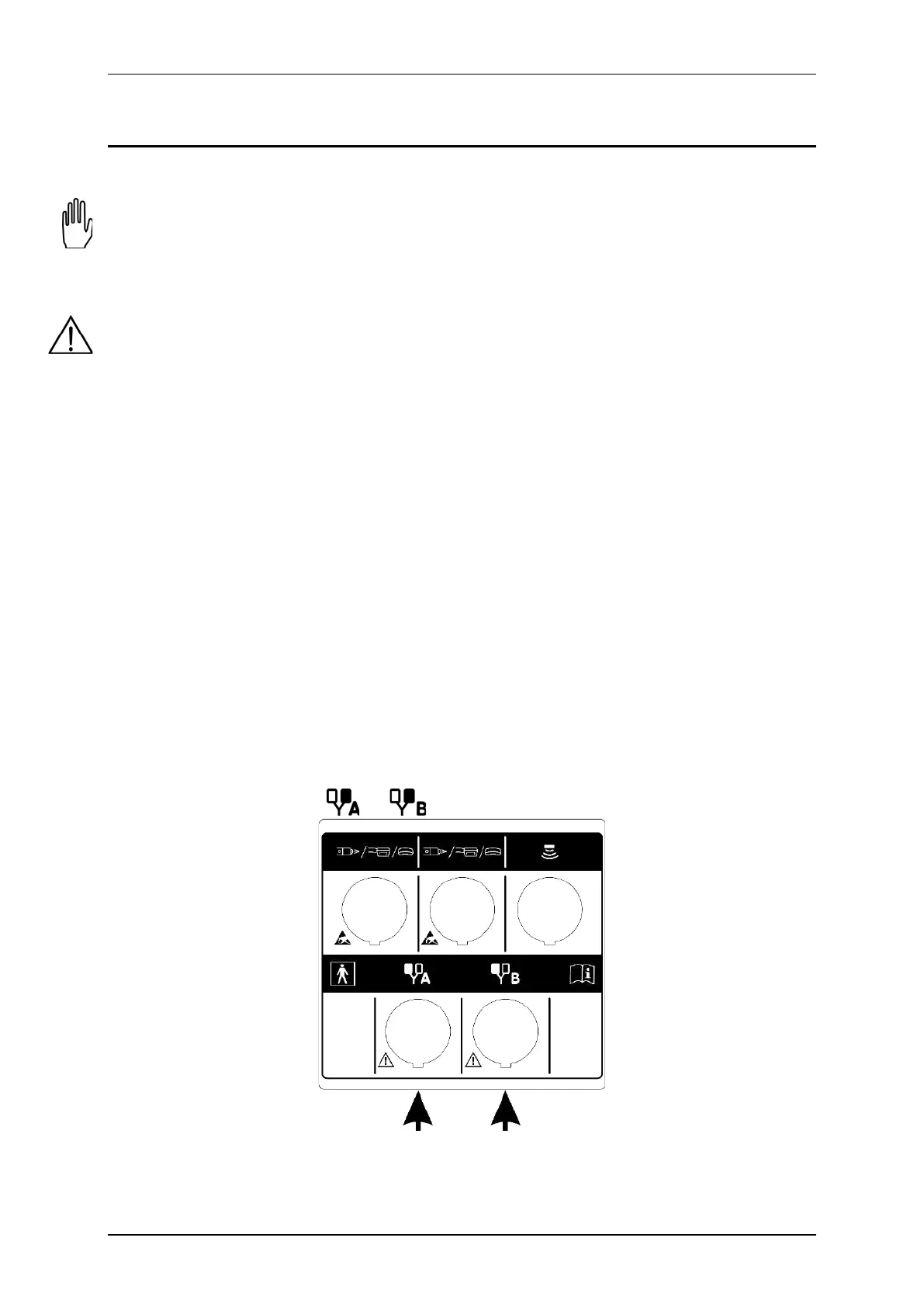

Figure 3.1. Electrotherapy sockets
