4. Unit operation
PHG 700C / 701C User Manual Page 26 of 47

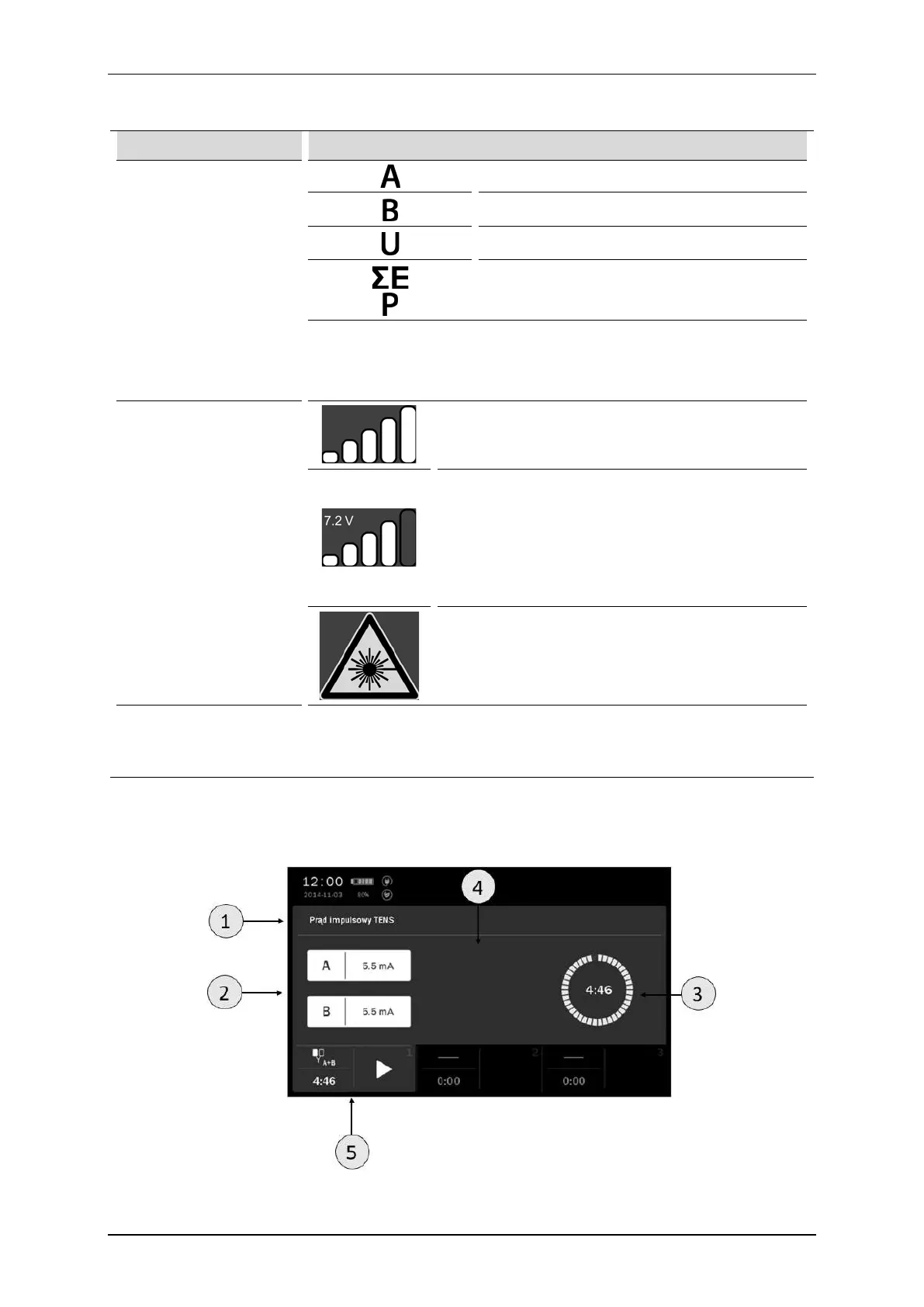

4.4 Display description
Display Description
Output signals of circuits
and amplitude settings
identifiers
Electrotherapy circuit – socket A
Electrotherapy circuit – socket B
Ultrasound circuit
Laser circuit
• current and voltage for electrotherapy circuits
• power density / power for ultrasound head
•
output energy and power emitted by laser applicator
Information field
Quality of the ultrasound head contact. The more lit
columns, the better the contact.
CV mode – the voltage value and the estimated intensity
of current flow, where:
• one column – current < 10 mA
• two columns – current in the range of 10÷20 mA
• three columns – current in the range of 20÷30 mA
• four columns – current in the range of 30÷40 mA
• five columns – current > 40 mA
Laser radiation emission.
Time indication
Presentation of the treatment elapsing time.
Moreover, for electrotherapy sequences, indication of the sequence step.
The indicator of currently executing step is blinking.
A sample views of treatment displays are presented in the following subchapters.
4.4.1 Electrotherapy
Figure 4.4. Screenshot sample view for dual circuit electrotherapy A+B
