3. Device installation and start-up
page 9 of 47 issue date 24.02.2021, release 11.1
Patient cables are terminated with banana type 4 mm or 2 mm plugs – two are red and the other two are black.
Channels are marked with appropriate symbols. Electrodes should be connected to those plugs.

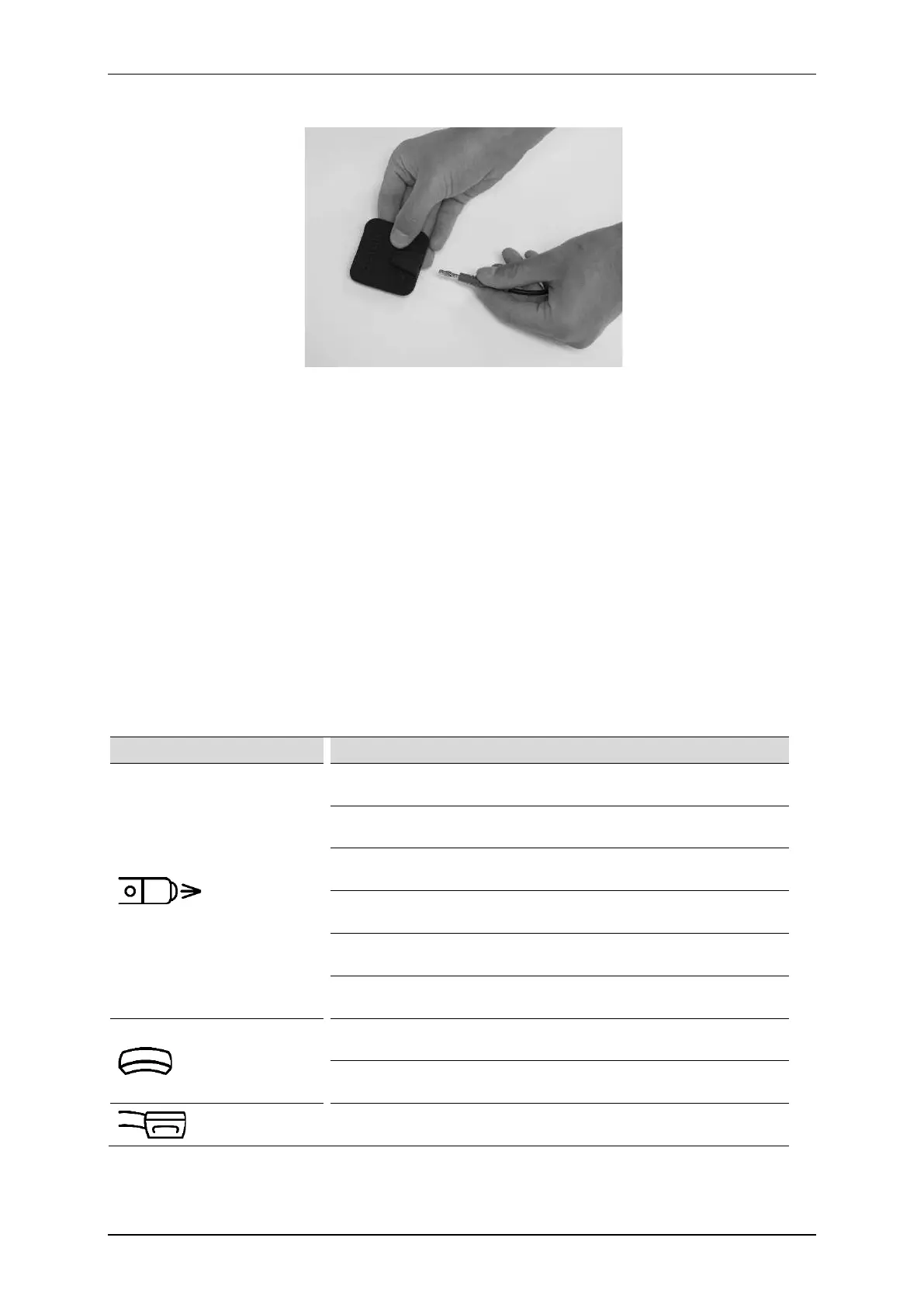

Figure 3.2. Connection of electrodes
After switching the unit on, red plugs are connected to positive pole, and black plugs are connected to negative
pole. Electrode connection polarity matters in case of treatments with galvanic currents as well as unipolar
currents of low and medium frequency.
As a standard accessory, the unit is equipped with elastomer-carbon electrodes. Parameters of such electrodes
facilitate performing treatment procedures within a full range of available values of output signals amplitudes. It
is recommended to operate with the unipolar currents using metal – tin or aluminum electrodes, as they wear
out much slower than the electrodes made from other materials.
As optional accessories you can purchase self-adhesive electrodes in different dimensions. This type of electrodes
is suitable for use with bipolar currents, especially TENS currents. They shall not be used for therapy with
unipolar currents! Selection of the electrodes type to a particular treatment should be based on doctor’s or
physiotherapist’s knowledge and experience.
3.1.4 Connection of laser applicator
Laser applicators should be connected to laser therapy sockets according to figure 3.5. Meaning of laser
applicator symbols is shown in the table below.
Symbol Laser applicator type
Red light point probe, type 40RDV2
Red light point probe, type 80RDV2
Red light point probe, type 80RDV3
Infrared light point probe, type 200IRV2
Infrared light point probe, type 400IRV2
Infrared light point probe, type 400IRV3
Scanning laser applicator, type SKW2-400 / SK2-400
Scanning laser applicator, type SKW2-450 / SK2-450
Cluster laser applicator, type CL1800WH / CL1800
