3. Device installation and start-up
page 11 of 47 issue date 24.02.2021, release 11.1
Connection between scanning applicator and controller should be done with cable run inside the stand. It must
be connected to the socket on the rear casing panel of the scanner applicator and laser therapy socket located
on the unit.
3.1.5 Connection of ultrasound head
Connect the ultrasound head into the socket marked as .

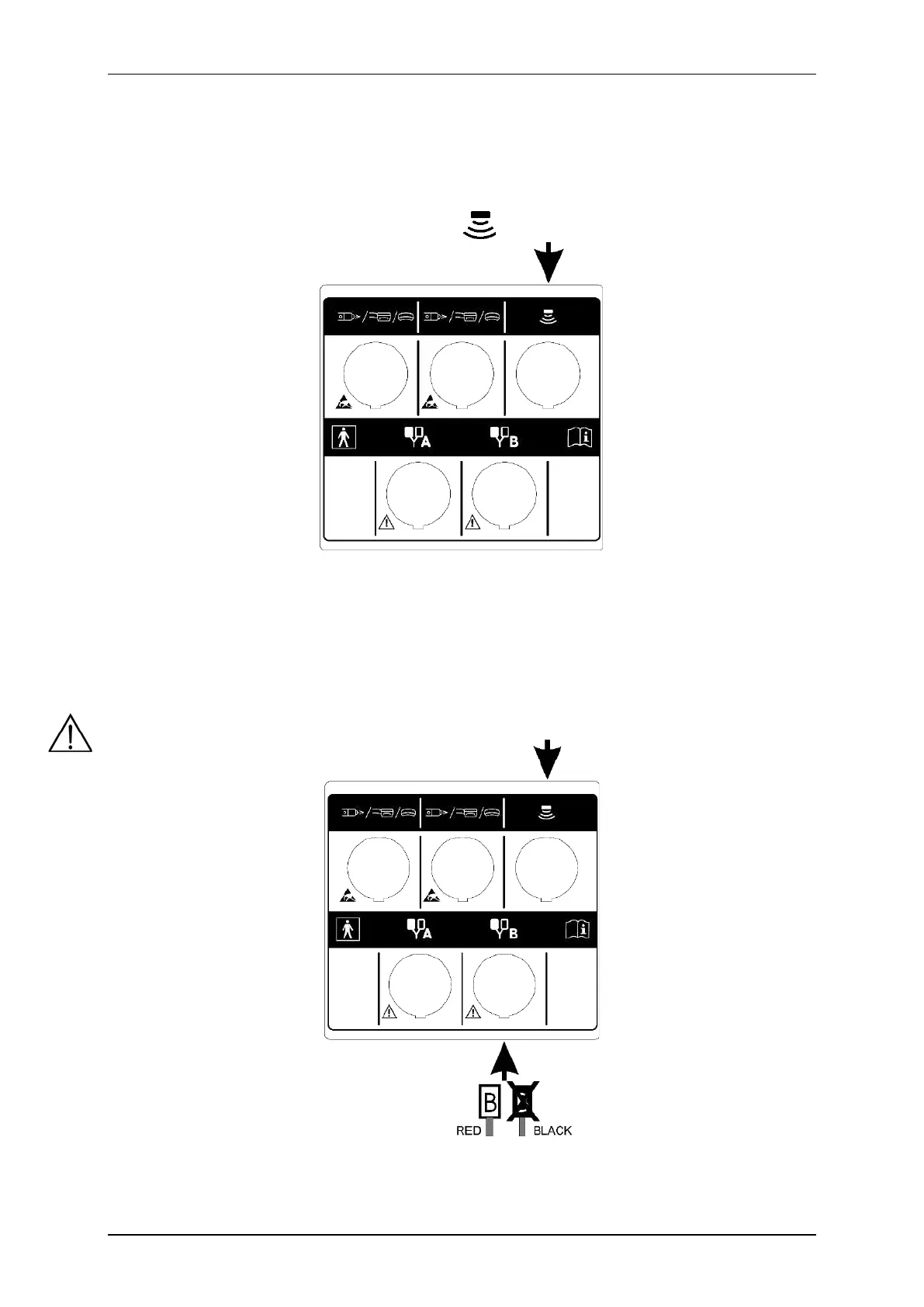

Figure 3.6. Ultrasound head socket
3.1.6 Connection in combined therapy
To perform a combined therapy treatment please use the ultrasound head and electrotherapy patient’s cable
connected to socket B. After switching the mains supply on, the ultrasound head is connected to a negative pole.
While a red plug in channel B is connected to a positive pole.
A black plug in channel B in combined therapy is inactive and electrodes should not be connected in.
Figure 3.7. Output circuits for combined therapy
