5.2.3 Positioning and installation
The UPS must be installed in a clean and dry room, preferably not dusty. The User must
ensure that there is enough air exchange in the room so that the equipment can be
adequately cooled; if this is not guaranteed, the room must be adequately aired.
If the UPS contains the batteries internally the air exchange with the external ambient will
have to be according to EN 50091-1, annex N.
The picture 22 and the following tables show the base plan of the UPS with the related
dimensions and the weight of the unit with internal batteries.
5.2.3.1 Base plan, static load and weights

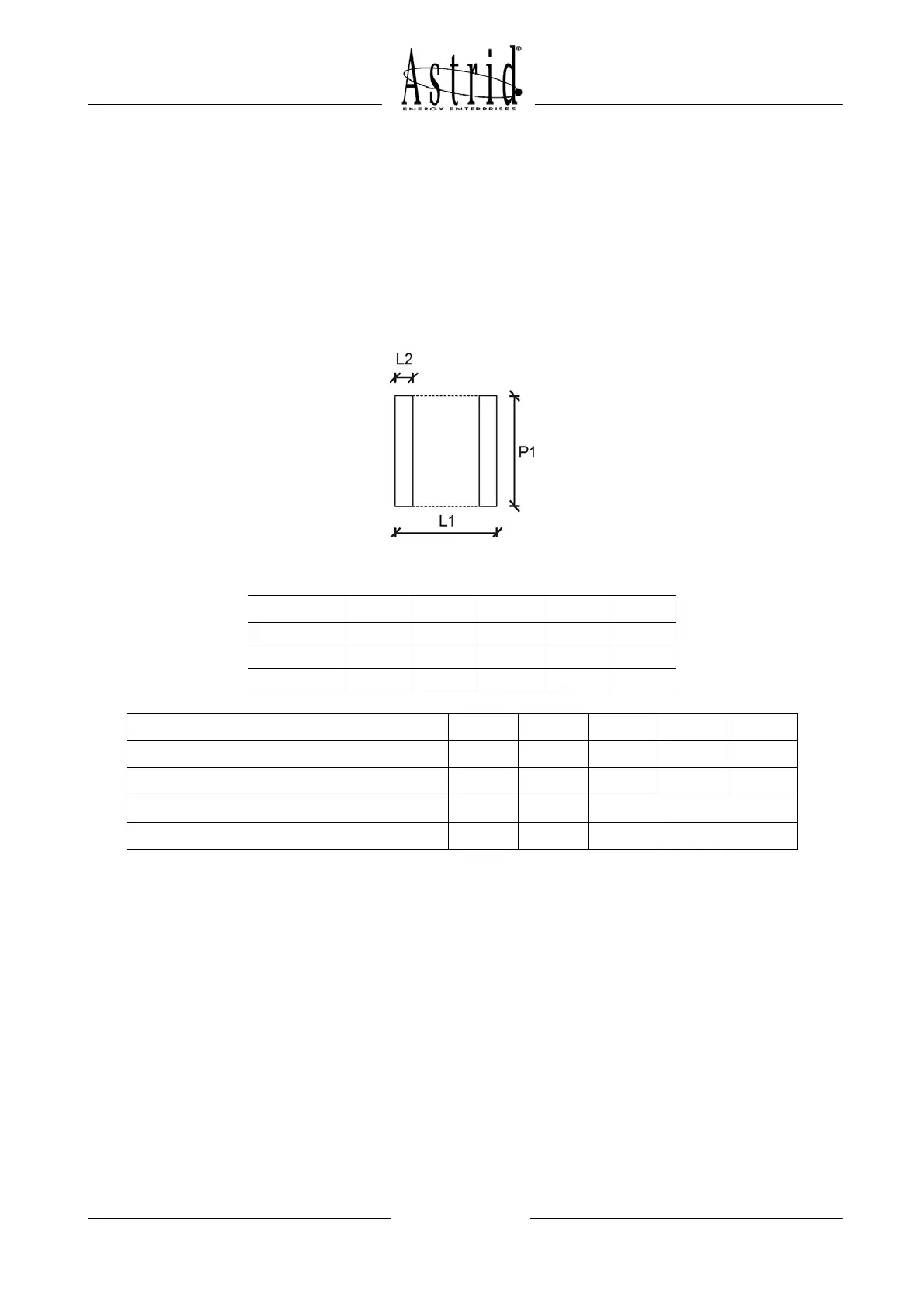

Picture 22 – Base plan
UPS (kVA) 20 30 40 60 80
L1 – mm 650 650 650 650 650
P1 – mm 820 820 820 820 820
L2 – mm 25 25 25 25 25
UPS (kVA) 20 30 40 60 80
Weight w/o battery – kg 325 335 389 450 511
Weight with battery (5 minutes autonomy) – kg 481 535 - - -
Weight with battery (10 minutes autonomy) – kg 495 669 - - --
Weight with battery (15 minutes autonomy) – kg 549 - - - -
