OM226142 rev C
37
The connection cables with the UPS are included inside the battery cabinet (standard
length 5m). The standard colour for the external battery cabinet is RAL 5026; the
protection level is IP20.
5.2.6.1 Dimensions and weights
AS028 AS029 AS182

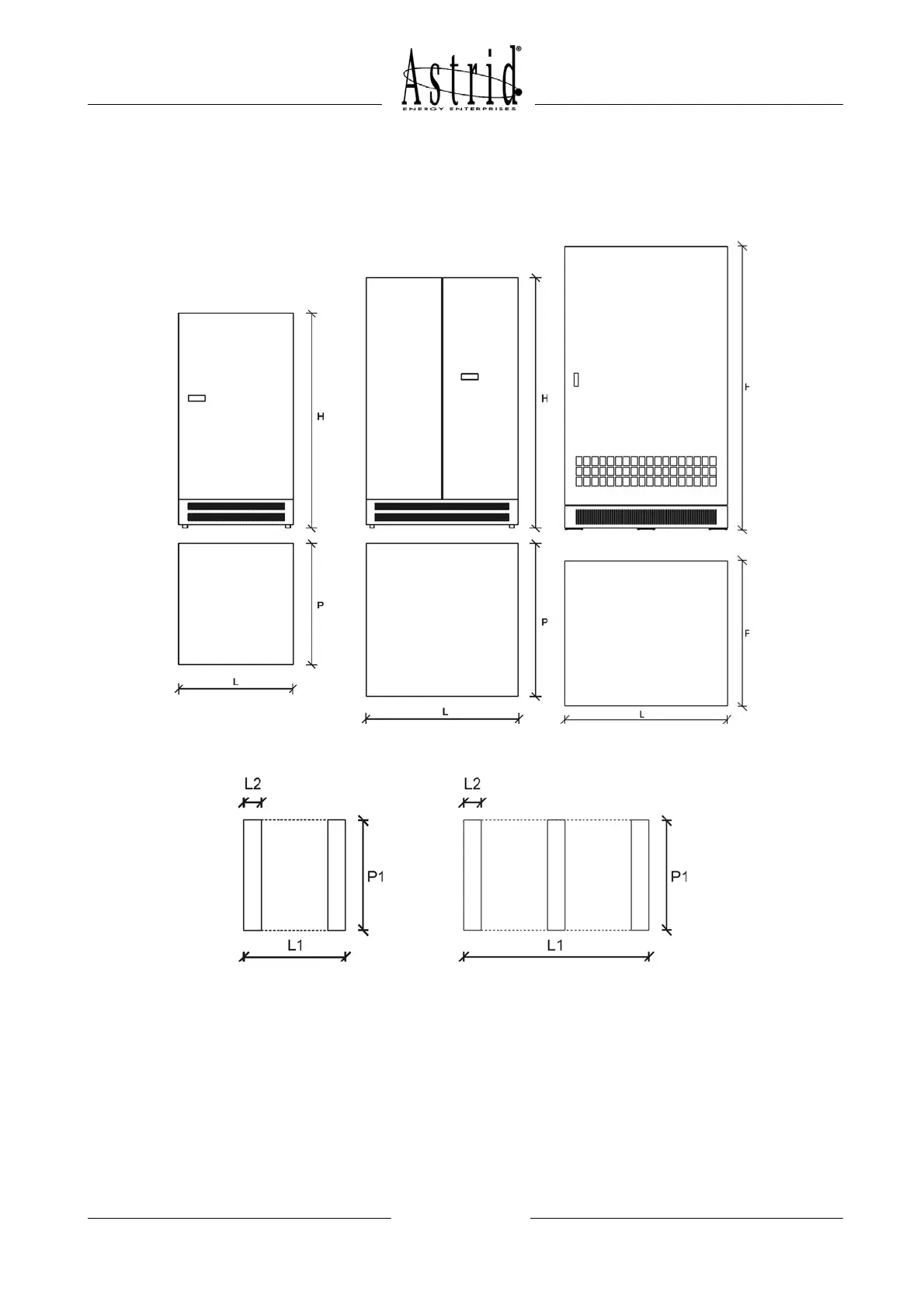

Picture 28 – Dimensions of the external battery cabinets
AS028/AS029 AS182
Picture 29 – Base plan of the external battery cabinets
