CABINET AS028 AS029 AS182
L – mm 620 815 1030
P – mm 645 820 925
H – mm 1150 1340 1800
L1 – mm 580 775 1025
P1 – mm 600 775 900
L2 – mm 25 25 112
Weight without battery – kg 100 160 340
CABINET AS028 AS029 AS182
Numbers of blocks 12V 32 32 32
Dim. Max block (mm ) 196x163x185 350x180x190 410x220x280
Max Nominal Capacity per block 38 Ah 65 Ah 130 Ah
Weight of single block 14,6 Kg 24 Kg 45 Kg
5.2.6.2 Connections
The following picture shows the electrical connection between the UPS and the external
battery cabinet.

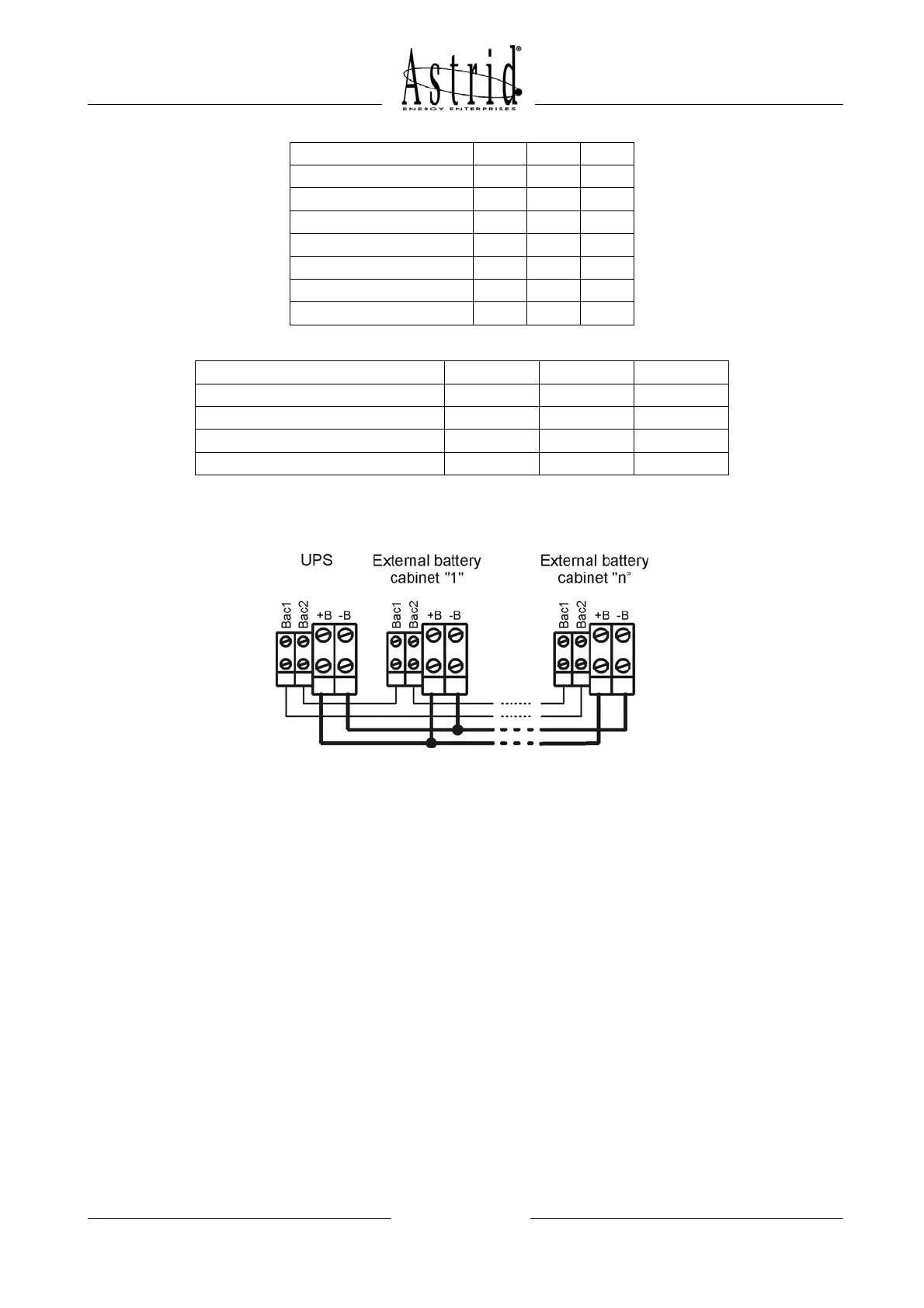

Picture 30 – Battery cabinets connections
The connection cables are two power cables, with section of 50mm
2
and with length
ranging from 2 to 50m. Longer cables are subject to excessive voltage drop, so their
section must be increased accordingly.
