6.14 REMOTE PANEL
The remote operating panel is used for remote monitoring of the UPS for distance up to
400m, it can be installed in a control room, and provides the same user interface as the
local panel.
Consistently with UPS front panel, it is based on 2x20 LCD display, leds, keys, silk-screen
and buzzer. Up to 8 remote control panels may be connected to the UPS through the
RS485 serial interface.

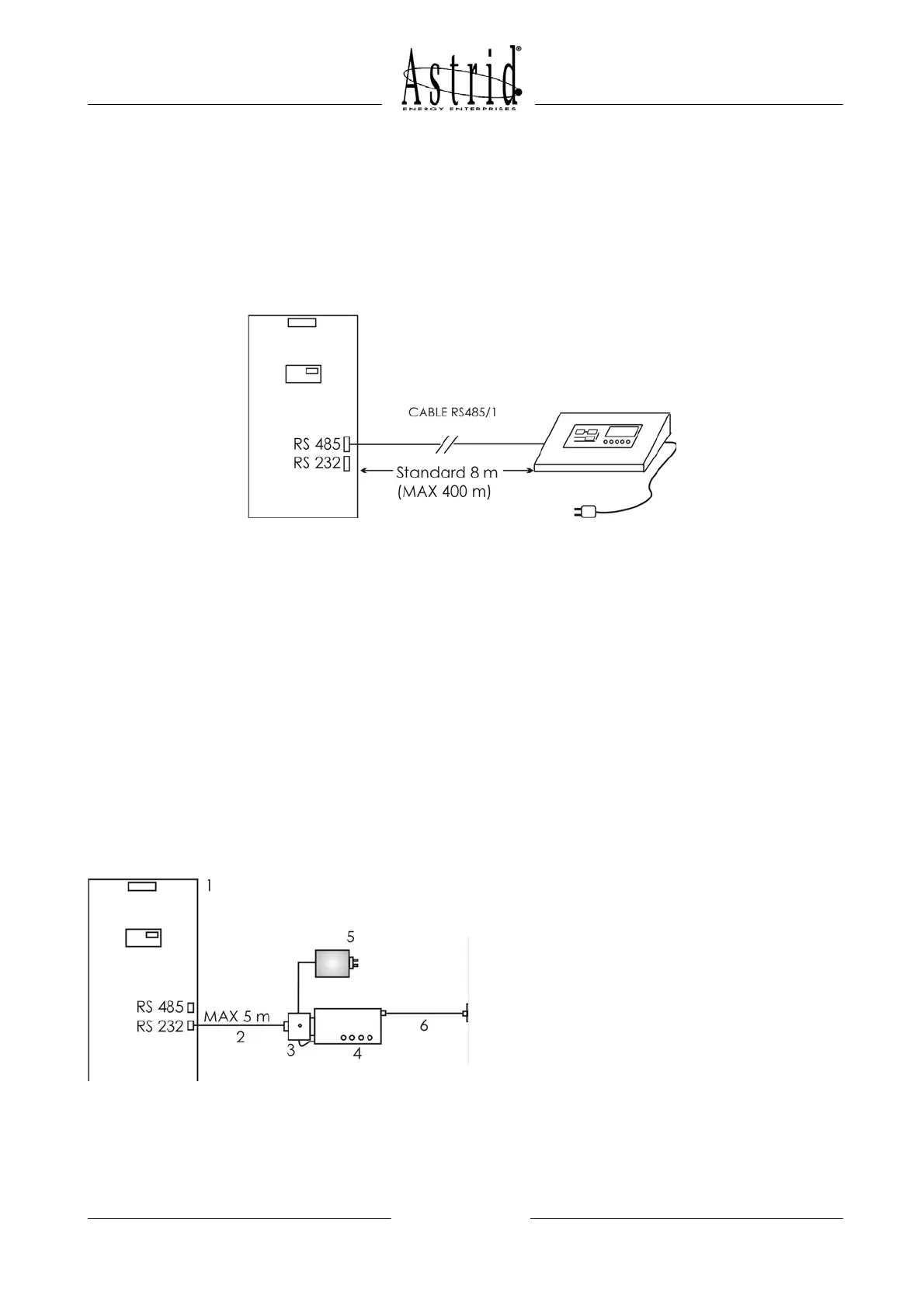

Picture 38 – Remote panel connection
- Single remote panel dimensions: 320 x 210 x 60 mm (W x D x H)
- Power requirements: 220÷240Vac 50-60Hz
The remote panel includes:
- Remote panel with standard supply cable (L = 1m).
- RS485 connection cable (standard length 8m).
6.15 TELEPHONE CONNECTION KIT
This package provides hardware and software required to connect the UPS to a remote
PC through a telephone line. The remote PC can dial the UPS through a modem and a
dedicated line, check the status and read the information about alarms, if pending. The
same package is required for the UPS REMOTE SERVICE.
1 – UPS
2 – RS232 connection cable
3 – UMI Interface
4 – Modem
5 – Power supply
(Input: 220÷240Vac/50-60Hz)
6 – Telephone wire
Picture 39 – UPS-Modem connection
