ASUS RS400-E8-PS2, RS400-E8-PS2-F
1-9
RS400-E8-PS2-F
6
5
4
4
4
4
4
4
3
2
8
7
1
9
Riser Card

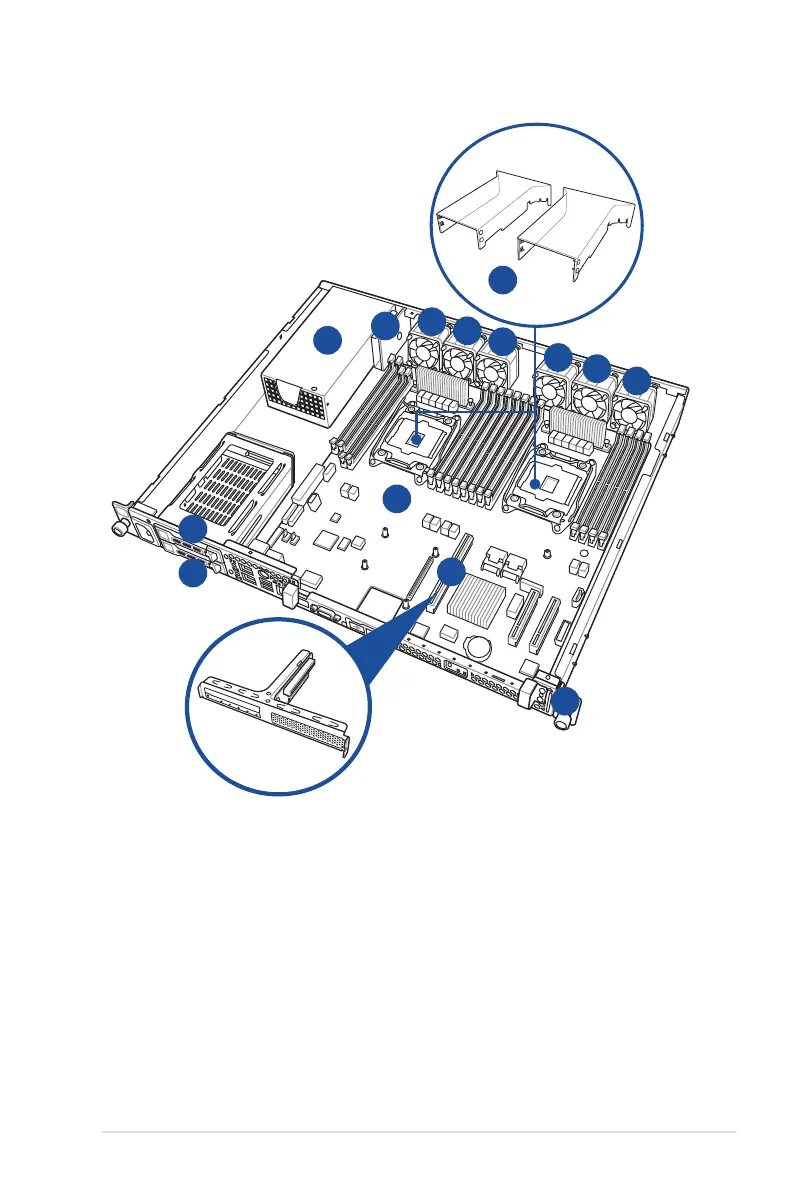

1. Power supply and power fan
2. PCI Express slot (with Riser Card installed by factory default)
3. ASUS Z10PR-D16 Server Board
4. System fans (40mm x 28mm)
5. 2.5-inch SSD Bays 1 (upper) — Connect to SATA1 port
6. 2.5-inch SSD Bays 2 (lower) —Connect to SATA2 port
7. Asset Tag
8. Back I/O panel
9. Air duct (installed by factory default)
