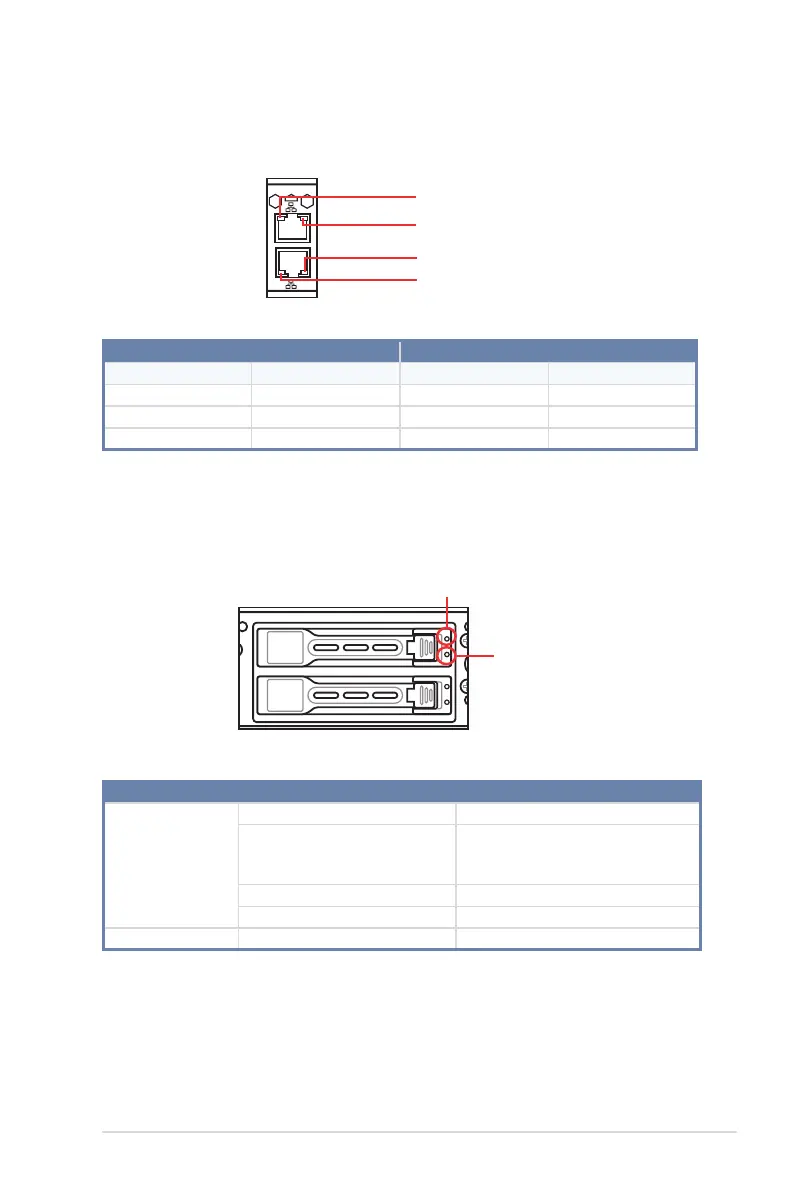

1.7.2 LAN (RJ-45) LEDs
ACT/LINK LED SPEED LED
Status Description Status Description
OFF No link OFF 10 Mbps connection
GREEN Linked ORANGE 100 Mbps connection
BLINKING Data activity GREEN 1 Gbps connection
1.7.3 HDD status LED
HDD status LED
HDD activity LED
HDD LED Description
HDD Status LED
GREEN Power ON (HDD detected)
RED
RAID disk has failed and should be
swapped immediately (Error detected
in the installed HDD)
Blinking GREEN/RED RAID rebuilding
OFF No HDD installed
HDD Activity LED Blinking GREEN Read/write data from/to HDD
