ASUS SABERTOOTH 990FX R3.0
1-17
Chapter 1

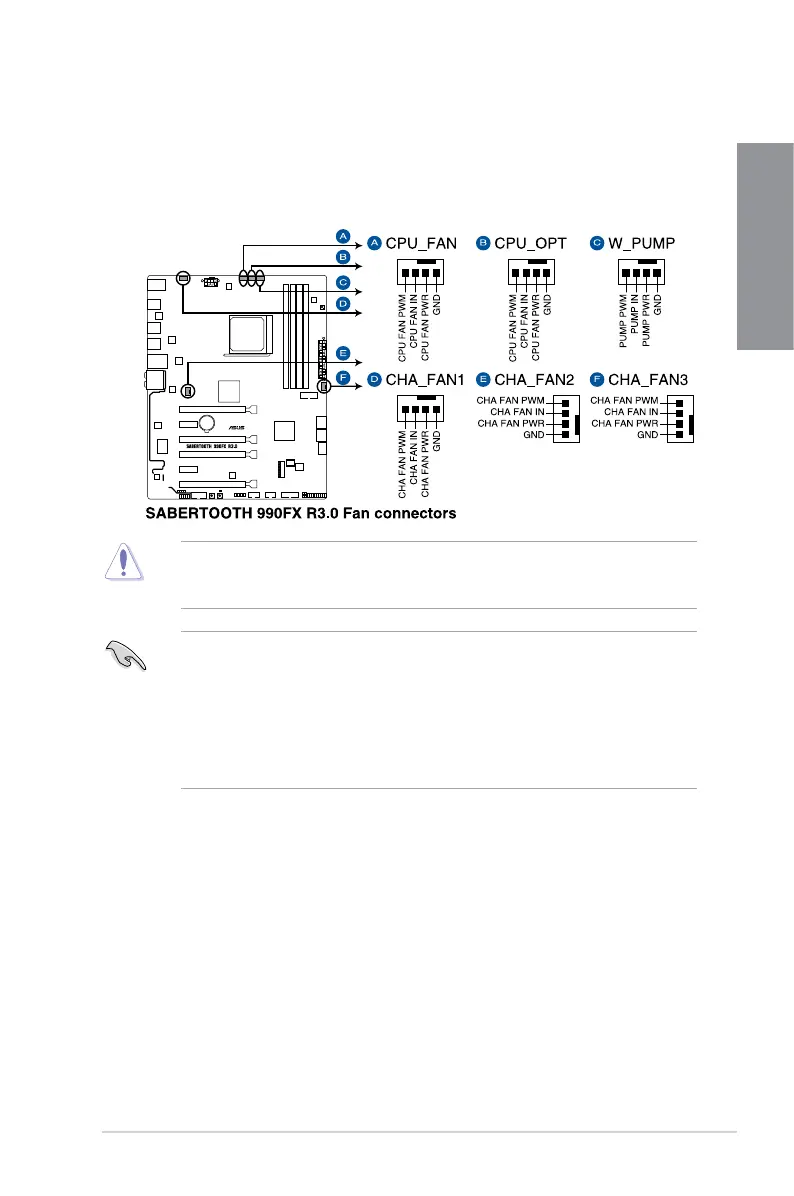

7. CPU and chassis fan connectors (4-pin CPU_FAN, 4-pin CPU_OPT, 4-pin CHA_
FAN1-3, 4-pin W_PUMP)
Connectthefancablestothefanconnectorsonthemotherboard,ensuringthatthe
blackwireofeachcablematchesthegroundpinoftheconnector.
DONOTforgettoconnectthefancablestothefanconnectors.Insufcientairowinside
thesystemmaydamagethemotherboardcomponents.Thesearenotjumpers!Donot
placejumpercapsonthefanconnectors!
• TheCPU_FANconnectorsupportstheCPUfanofmaximum1A(12W)fanpower.
• W_PUMPfunctionsupportdependsonwatercoolingdevice.Whenusingawater
coolingdevice,connectthedevice’sfanconnector(s)tothemotherboard’sCPU_FAN
connector,andthewaterpumpconnectortotheW_PUMPconnector.
• IfyouinstalltwoVGAcards,werecommendthatyouplugtherearchassisfancable
tothemotherboardconnectorlabeledCHA_FAN1,CHA_FAN2,orCHA_FAN3for
betterthermalenvironment.
