Chapter 3: BIOS Setup
Chapter 3
3.2.2 Advanced Mode
The Advanced Mode provides advanced options for experienced end-users to congure
the BIOS settings. The gure below shows an example of the Advanced Mode. Refer to the
following sections for the detailed congurations.
To access the Advanced Mode, click Exit, then select Advanced Mode or press the <F7>
hotkey.
Menu bar
The menu bar on top of the screen has the following main items:
My Favorites
For saving the frequently-used system settings and conguration
Main
For changing the basic system conguration
Ai Tweaker
For changing the overclocking settings
Advanced
For changing the advanced system settings
Monitor
For displaying the system temperature, power status, and changing
the fan settings
Boot
For changing the system boot conguration
Tool
For conguring options for special functions
Exit
For selecting the exit options and loading default settings

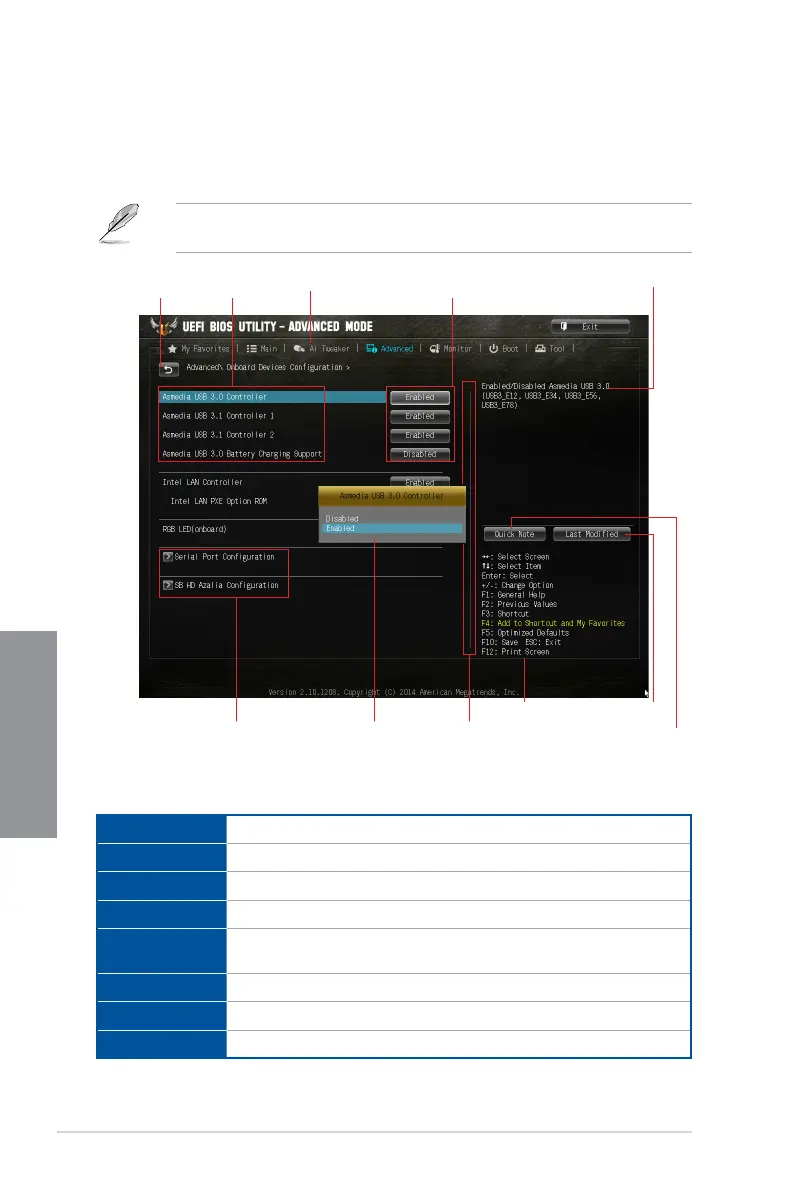

Navigation keys
General help
Menu bar
Submenu item
Configuration fieldsMenu itemsBack button
Pop-up window
Scroll bar
Last modified
settings
Quick note

Asus SABERTOOTH 990FX R3.0 Specifications

General

Chipset	AMD 990FX/SB950
CPU Support	AMD AM3+ FX/Phenom II/Athlon II/Sempron 100 Series Processors
CPU Socket Type	AM3+
Storage	6 x SATA 6Gb/s
SATA RAID	RAID 0, 1, 5, 10
Audio	Realtek ALC1150 8-Channel High Definition Audio CODEC
LAN	Intel I211-AT, 1 x Gigabit LAN Controller(s)
Form Factor	ATX
Dimensions	12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Memory Support	4 x DIMM, Max. 32GB, DDR3 1866/1600/1333/1066 MHz, ECC, Non-ECC, Un-buffered Memory
Expansion Slots	1 x PCIe 2.0 x1 1 x PCI
USB Ports	12 x USB 2.0 (6 at back panel, 6 at mid-board)
Power Pin	24-pin ATX Power Connector, 8-pin ATX 12V Power Connector
Multi-GPU Support	Supports NVIDIA Quad-GPU SLI and AMD Quad-GPU CrossFireX Technology
