Chapter 3: BIOS Setup
Chapter 3

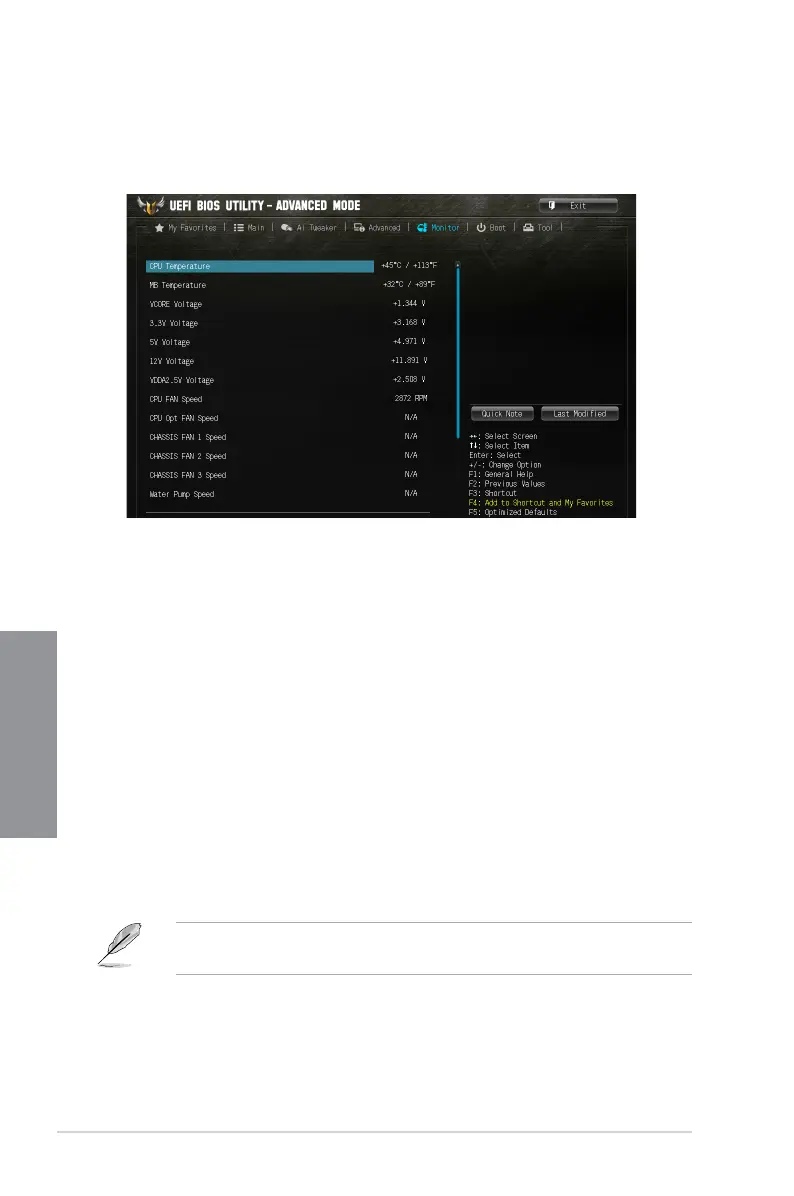

3.7 Monitor menu
The Monitor menu displays the system temperature/power status, and allows you to change
the fan settings. Scroll down on the menu to display more items.
CPU Temperature / MB Temperature [xxx°C/xxx°F]
The onboard hardware monitor automatically detects and displays the CPU and motherboard
temperatures. Select Ignore if you do not wish to display the detected temperatures.
VCORE Voltage, 3.3V Voltage, 5V Voltage, 12V Voltage, VDDA2.5V Voltage
The onboard hardware monitor automatically detects the voltage output through the onboard
voltage regulators. Select Ignore if you do not want to detect this item.
CPU Fan Speed, CPU Opt Fan Speed, Chassis Fan 1-3 Speed, Water Pump
Speed [xxxx RPM] or [Ignore] / [N/A]
The onboard hardware monitor automatically detects and displays the CPU and chassis fan
speeds in rotations per minute (RPM). If the fan is not connected to the motherboard, the eld
shows N/A. Select Ignore if you do not wish to display the detected speed.
CPU Q-Fan Control [PWM Mode]
[Disabled] Disable the Q-Fan control.
[PWM Mode] Enable the CPU Q-Fan control feature in PWM mode for 4-pin CPU fan.
[DC Mode] Enable the CPU Q-Fan control feature in DC mode for 3-pin CPU fan.
The following items appear only when you set CPU Q-Fan Control to [PWM Mode] or [DC
Mode].
CPU_FAN Speed Low Limit [600 RPM]
This item allows you to disable or set the CPU fan warning speed.
Conguration options: [Ignore] [100 RPM] [200 RPM] [300 RPM] [400 RPM] [500 RPM] [600
RPM]

Asus SABERTOOTH 990FX R3.0 Specifications

General

Chipset	AMD 990FX/SB950
CPU Support	AMD AM3+ FX/Phenom II/Athlon II/Sempron 100 Series Processors
CPU Socket Type	AM3+
Storage	6 x SATA 6Gb/s
SATA RAID	RAID 0, 1, 5, 10
Audio	Realtek ALC1150 8-Channel High Definition Audio CODEC
LAN	Intel I211-AT, 1 x Gigabit LAN Controller(s)
Form Factor	ATX
Dimensions	12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Memory Support	4 x DIMM, Max. 32GB, DDR3 1866/1600/1333/1066 MHz, ECC, Non-ECC, Un-buffered Memory
Expansion Slots	1 x PCIe 2.0 x1 1 x PCI
USB Ports	12 x USB 2.0 (6 at back panel, 6 at mid-board)
Power Pin	24-pin ATX Power Connector, 8-pin ATX 12V Power Connector
Multi-GPU Support	Supports NVIDIA Quad-GPU SLI and AMD Quad-GPU CrossFireX Technology
