ASUS SABERTOOTH 990FX R3.0
3-35
Chapter 3

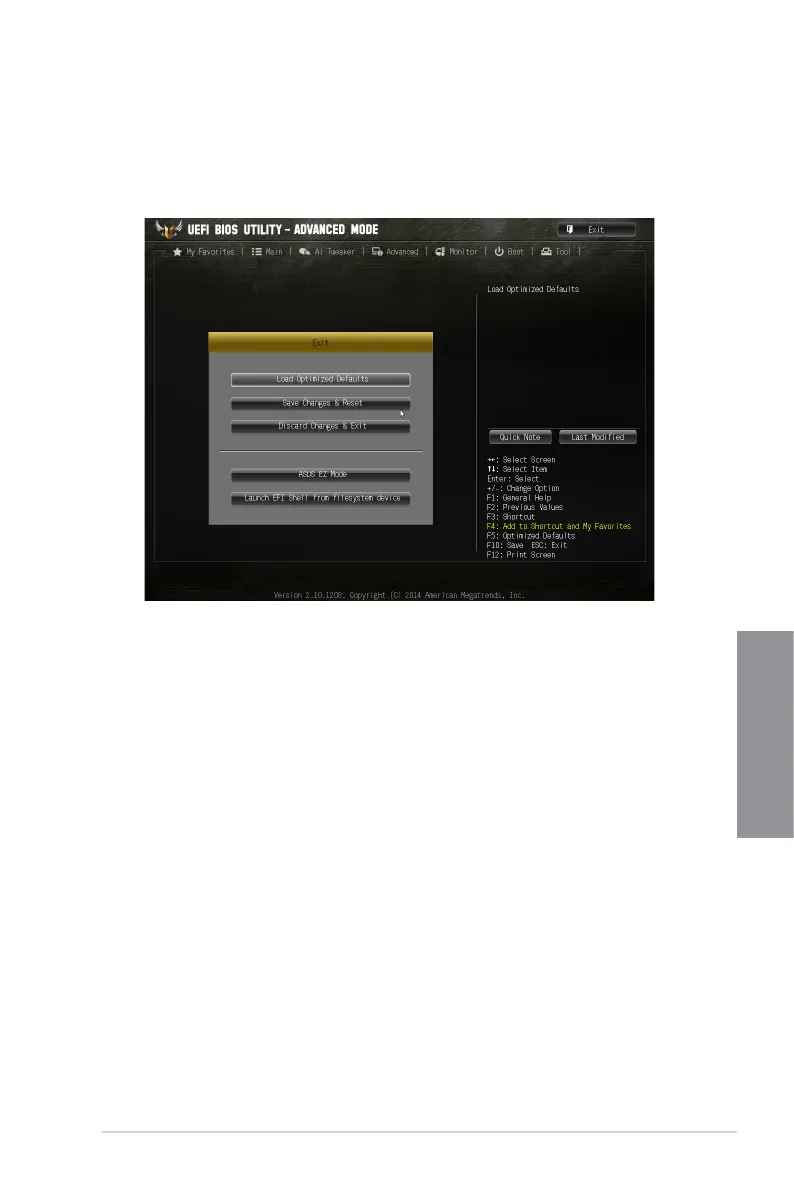

3.10 Exit menu
The Exit menu items allow you to load the optimal default values for the BIOS items, and
save or discard your changes to the BIOS items. You can access the EZ Mode from the Exit
menu.
Load Optimized Defaults
This option allows you to load the default values for each of the parameters on the Setup
menus. When you select this option or if you press <F5>, a conrmation window appears.
Select Yes to load the default values.
Save Changes & Reset
Once you are nished making your selections, choose this option from the Exit menu to
ensure the values you selected are saved. When you select this option or if you press <F10>,
a conrmation window appears. Select Yes to save changes and exit.
Discard Changes & Exit
This option allows you to exit the Setup program without saving your changes. When you
select this option or if you press <Esc>, a conrmation window appears. Select Yes to
discard changes and exit.
ASUS EZ Mode
This option allows you to enter the EZ Mode screen.
Launch EFI Shell from filesystem device
This option allows you to attempt to launch the EFI Shell application (shellx64.e) from one of
the available devices that have a lesystem.

Asus SABERTOOTH 990FX R3.0 Specifications

General

Chipset	AMD 990FX/SB950
CPU Support	AMD AM3+ FX/Phenom II/Athlon II/Sempron 100 Series Processors
CPU Socket Type	AM3+
Storage	6 x SATA 6Gb/s
SATA RAID	RAID 0, 1, 5, 10
Audio	Realtek ALC1150 8-Channel High Definition Audio CODEC
LAN	Intel I211-AT, 1 x Gigabit LAN Controller(s)
Form Factor	ATX
Dimensions	12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Memory Support	4 x DIMM, Max. 32GB, DDR3 1866/1600/1333/1066 MHz, ECC, Non-ECC, Un-buffered Memory
Expansion Slots	1 x PCIe 2.0 x1 1 x PCI
USB Ports	12 x USB 2.0 (6 at back panel, 6 at mid-board)
Power Pin	24-pin ATX Power Connector, 8-pin ATX 12V Power Connector
Multi-GPU Support	Supports NVIDIA Quad-GPU SLI and AMD Quad-GPU CrossFireX Technology
