Chapter 4: Software Support
Chapter 4
Realtek
®
HD Audio Manager for Windows
®
8.1 / Windows
®
7

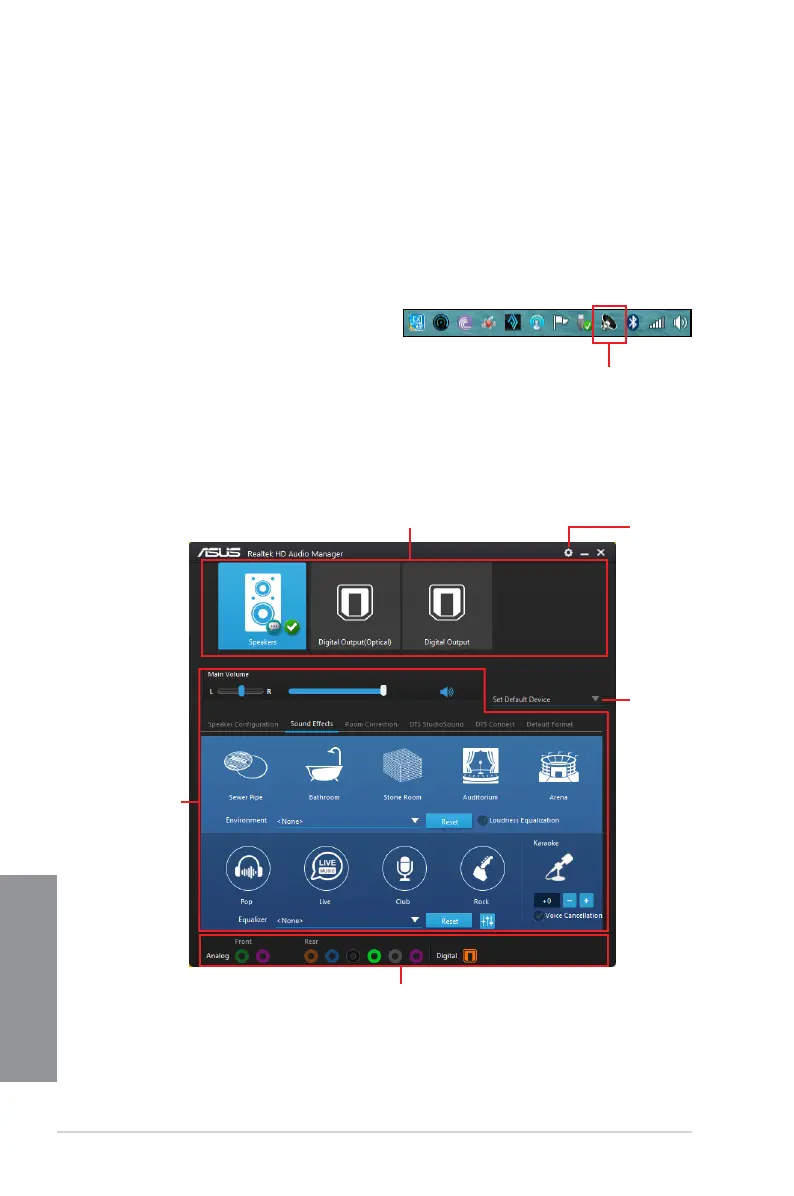

Configuration option tabs (vary with the audio devices connected)
Advanced settings
Set default device
button
Control settings panel
Analog and digital connector status
4.6 Audio configurations
The Realtek
®
audio CODEC provides 8-channel audio capability to deliver the ultimate audio
experience on your computer. The software provides Jack-Sensing function, S/PDIF Out
support, and interrupt capability. The CODEC also includes the Realtek
®
proprietary UAJ
®
(Universal Audio Jack) technology for all audio ports, eliminating cable connection errors, and
giving users plug and play convenience.
Follow the installation wizard to install the Realtek
®
Audio Driver from the support DVD that
came with the motherboard package.
If the Realtek
®
audio software is correctly installed, you will nd the Realtek
®
HD Audio
Manager icon on the taskbar. Double-Click
on the icon to display the Realtek
®
HD Audio
Manager.
Realtek
®
HD Audio Manager

Asus SABERTOOTH 990FX R3.0 Specifications

General

Chipset	AMD 990FX/SB950
CPU Support	AMD AM3+ FX/Phenom II/Athlon II/Sempron 100 Series Processors
CPU Socket Type	AM3+
Storage	6 x SATA 6Gb/s
SATA RAID	RAID 0, 1, 5, 10
Audio	Realtek ALC1150 8-Channel High Definition Audio CODEC
LAN	Intel I211-AT, 1 x Gigabit LAN Controller(s)
Form Factor	ATX
Dimensions	12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Memory Support	4 x DIMM, Max. 32GB, DDR3 1866/1600/1333/1066 MHz, ECC, Non-ECC, Un-buffered Memory
Expansion Slots	1 x PCIe 2.0 x1 1 x PCI
USB Ports	12 x USB 2.0 (6 at back panel, 6 at mid-board)
Power Pin	24-pin ATX Power Connector, 8-pin ATX 12V Power Connector
Multi-GPU Support	Supports NVIDIA Quad-GPU SLI and AMD Quad-GPU CrossFireX Technology
