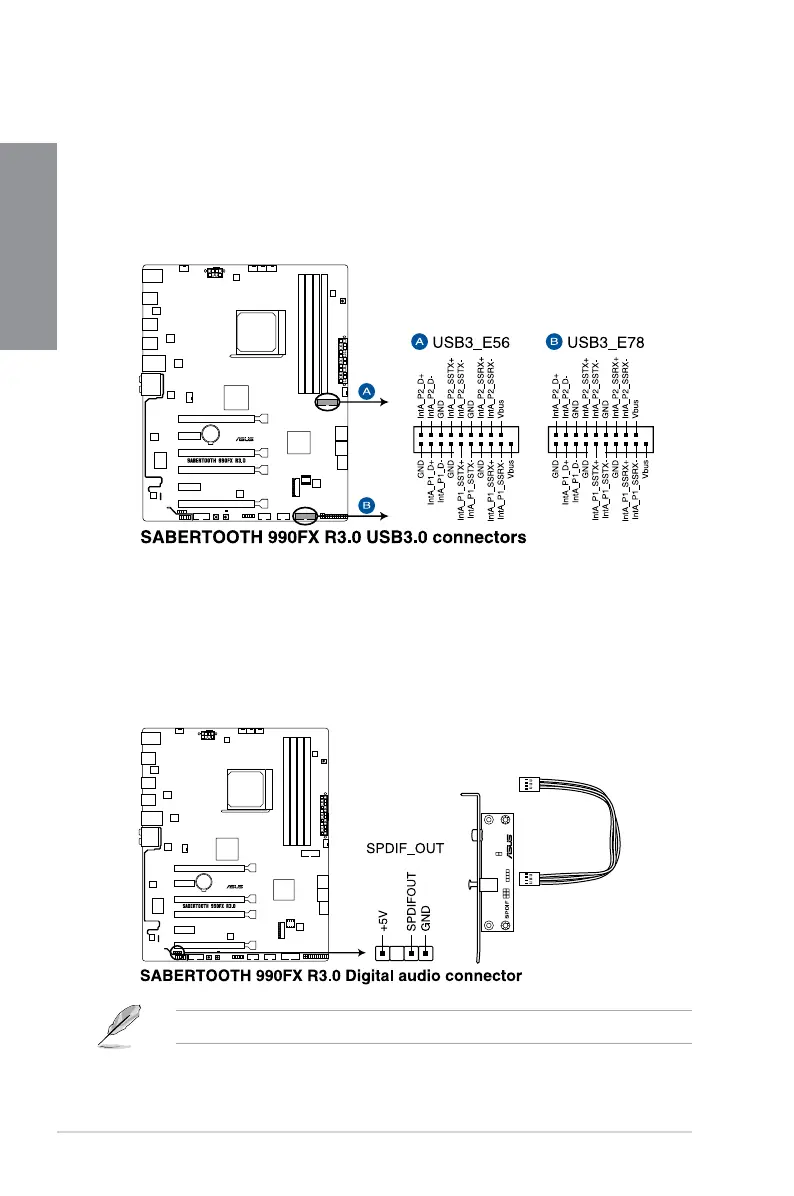

2. USB 3.0 connector (20-1 pin USB3_E56, USB3_E78)
ThisconnectorisfortheadditionalUSB3.0ports,andcomplieswiththeUSB3.0
specicationthatsupportsupto480MBpsconnectionspeed.IftheUSB3.0front
panelcableisavailablefromyoursystemchassis,withthisUSB3.0connector,you
canhaveafrontpanelUSB3.0solution.
3. Digital audio connector (4-1 pin SPDIF_OUT)
ThisconnectorisforanadditionalSony/PhilipsDigitalInterface(S/PDIF)port.Connect
theS/PDIFOutmodulecabletothisconnector,theninstallthemoduletoaslot
openingatthebackofthesystemchassis.
TheS/PDIFmoduleispurchasedseparately.
