1. Remove the center and rear belly pans from the
machine.
2. Drain the hydraulic fluid. Refer to page 4-16 for the
hydraulic fluid and filter change procedure.
3. Remove the engine as described on page 12-5 of
this manual.
4. Remove the auxiliary and drive pumps (for inspec-
tion, repair, or replacement) according to the pro-
cedures in section 11 of this manual.

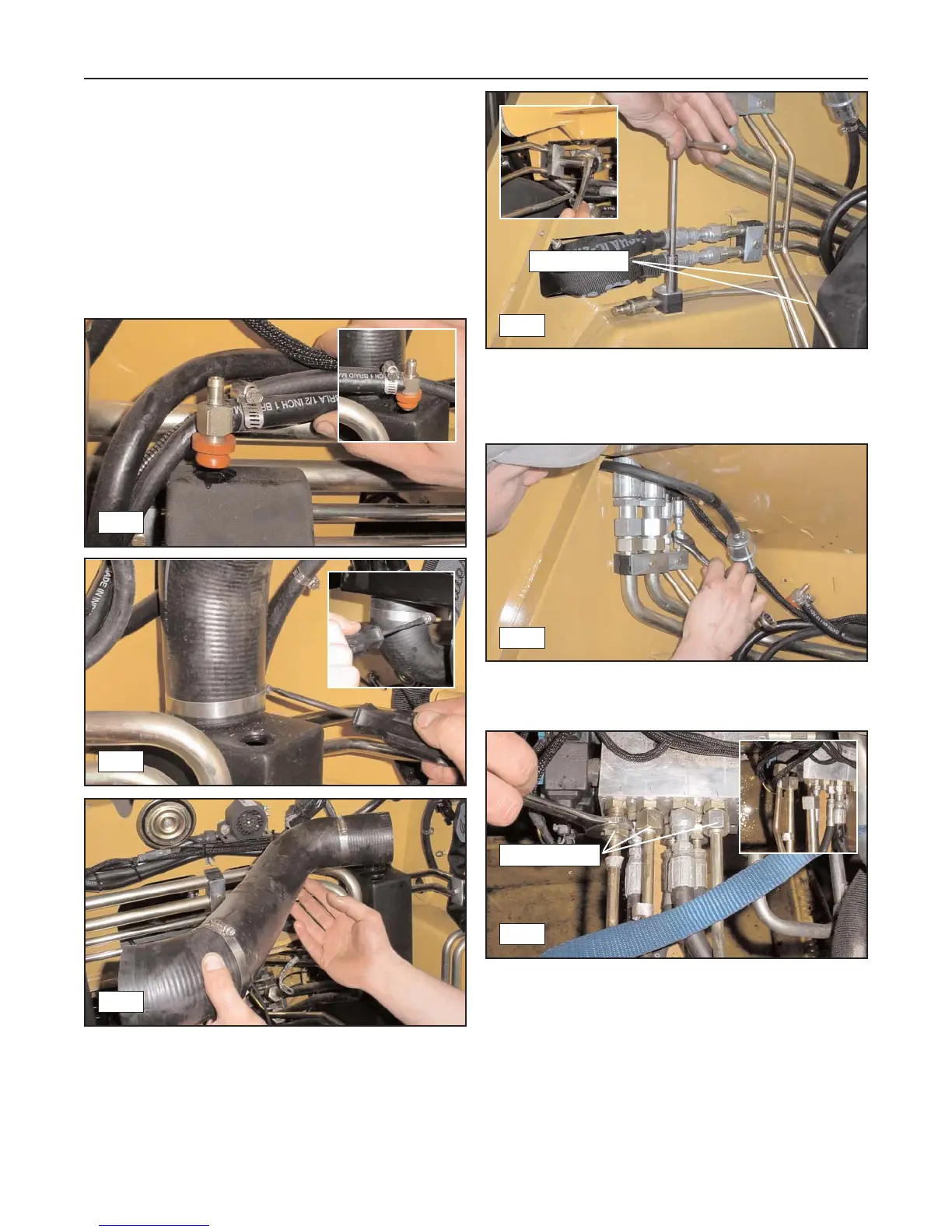

5. Disconnect the hoses and lines attached to the two
upright portions of the tank. (fig. 9-1, 9-2, 9-3)
6. Remove the clamps securing the quick attach hard
lines and the test port line that run from the pilot
generation block down the left side of the machine
to the engine compartment. (fig. 9-4)
7. Disconnect the quick attach hoses from the hard
lines (if equipped). (fig. 9-5)
8. Disconnect the quick attach and test port lines
from the pilot generation block. (fig. 9-6)
9-2
Rubber Track Loader
9. Hydraulic Reservoir
9-1
9-2
9-3
9-4
9-6
Disconnect
Disconnect
9-5
To Next Page
