ASV PT-80 - Page 67

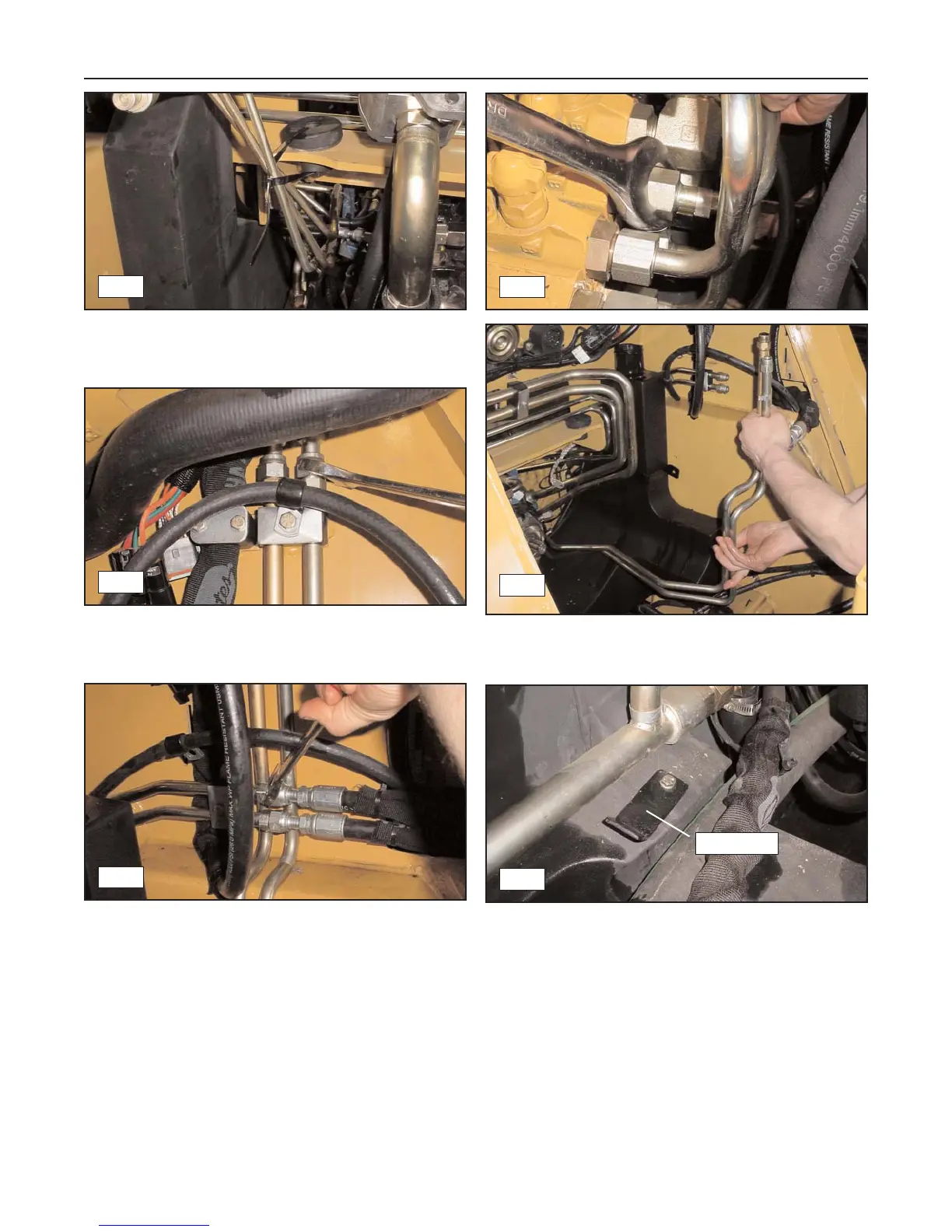

9. Gently move the hard lines out of the way to allow
for reservoir removal then zip tie them to the motor
mount to keep them secure. (fig. 9-7)
10. Disconnect the bucket cylinder hoses from the
hard lines in the upper right portion of the engine
compartment. Remove all line clamps. (fig. 9-8)
11. Disconnect the lift cylinder hoses from the hard
lines to allow the bucket cylinder lines to be
removed. (fig. 9-9)
12. Disconnect the bucket cylinder hard lines from the
lift arm control valve and then remove them from
the machine. (fig. 9-10, 9-11)
13. Remove the hose retainer or move it aside as
shown. (fig. 9-12)
9-3
Rubber Track Loader
9. Hydraulic Reservoir
9-7
9-8
9-9
9-10
9-11
9-12
Retainer
