Basic Trouble Tests
Step 4.
Go to the control unit and locate the
Voice Terminals
jack numbers that
are the same as the intercom numbers of the two voice terminals you have
been using. Switch the cords that are connected to these two
Voice Ter-
minals
jacks (see Figure 5).

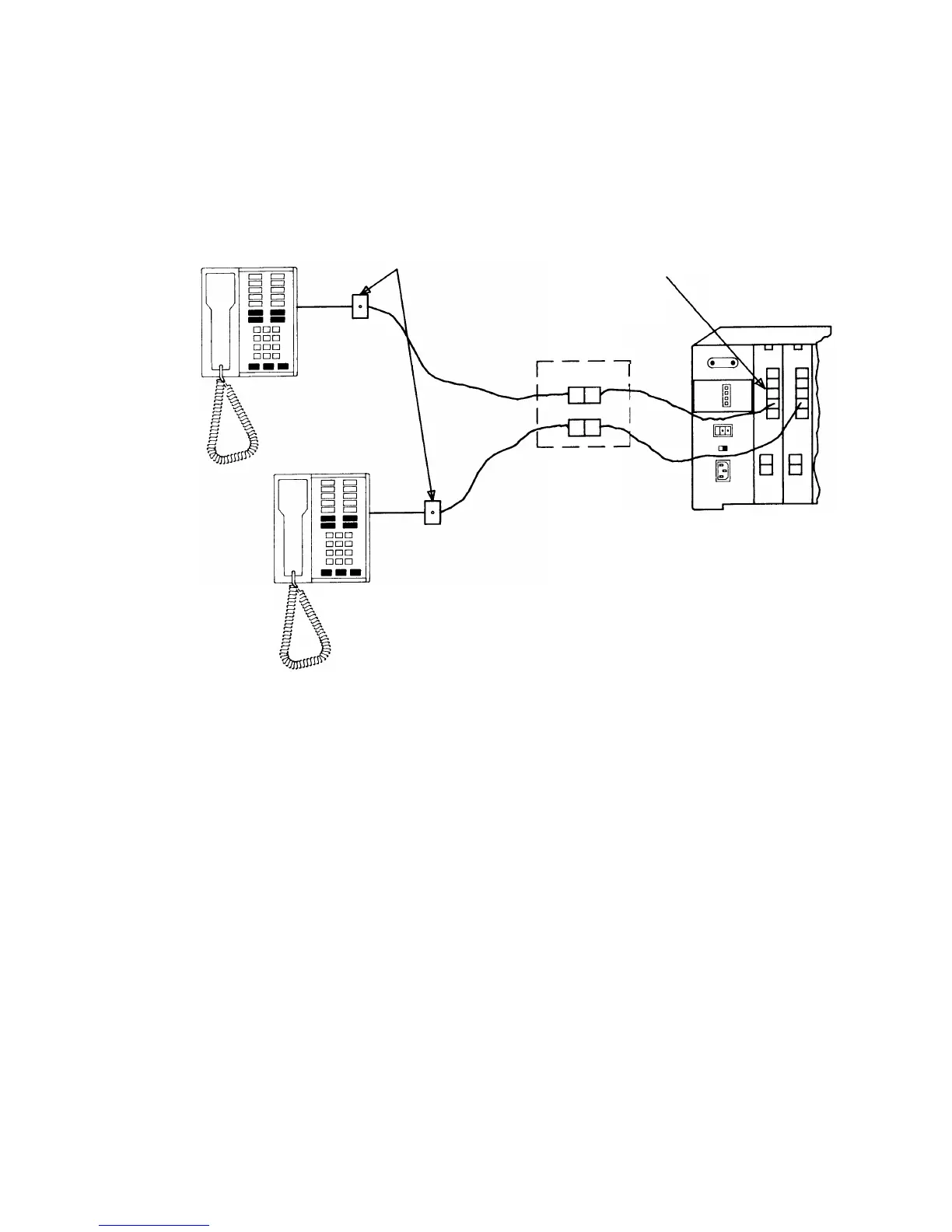

VOICE TERMINAL
(WITH TROUBLE)
103A MODULAR
JACKS
CONTROL UNIT
JACK FIELD
SWITCH
CORDS HERE
VOICE TERMINAL
(WITHOUT TROUBLE)
Figure 5—Switching Cords at the Control Unit
Page 17
20
22
Table of Contents
Table of Contents
4
How to Use this Manual
6
FIRST: Perform the Tests in the "BASIC TROUBLE TESTS
6
SECOND: Determine Whether the Trouble Is Constant or
7
Intermittent
7
THIRD: Describe the Trouble
7
Procedure
7
Selected
7
SIXTH: Replace Faulty Components
8
An Overview of Your System
8
Basic Trouble Tests
13
Tests to Determine if the Trouble Is in Your System
13
Symptom-Based Tests
17
List of Symptom-Based Tests
17
Voice Terminal Does Not Ring
17
Cannot Make an Outside Call
18
Trouble with Indicator Lights, Speaker, or Ringing
19
Some Custom Features Do Not Work
23
All Voice Terminals Have no Lights and no Dial Tone (Entire System Down)
25
Voice Terminal Rings Constantly
29
General Tests
30
If Trouble Remains
33
How to Select the Correct Procedure
34
Test Sequence
34
Trouble on One Voice Terminal
36
Test A: Voice Terminal Test
36
Test B: Control Unit Test
42
Test C: Voice Terminal Cords and Cable Test
44
Test D: 2-Line/5-Terminal Expansion Module Test
52
Trouble on more than One Voice Terminal
56
Test A: Control Unit Test
56
Test B: Modular Line Cords and Network Interface
57
Test
57
Network Interface
58
Test C: 2-Line/5-Terminal Expansion Module
68
Voice Terminals Jack Test
71
Tel. Co. Lines Test
75
Trouble on an Accessory
78
Test A: for Auxiliary Power Devices
78
Auxiliary Power Unit
78
Voice Terminal Power Supply
80
Terminal
81
Test B: for Accessories Attached to a Voice Terminal
83
Test C: for Accessories Not Attached to a Voice
84
Terminal
84
Power Failure Transfer Telephone (PFTT)
84
Music-On-Hold Equipment
88
Paging System
89
Extra-Alert Devices
92
Line-Powered Alerts
97
Maintenance Exchange Procedures
101
