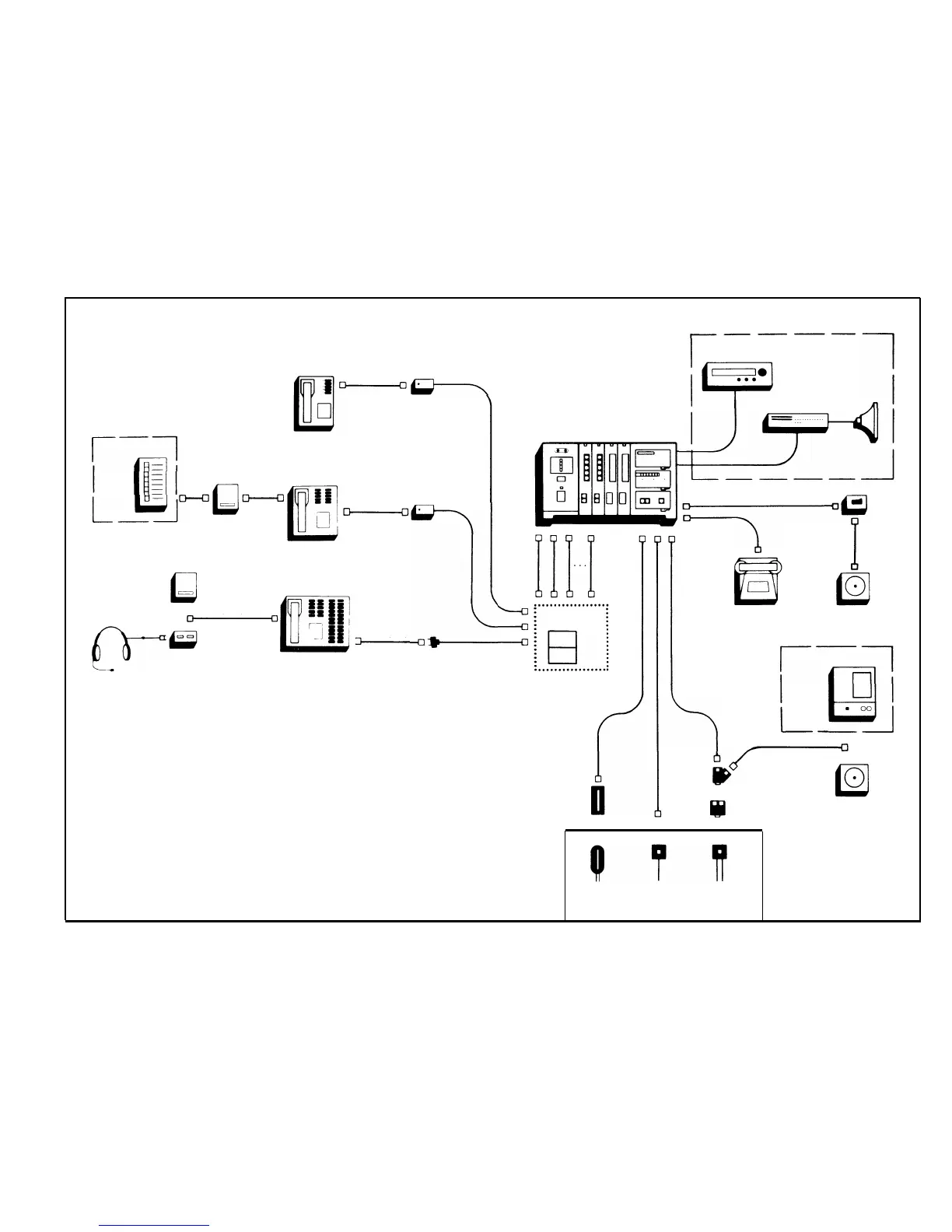

CUSTOMER PROVIDED
Cord (D8W)
CUSTOMER PROVIDED
Auto
Dialer
Terminal
Adjunct Cord
(DSAC)
D4CH
Modular
Terminal
Modular Terminal Jack
(103A)
5-BUTTON
VOICE TERMINAL
DW8SE
Cord
Modular
Terminal
Cord (D8W)
Extra Alert
Modular Line Cord (D4CH)
Control
Switch
(Optional)
Manual Telephone
Accessory and
Modem Interface
10-BUTTON
VOICE TERMINAL
Hands-Free Unit
OR
Terminal
Adjunct Cord
(D8AC)
34-BUTTON
Headset Adapter
VOICE TERMINAL
820A CONTROL UNIT
Music Source
Paging Amplifier
JUMPER
CORDS
JACK FIELD
Modular
Terminal
Cord (D8W)
Terminal
Extension Cord
(D8AF)
Headset
ANSWERING
MACHINE
OR
D4CH
Eight-
line
Adapter
MERLIN
™
COMMUNICATIONS SYSTEM
Modular
Line
Cord
Modular
(D4CH)
Line Cord
(D4CH)
POWER FAIL
TRANSFER
TELEPHONE
SET
EXTRA ALERT
(CARTRIDGE-POWERED)
Modular
CUSTOMER PROVIDED
Line Cords
(D2R)
Line
Bridging
Adapter
(267A2)
Two-Line
Adapter (267C)
LINE-POWERED
EXTRA ALERT
RJ21C: 8 lines
RJ11C: 1 line
RJ14C: 2 lines
per connector
per jack
per jack
NETWORK INTERFACES
2
4
Table of Contents
Table of Contents
4
How to Use this Manual
6
FIRST: Perform the Tests in the "BASIC TROUBLE TESTS
6
SECOND: Determine Whether the Trouble Is Constant or
7
Intermittent
7
THIRD: Describe the Trouble
7
Procedure
7
Selected
7
SIXTH: Replace Faulty Components
8
An Overview of Your System
8
Basic Trouble Tests
13
Tests to Determine if the Trouble Is in Your System
13
Symptom-Based Tests
17
List of Symptom-Based Tests
17
Voice Terminal Does Not Ring
17
Cannot Make an Outside Call
18
Trouble with Indicator Lights, Speaker, or Ringing
19
Some Custom Features Do Not Work
23
All Voice Terminals Have no Lights and no Dial Tone (Entire System Down)
25
Voice Terminal Rings Constantly
29
General Tests
30
If Trouble Remains
33
How to Select the Correct Procedure
34
Test Sequence
34
Trouble on One Voice Terminal
36
Test A: Voice Terminal Test
36
Test B: Control Unit Test
42
Test C: Voice Terminal Cords and Cable Test
44
Test D: 2-Line/5-Terminal Expansion Module Test
52
Trouble on more than One Voice Terminal
56
Test A: Control Unit Test
56
Test B: Modular Line Cords and Network Interface
57
Test
57
Network Interface
58
Test C: 2-Line/5-Terminal Expansion Module
68
Voice Terminals Jack Test
71
Tel. Co. Lines Test
75
Trouble on an Accessory
78
Test A: for Auxiliary Power Devices
78
Auxiliary Power Unit
78
Voice Terminal Power Supply
80
Terminal
81
Test B: for Accessories Attached to a Voice Terminal
83
Test C: for Accessories Not Attached to a Voice
84
Terminal
84
Power Failure Transfer Telephone (PFTT)
84
Music-On-Hold Equipment
88
Paging System
89
Extra-Alert Devices
92
Line-Powered Alerts
97
Maintenance Exchange Procedures
101
