Trouble on One Voice Terminal
Step 7.
At the group of Voice Terminals jacks that do not have terminal cords
connected to them (these are the jacks with the faceplate numbers of the
expansion module with no trouble), connect a modular terminal cord to the
jack that is on the same level as the terminal cord connected in Step 6.
For example, if the terminal cord in Step 6 was connected to
Voice
Terminals
jack 14, then the terminal cord in this step would be con-
nected to
Voice Terminals
jack 19 (see Figure 23).
Tel Co. Lines

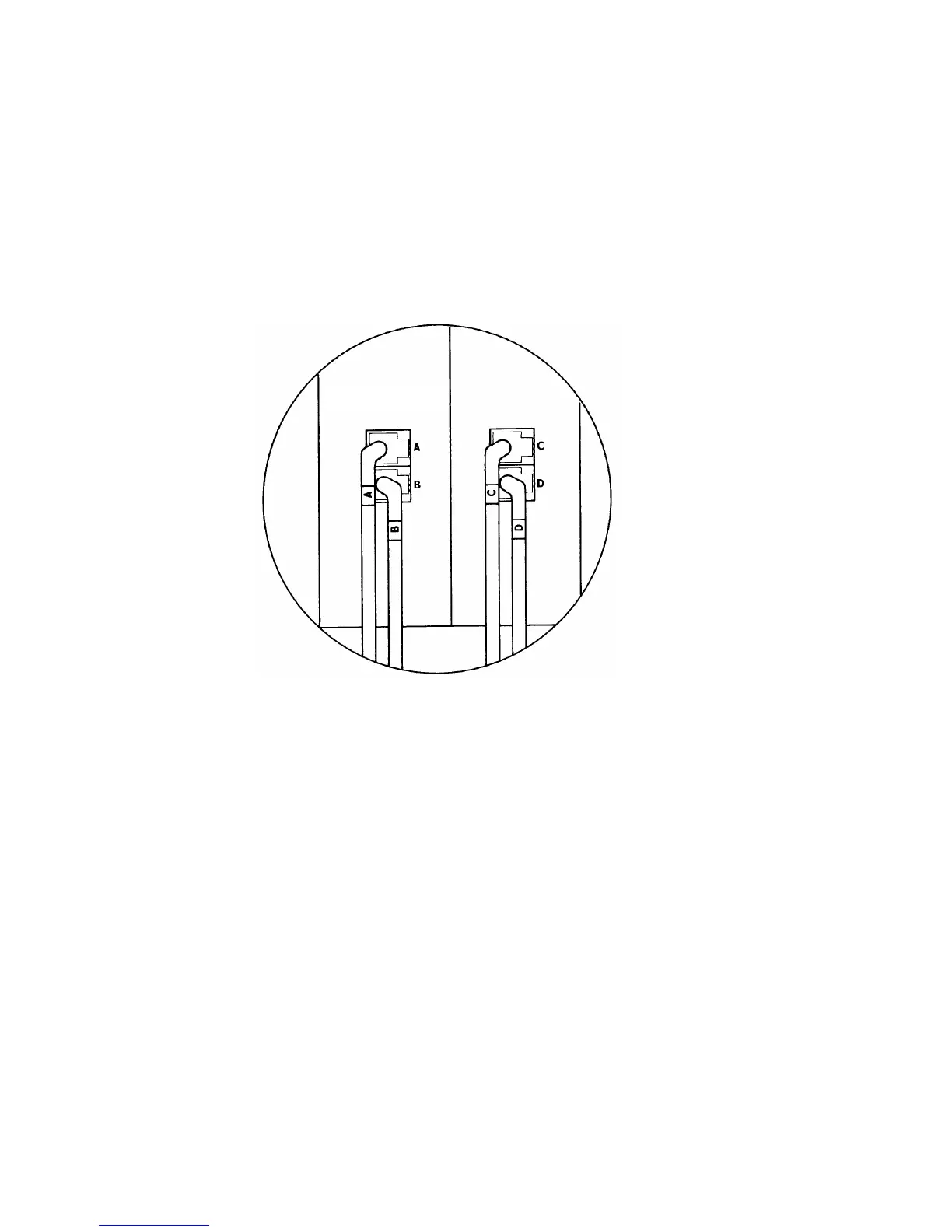

Figure 22—Reconnecting Modular Line Cords
Page 50
