Set Aluminum Casting on its back, invert Motherboard
and gently lower into Casting.
NOTE
CPU PCB must fit into guides in the Aluminum Casting
Install Lower Shield with eight screws (no. 6 32x3/8)
Install Module Assembly in Bottom Cover
2. Keyboard Installation, refer to Figure 5-19
Plug Speaker cable into Motherboard (no polarity) and
set Speaker in Bottom Cover
Plug Keyboard ribbon cable into connector on Motherboard
Gently lower Keyboard over the Power-ON LED and guide
posts on Aluminium Casting

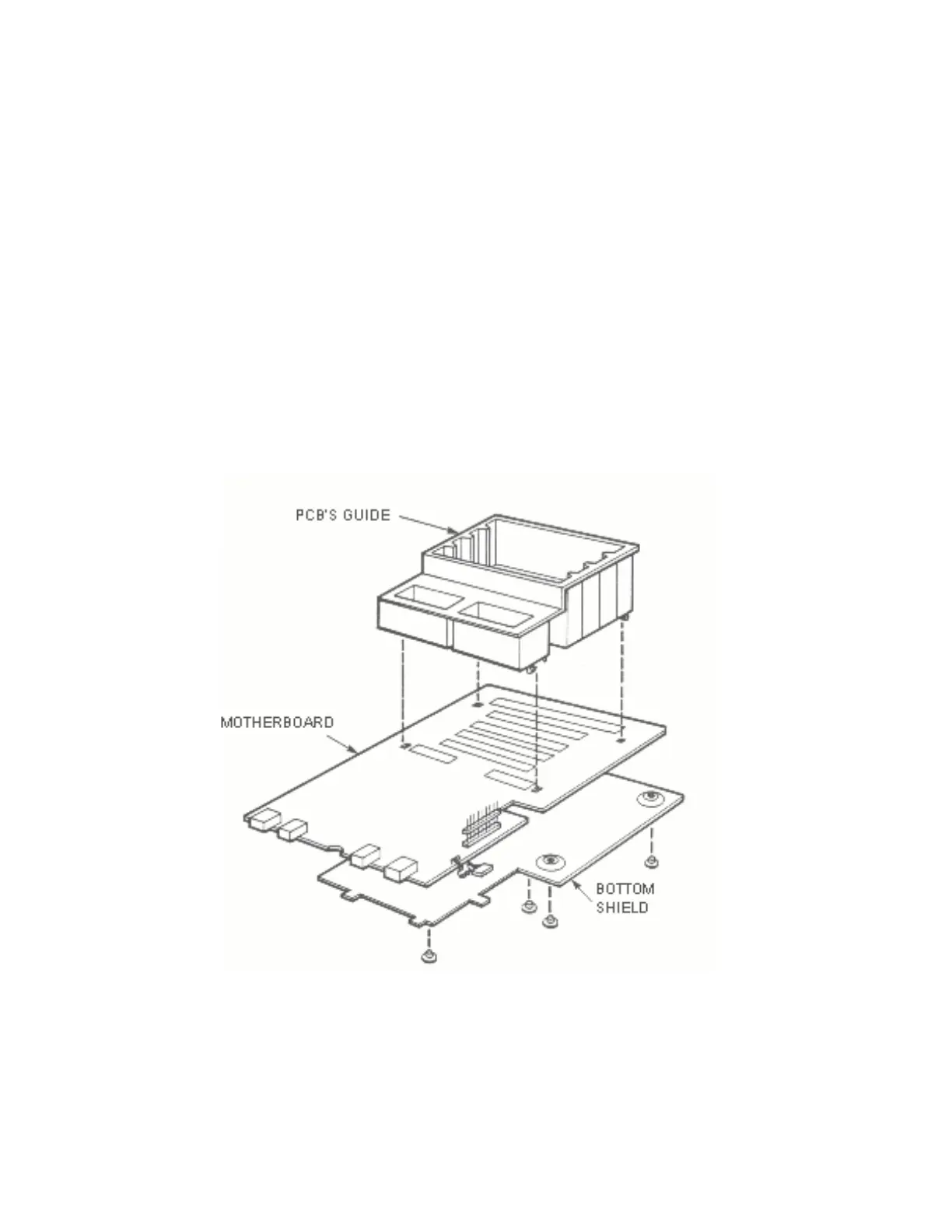

Figure 5-28. 800 Console, Motherboard Removal
ATARI Personal Computers 5-42
