24
CtrL
01.AC
The 16C controllerl supports both PID and on/off control. If the controller is equipped with two standard out-
puts, the outputs can be configured for two different types of control. The parameters used to customize the
control operation are in the Ctrl (control) menu which is available only when the security access level is set
to CnF9 (configuration) or FACt (factory).
If both outputs are configured for use with alarms or turned off (using the output 1 type and output 2 type
parameters), then this Ctrl (control) menu will not be displayed.
Display Parameter Available Selections
01.ty
Output 1 Type
Pid - PID control of Output 1
on.of
Off - Output 1 set to OFF
ALr - Alarm settings on Output 1
02.ty
Output 2 Type
Pid - PID control of Output 2
on.of
Off - Output 2 set to OFF
ALr - Alarm settings on Output 2

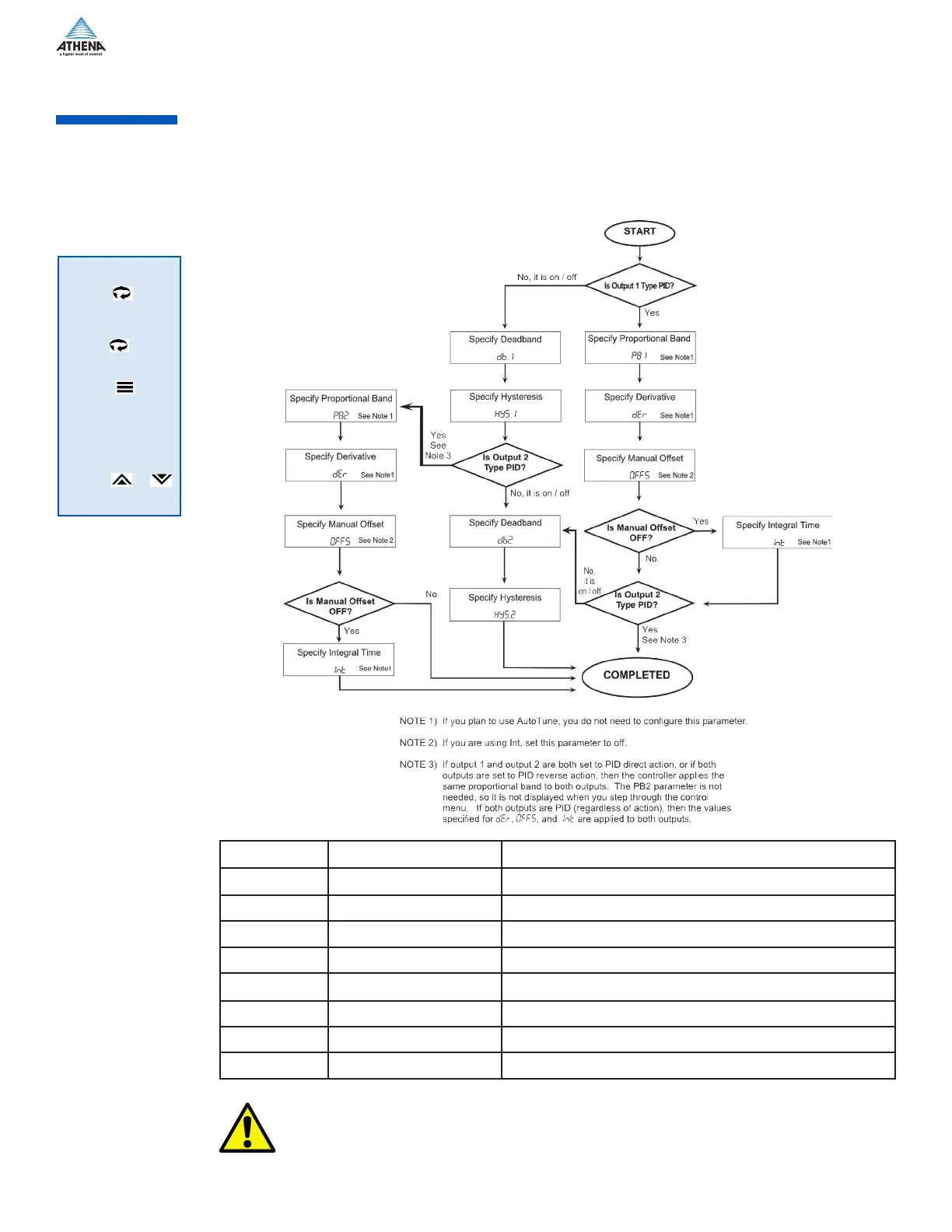

the above table shows the options that first appear in the OUTPUT menu. Once the type of
control is selected, other options / selections are made available in the corresponding
menu. For the sake of clarity, these different selections are shown in the following examples of PID
options and
