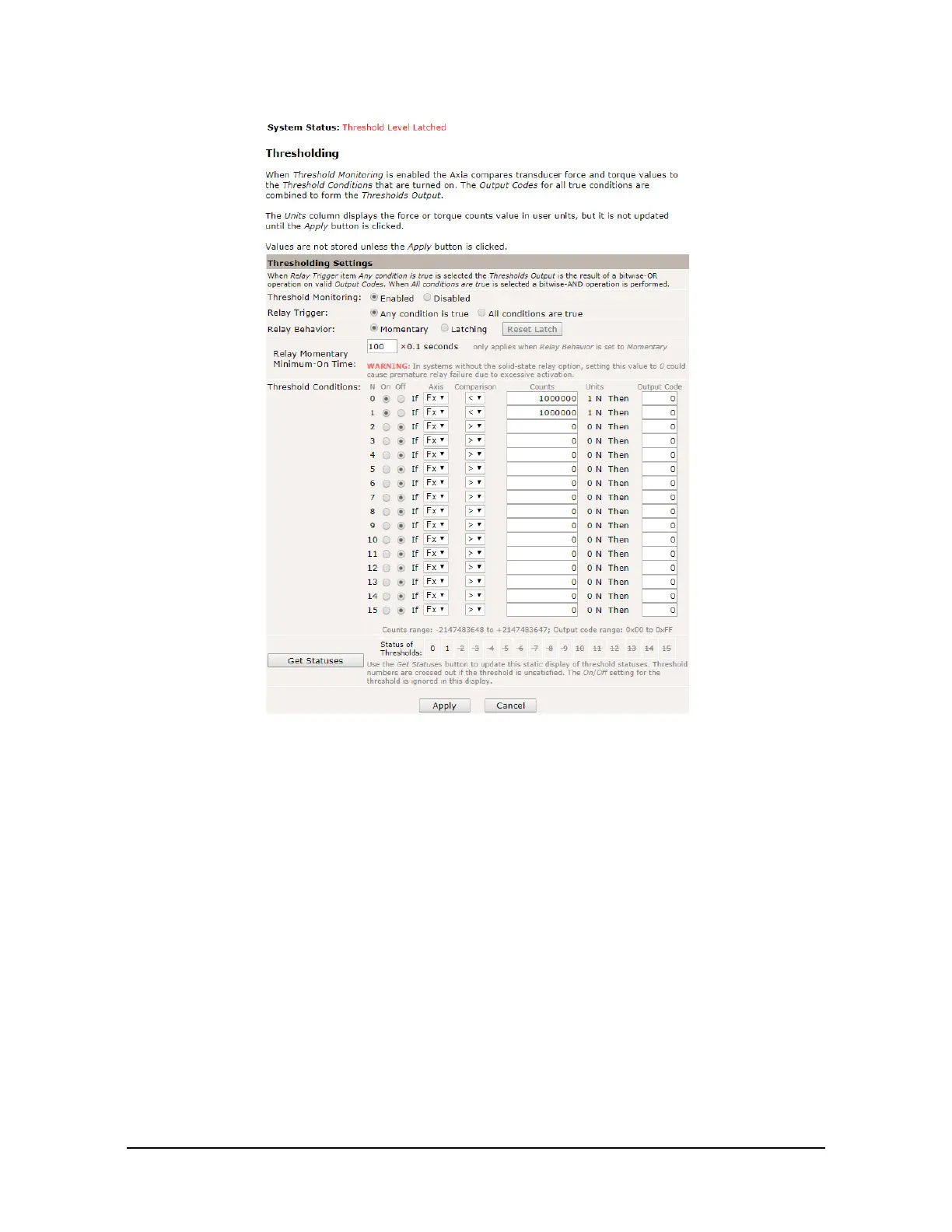

Figure 6.6—Thresholding
Threshold Monitoring: The user can enable or disable threshold monitoring by clicking the radial button.
Relay Behavior: The user can select if the output code is calculated by bitwise OR’ing (trigger if any
condition is true) or bitwise AND’ing (trigger only if ALL conditions are true).
Reset Latch button: Clears any threshold latching.
Relay Momentary The user may select in how many tenths of a second ( 0 to 25.5 seconds) that the
Minimum-On Time: the rmware should wait in momentary mode before automatically resetting the
monitor latch condition.
In case of any enabled threshold condition becoming true, the following occurs:
• The threshold’s output code is updated.
• Bit 16 of the status code (Table 4.7) is set
Bit 16 holds these states until the user clicks the Reset Latch button on the Thresholding screen.
