Manual, F/T Sensor, Ethernet Axia
Document #9610-05-Ethernet Axia-09
Pinnacle Park • 1031 Goodworth Drive • Apex, NC 27539 • Tel:+1 919.772.0115 • Fax:+1 919.772.8259 • www.ati-ia.com
55
• If the demo is unable to make contact with the Ethernet Axia sensor, the force and torque values
will display zero and the Force units and other conguration-related items will each display
a question mark.

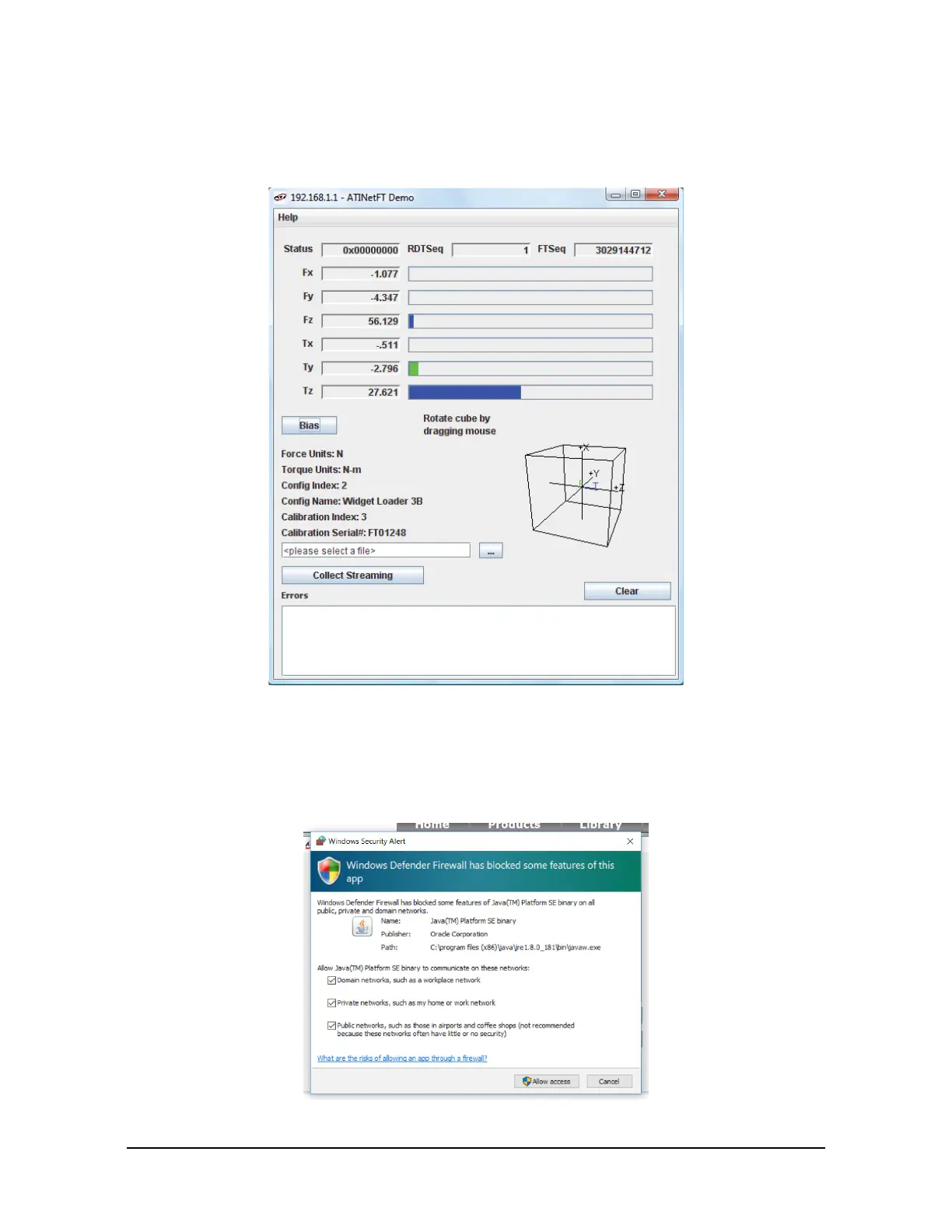

Figure 7.3—Java
®
Demo Application
The rst time the demo is used, the program may trigger a rewall alert. If this occurs with a Windows
®
7/8/10 operating system, select the check boxes to give permission for the network to communicate with
the sensor, and click the Allow access button (refer to Figure 7.4). If this occurs with a Windows
®
Vista
operating system, click the Unblock button (refer to Figure 7.5). If the network is still not connecting with
the demo program, users should contact their IT department for assistance.
Figure 7.4— Windows 7/8/10 Firewall Alert
