2.7 胶膜架型式
FM 型式胶膜架
这款胶模架(图 2.8)可以调整胶膜作用在包装物上的
束紧力。
包括一个橡胶面的滚筒(1)和滚筒(2)，一个机械煞车。
手轮(3)是用来调整机械煞车的动作，进而控制胶
膜的束紧力。
将胶膜架降至最低位置比较容易换装胶膜。
按下紧急停止按钮停止机器。
将胶膜卷 (4) 放入轴心 (5) 内。
依照穿膜方向告示板 A 在滚筒之间，并注意胶膜左
图 A 方向性，虚线代表有黏性的一面(内黏和外黏)
依序穿过胶膜。
松开紧急停止按钮，按下复归键重新启动机器。
2.7 ROLL-HOLDER CARRIAGES
FM roll-holder carriage
With this carriage version, the application tension of the
film on the pallet can be adjusted.
The carriage FM is composed of a rubber-coated roller
(1) and a roller (2) with mechanical brake.
The knob (3) is used to adjust the action of the brake
and, consequently, the tension of the film.
Upon starting, the film must be loaded onto the carriage
as follows.
Put the carriage into the Down position to make fitting
the roll easier.
Press the emergency button to stop the machine.
Push the roll (4) onto the centre pin (5).
Insert the film between the rollers following the path
indicated in figure A, the symbol with the triangles
identifies the side of the film to which the bonding agent
(if present) is applied.
Diagram A is an adhesive sticker also affixed to the
carriage.
Reset the emergency button to restart the machine.
4

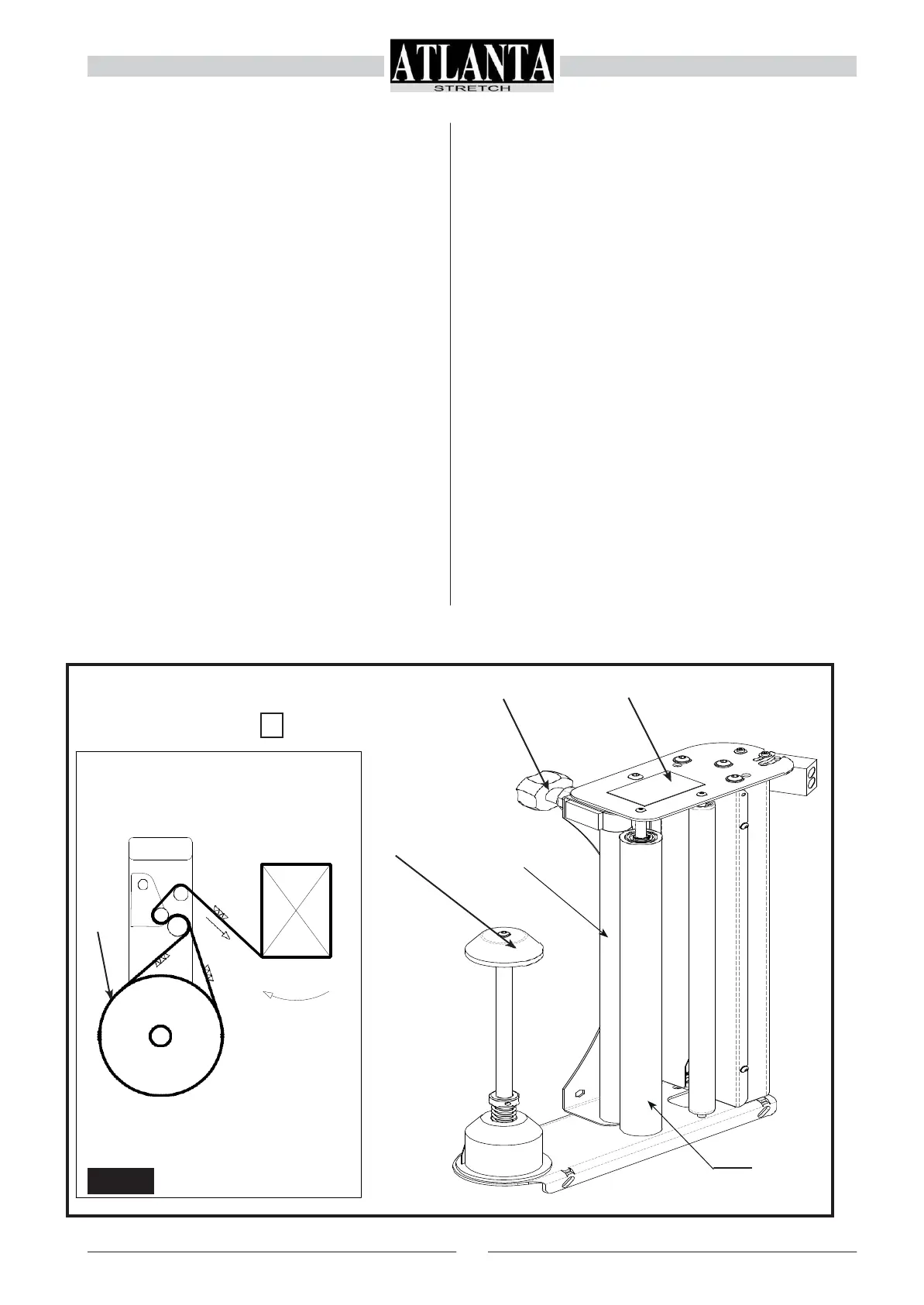

Fig. 2.8
3
A
A
5
2
1
