Atlanta SFERA - SPARE PARTS CATALOGUE

Pre-stretch carriage units
预拉伸胶膜架组件
导向轮组件
Product reading
arm unit
基本主体组件
Base units
8 零件目录
基本主体组件
8 SPARE PARTS CATALOGUE
BASE UNIT
Base 10010012501
Base
10010012501
Chassis
10010011999
ChassIs
10010011999
Carter
10010012117
Carter
10010012117
Idle wheel
10010001076
Idle wheel
10010001076
Steering arm
10010001084
Steering arm
10010001084
Safety bumper
10010000410
Safety bumper
10010000410
Arm column h=2000
10010001717
Arm column h=2000
10010001717
Arm column h=2200
10010011626
Arm column h=2200
10010011626
Arm column h=2400
10010002990
Arm column h=2400
10010002990
Driving wheel
10010001092
Driving wheel
10010001092
Electric panel
10020011300
Electric panel
10020011300
Battery
10020012680
Battery
10020012680
预拉伸胶膜架组件
FM carriage
10010012370
FE carriage
10010008516
FE carriage
10000000280
PRS carriage
10010012350
PS carriage
10010012351
Structure (PRS - PS)
10010008620
Film cutting unit 10010007677
导向轮组件
Arm with 300 wheel 10010002136
Arm with 400 wheel 10010002139
PRE-STRETCh CARRIAGE UNITS
FM carriage 10010012370
FE carriage 10010008516
Structure FE 10000000280
PRS carriage 10010012350
PS carriage 10010012351
Structure (PRS - PS) 10010008620
Film cutting unit 10010007677
PRODUCT READING ARM UNIT
Arm with 300 wheel 10010002136
Arm with 400 wheel 10010002139

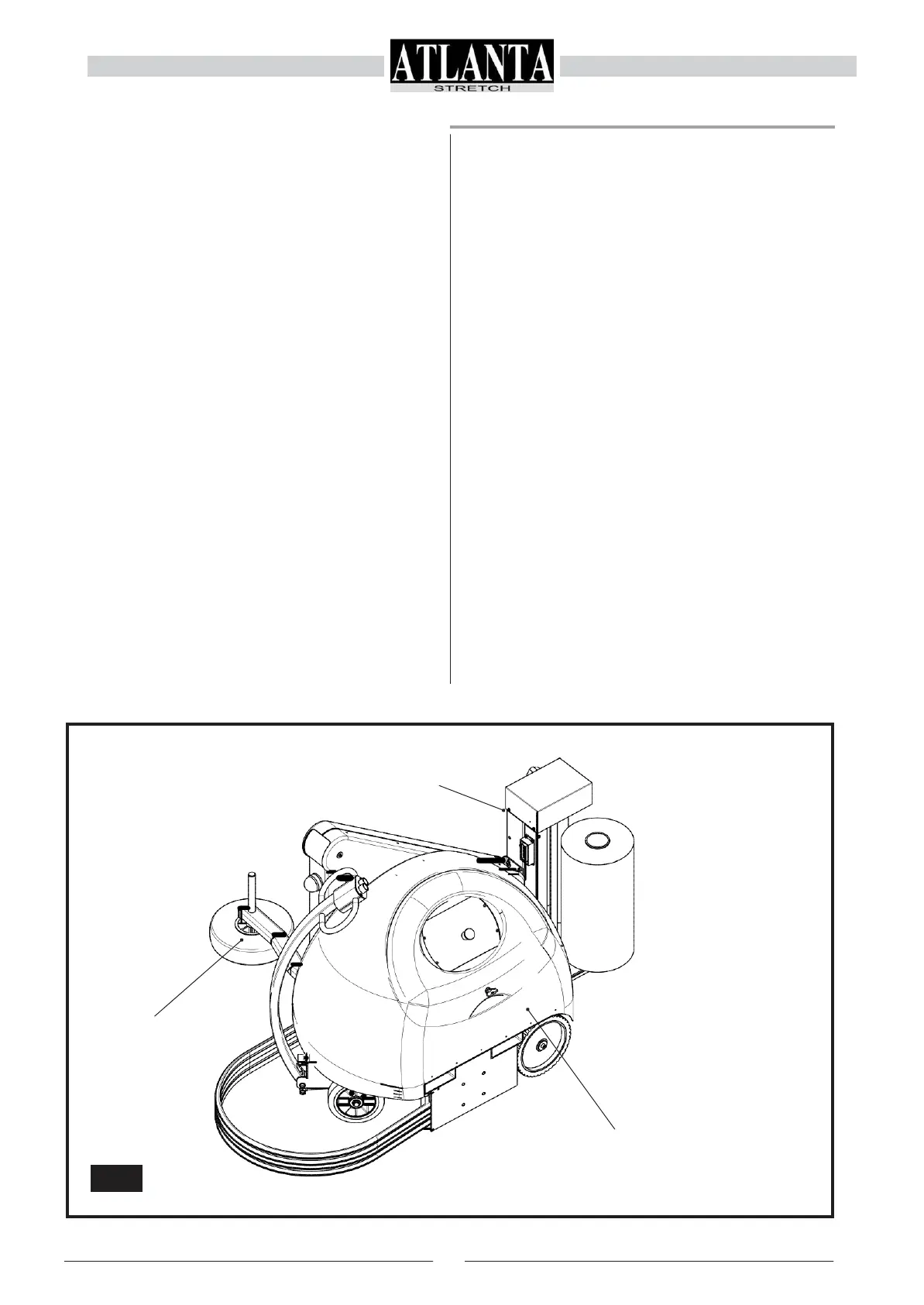

Fig. 8.1
