Atlantic 024306 - Description of the Equipment; Packing; Defi Nitions; Optional Equipment

- 6 -
 Description of the equipment
►
Packing
• 1 package: Outdoor unit.
• 1 package: Hydraulic unit and outside temperature
sensor.
►
Defi nitions
- Split: The heat pump consists of two elements
(an outdoor unit to be installed outdoors and a hydraulic
unit to be installed inside the dwelling).
- Air/water: The surrounding air is the energy source.
This energy is transmitted to the heating circuit water
by the heat pump.
- Inverter: The fan and compressor speeds are
modulated according to the heating requirements.
This technology enables you to save on energy and
operate on a single-phase power supply, whatever
the heat pump's output, by avoiding pulling signifi cant
amounts of current at start-up.
- COP (Coeffi cient of Performance): This is the
relationship between the energy transmitted to the
heating circuit and consumed electrical energy.

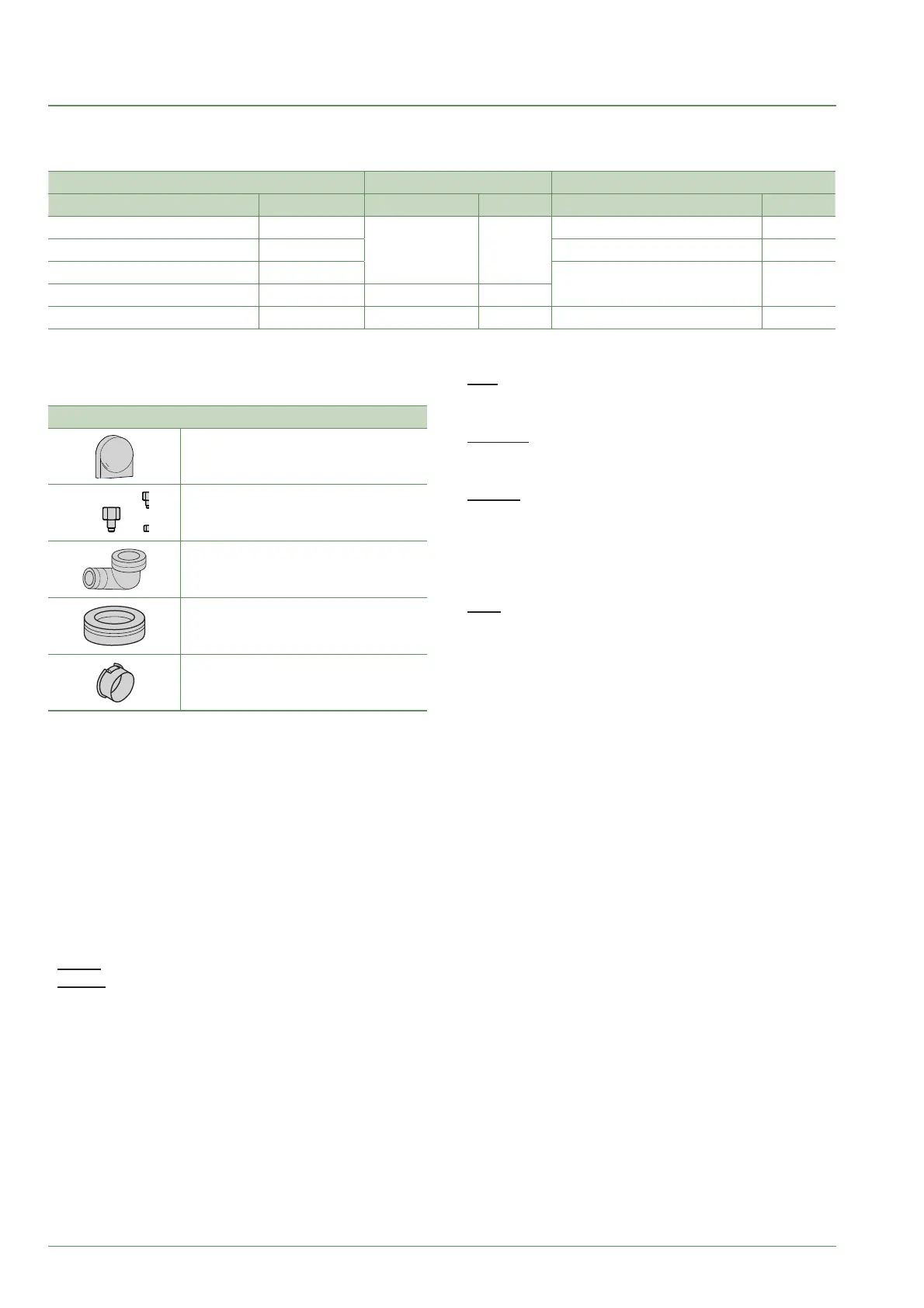

Accessories
Outdoor temperature sensor
Adapter 1/2”-5/8” and/or 1/4”-3/8”
(1)
Nut 1/2” and/or 1/4”
(1)
Elbow
(2)
Plug
(2)
X 3
Cable grommet
(2)
X2
1
Only models 3 / 5 / 6 et 8
2
Only models 10
Alfea Extensa A.I. R32 / INSTALLATION / 2114 - EN
►
Optional equipment
• 2nd circuit kit (code 570629 (074011 + 075311))
for connecting 2 heating circuits.
• 6 kW backup relay kit (code 075327)
for switching to HP electrical backup of 3 to 6 kW.
• Boiler connection kit (code 073990)
for connecting a boiler to the heat pump.
• DHW expansion kit (code 075122)
• Simplifi x :
1 area : right - code 075530 / left - code 075532
2 area : right - code 075531 / left - code 075533)
• Condensate Tray (models 5/6 - code 074049 /
modele 8 - code 074126).
• Wireless room sensor A59 (code 074208) for
correcting the ambient temperature.
• Wireless room sensor A75 (code 074213),
Wireless room sensor A78 (code 074214)
for correcting the ambient temperature and
programming the heat pump.
• Cooling kit (code 075329).
• Anti-vibration blocks (code 523574).
• White PVC fl oor support (ref. 809532) or
Black rubber fl oor support (ref. 809536).
►
Operating Range
This heat pump provides:
- Heating in winter,
- The management of electrical backups, for extra
heating on the coldest days,
or
- Installation with boiler connection* for extra heating on
the coldest days,
- Management of two heating circuits*,
- Production of domestic hot water.
- Cooling in summer* (for underfl oor heating-cooling
system or fan-convectors).
*: These options require the use of additional kits
(see chapter "Required accessory" or "Optional equipment").
Packing contents list
Heat Pump Outdoor unit Hydraulic unit
Model Export code Reference Code Reference Code
Alféa Extensa Duo A.I. 3 R32 526158
WOYA060KLT 700227
Alféa Extensa Duo A.I. 3 R32 24306
Alféa Extensa Duo A.I. 5 R32 526159 Alféa Extensa Duo A.I. 5 R32 24307
Alféa Extensa Duo A.I. 6 R32 526160
Alféa Extensa Duo A.I. 6-8 R32 24308
Alféa Extensa Duo A.I. 8 R32 526161 WOYA080KLT 700228
Alféa Extensa Duo A.I. 10 R32 526162 WOYA100KLT 700229 Alféa Extensa Duo A.I. 10 R32 24309
