2 Introduction
GA 15, GA 18, GA 22 and GA 26 are single- stage, oil injected screw compressors driven by an electric
motor. The compressors are air-cooled. The compressors are enclosed in a sound insulating bodywork.
The compressors are controlled by an Elektronikon
®
controller, fitted to the door on the front side. The
cabinet with electric equipment is located behind the door panel.
The compressors are available in two versions: the floor mounted version and the receiver mounted
version. Each of these versions can be supplied without integrated air dryer (the Pack version) or with
integrated air dryer (the Full Feature version).
GA Pack

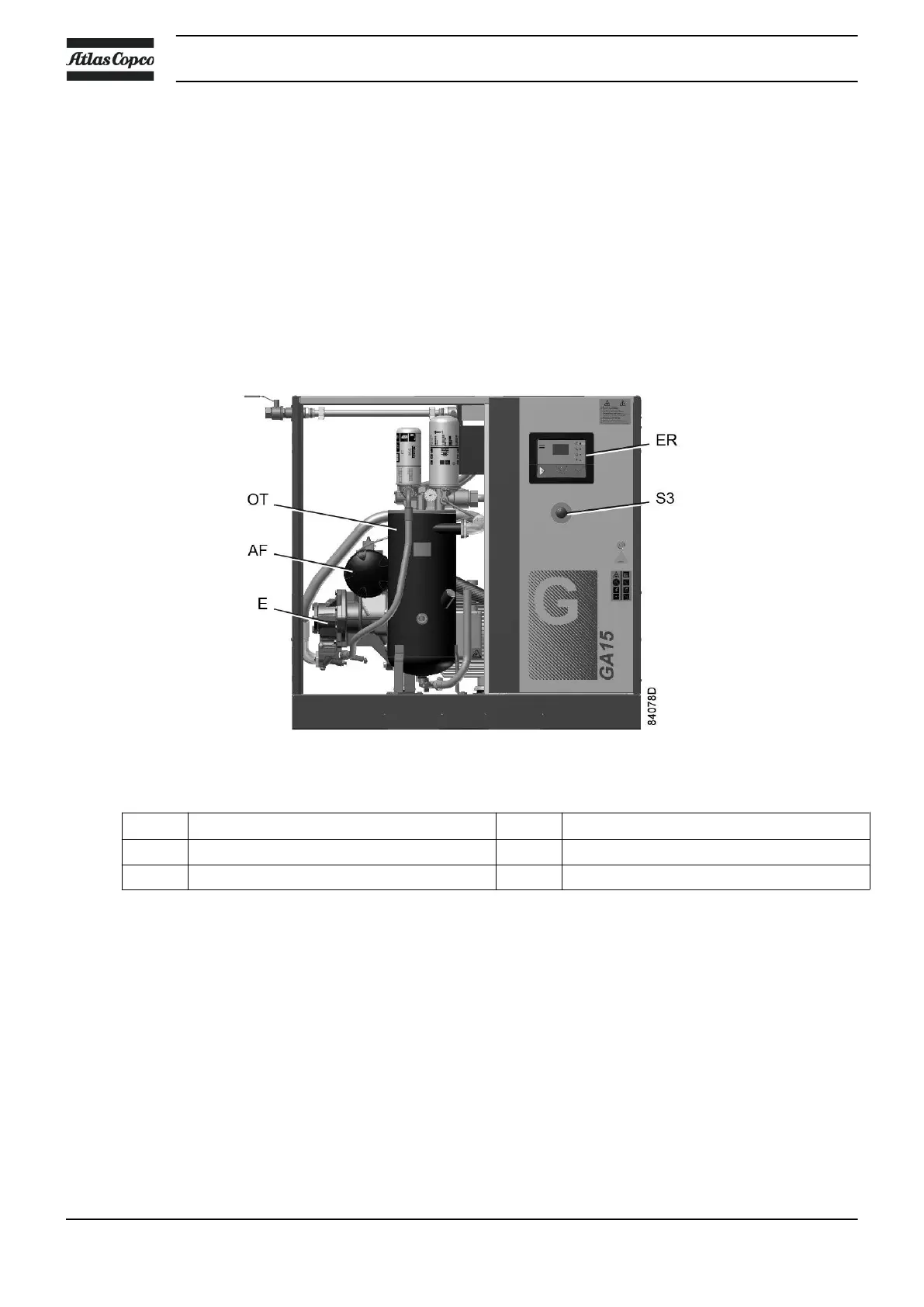

Front view GA 15 P, floor mounted
ER
Elektronikon
®
controller
OT Oil separator tank
S3 Emergency stop button AF Air filter
E Compressor element
On the receiver mounted version, the compressor is mounted on a large air receiver (AR) of 500 l (125 gal,
4.5 cu.ft):
Instruction book
12 2920 7140 90
