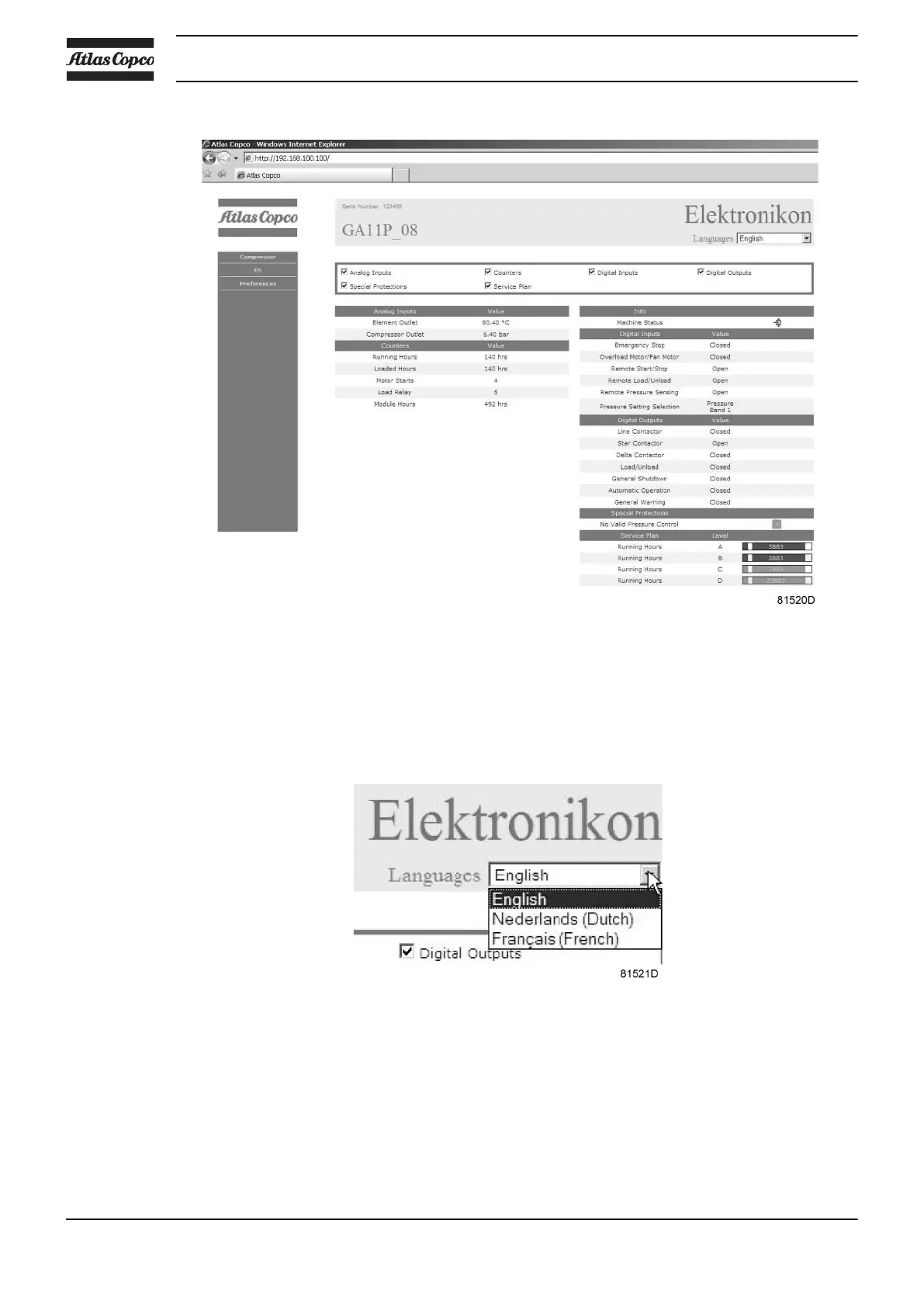

Screen shot (example!)
Navigation and options
• The banner shows the compressor type and the language selector. In this example, three languages are
available on the controller.
Compressor settings
All compressor settings can be displayed or hidden. Put a check mark in front of each point of interest and
it will be displayed. Only the machine status is fixed and can not be removed from the main screen.
Analog inputs
Lists all current analog input values. The measurement units can be changed in the preference button from
the navigation menu.
Instruction book
68 2920 7109 23
