Target Angle Limits
With Target angle limits set, it is possible to monitor if the nut is turned to
the desired angle during the tightening.
Rotate Strategy
The rotate strategy is primarily a strategy for testing and demo purposes.
When letting the tool rotate in free air, it will turn the socket to the specified
angle using the lowest torque possible.
Target Torque Limits
By setting the Target torque limits is it possible to discard a tightening,
should the torque result not fall within the specified torque limits. A Torque
set too high can cause the bolt to deform or break as a result of passing the
yield point. Not enough torque can end up with the clamping force not being
enough to withstand the forces for which the joint is designed.
Start Stop

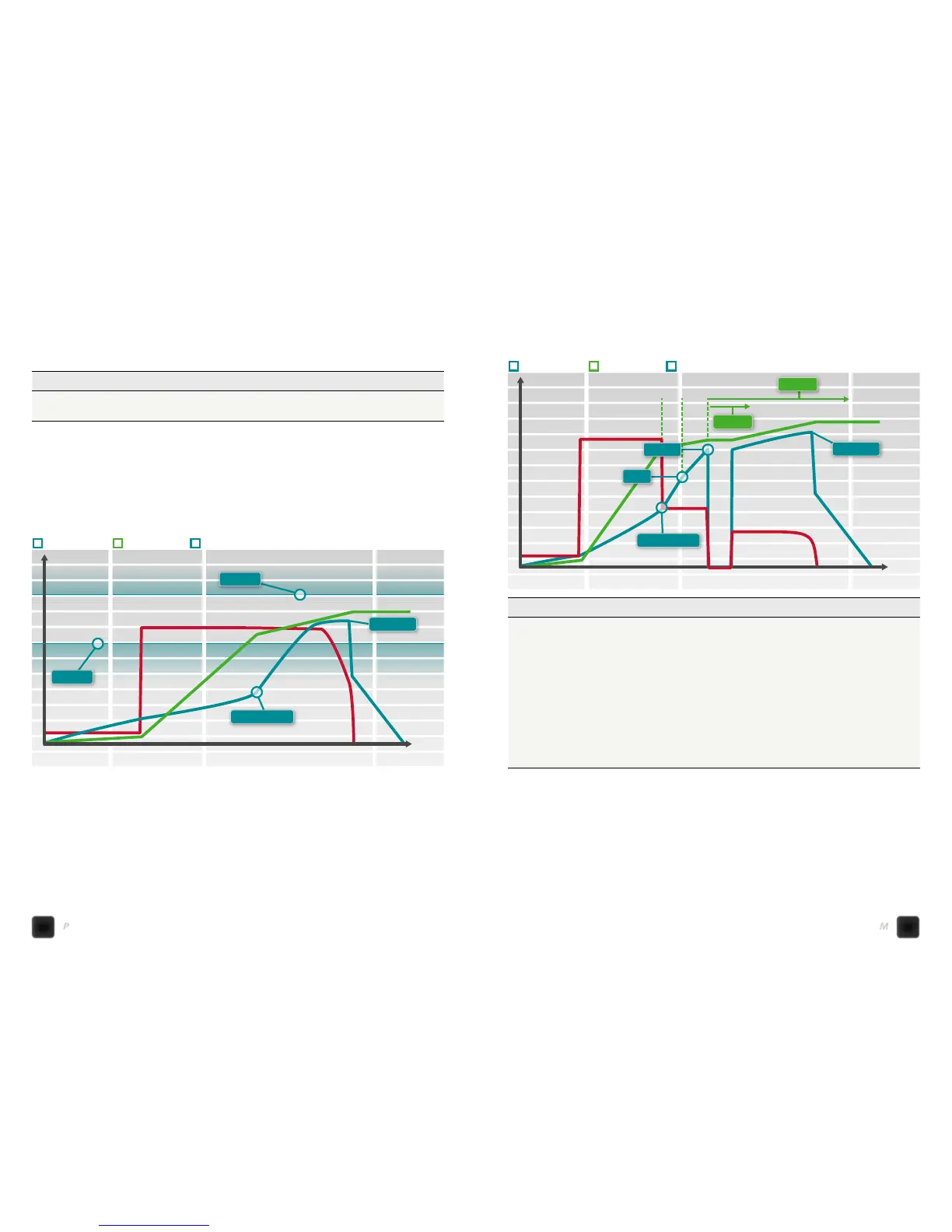

TIME
TORQUE/TIME ANGLE/TIME SPEED/TIME
Rundown Tightening
Target Torque
Angle max
Angle min
Torque
First target
Rundown Complete
Parameter Description Default Value
Target speed Target speed for the Rotate Strategy
Target angle Angle to turn the spindle 360°
Parameter Description Default Value
Angle limits Choose the section of the tightening in degrees, where to
monitor the angle.
Off: No limits are checked.
From Rundown complete: The monitoring window is set from
when the Rundown complete torque is reached.
From Torque: The monitoring window is set from when the
specified torque value is reached. Torque must be greater than
First torque.
From First target: The monitoring is set from when First target
is reached. This option is not available if TurboTight is chosen.
Target speed
<From torque> Torque value from where angle limits are set Target speed
Angle min Angle value for lower angle limit 90°
Angle max Angle value for upper angle limit 720°
Start Stop
TIME
TORQUE/TIME ANGLE/TIME SPEED/TIME
Rundown Tightening
Target Torque
Max Torque
Rundown Complete
Min Torque
