245

8025I–AVR–02/09

ATmega48P/88P/168P/328P

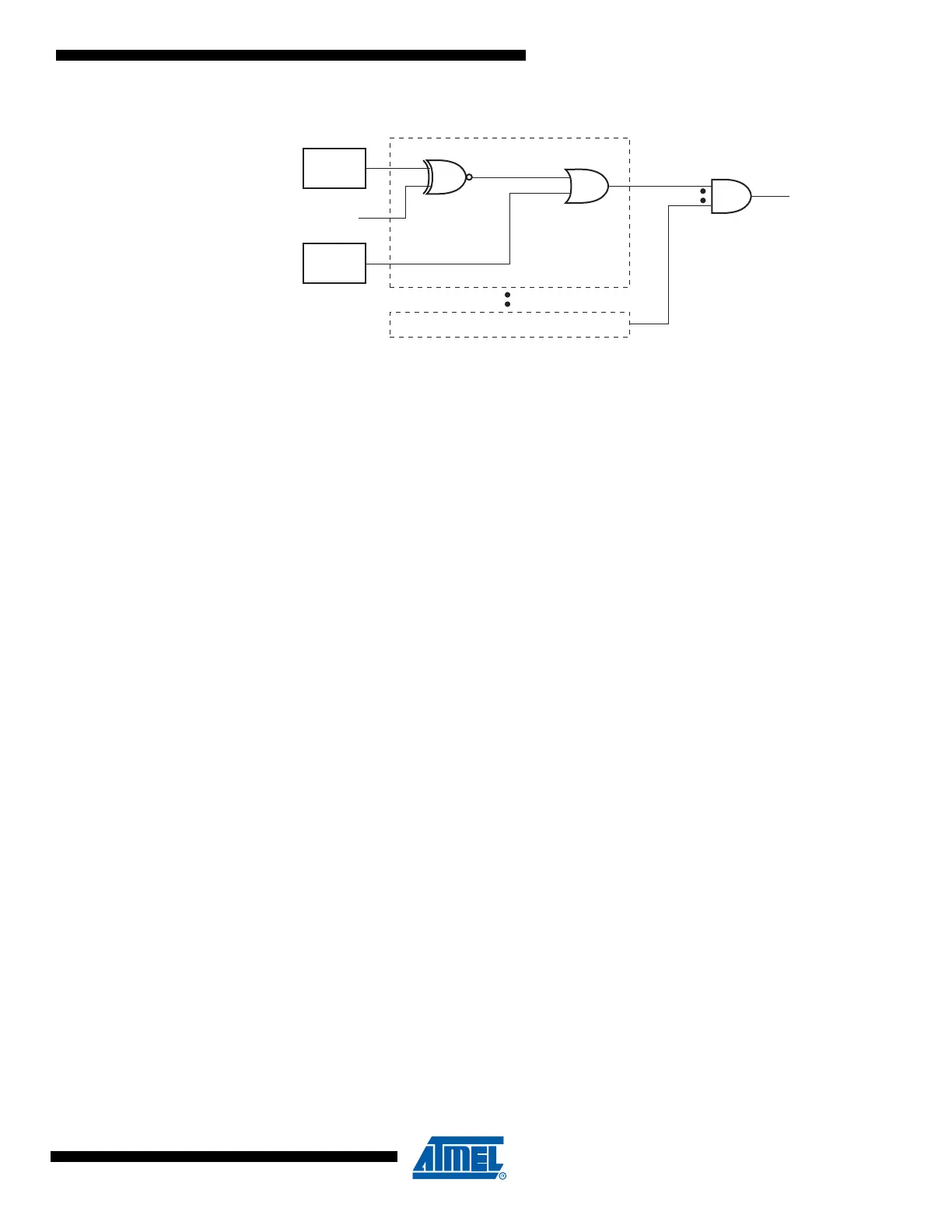

Figure 19-22. TWI Address Match Logic, Block Diagram

• Bit 0 – Res: Reserved Bit

This bit is an unused bit in the ATmega48P/88P/168P/328P, and will always read as zero.

Address

Match

Address Bit Comparator 0

Address Bit Comparator 6..1

TWAR0

TWAMR0

Address

Bit 0

Default Chapter1
