Atmel ATmega48PV User Manual

329
8025I–AVR–02/09
ATmega48P/88P/168P/328P
27.1 ATmega48P Typical Characteristics
27.1.1 Active Supply Current

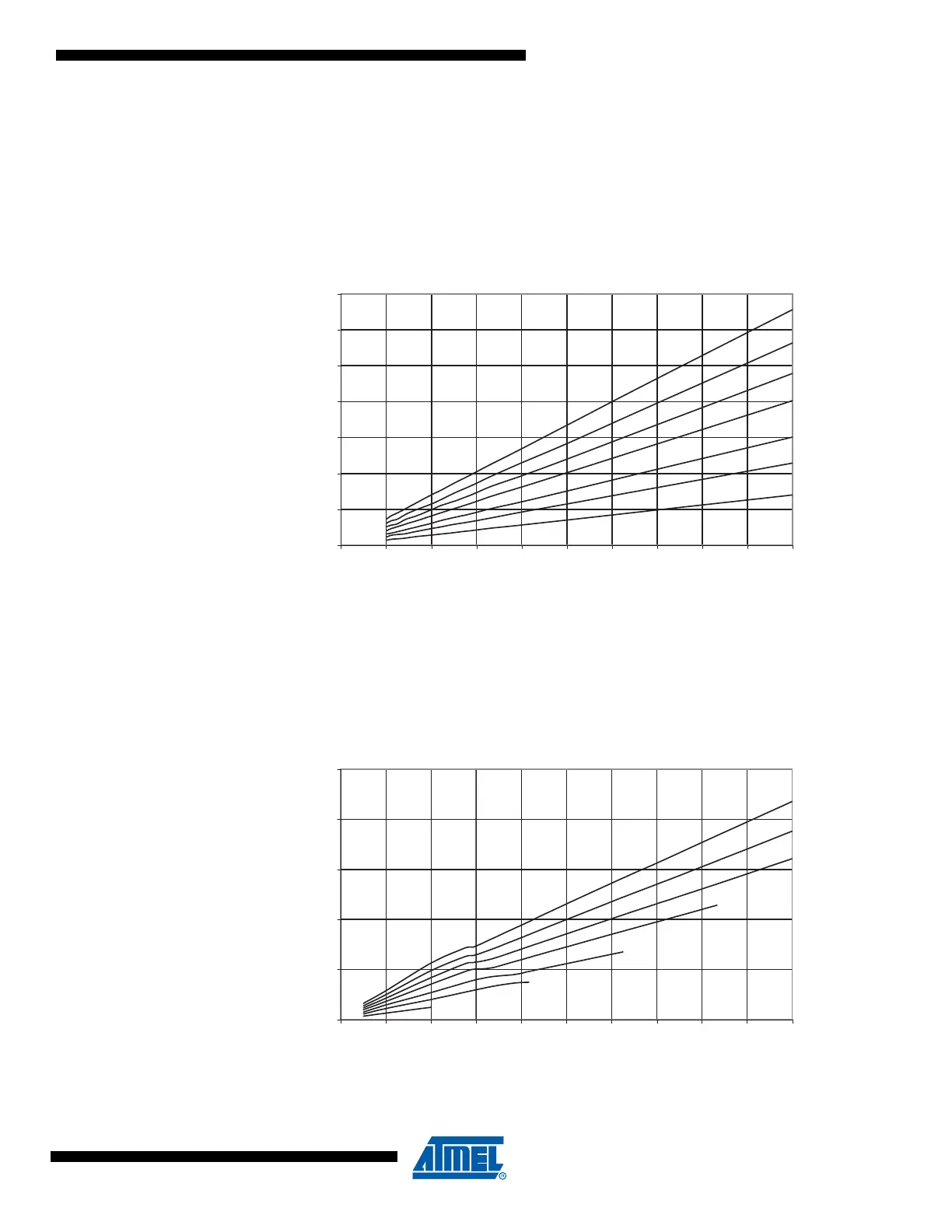

Figure 27-1. Active Supply Current vs. Low Frequency (0.1-1.0 MHz).
Figure 27-2. Active Supply Current vs. Frequency (1 - 20 MHz).
ACTIVE SUPPLY CURRENT vs. LOW FREQUENCY
0.1-1.0 MHz
5.5 V
5.0 V
4.5 V
4.0 V
3.3 V
2.7 V
1.8 V
0
0.2
0.4
0.6
0.8
1
1.2
1.4
0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1
Frequency (MHz)
I
CC
(mA)
ACTIVE SUPPLY CURRENT vs. FREQUENCY
1 - 20 MHz
5.5 V
5.0 V
4.5 V
0
4
8
12
16
20
02468 10 12 14 16 18 20
Frequency (MHz)
I
CC
(mA)
1.8 V
2.7 V
3.3 V
4.0 V
