Atmel ATmega48PV User Manual

336
8025I–AVR–02/09
ATmega48P/88P/168P/328P

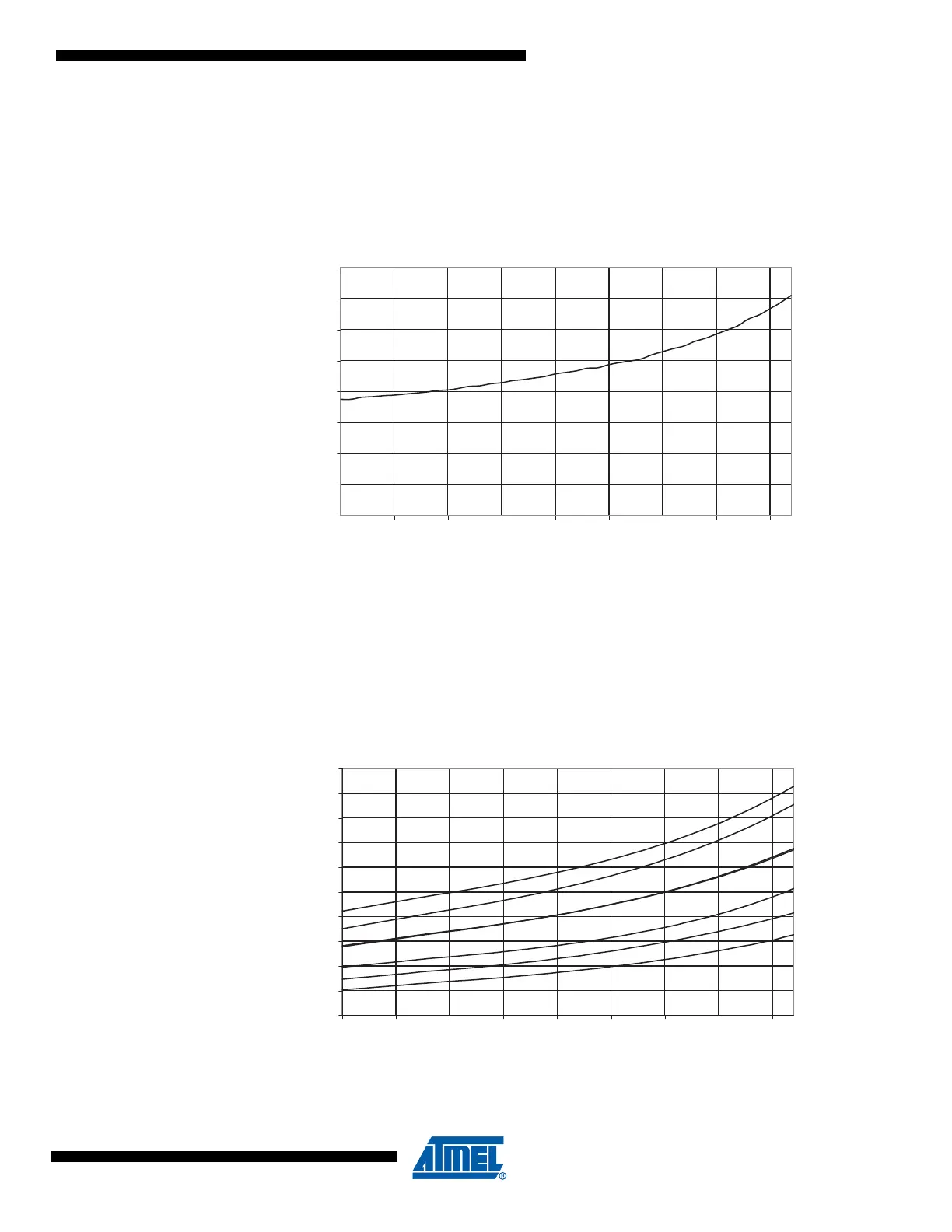

27.1.5 Power-save Supply Current
Figure 27-13. Power-Save Supply Current vs. V
CC
(Watchdog Timer Disabled and 32 kHz Crys-
tal Oscillator Running).
27.1.6 Standby Supply Current
Figure 27-14. Standby Supply Current vs. Vcc (Watchdog Timer Disabled).
POWER-SAVE SUPPLY CURRENT vs. V
CC
WATCHDOG TIMER DISABLED and 32 kHz CRYSTAL OSCILLATOR RUNNING
0
0.2
0.4
0.6
0.8
1
1.2
1.4
1.6
1.8 2.3 2.83.33.8 4.3 4.8 5.3 5.8
V
CC
(V)
I
CC
(uA)
25 °C
STANDBY SUPPLY CURRENT vs. V
CC
WATCHDOG TIMER DISABLED
6MHz_xtal
6MHz_res
4MHz_xtal
4MHz_res
450kHz_res
2MHz_xtal
2MHz_res
0
0.02
0.04
0.06
0.08
0.1
0.12
0.14
0.16
0.18
0.2
1.8 2.3 2.8 3.3 3.8 4.3 4.8 5.3 5.8
V
CC
(V)
I
CC
(mA)
