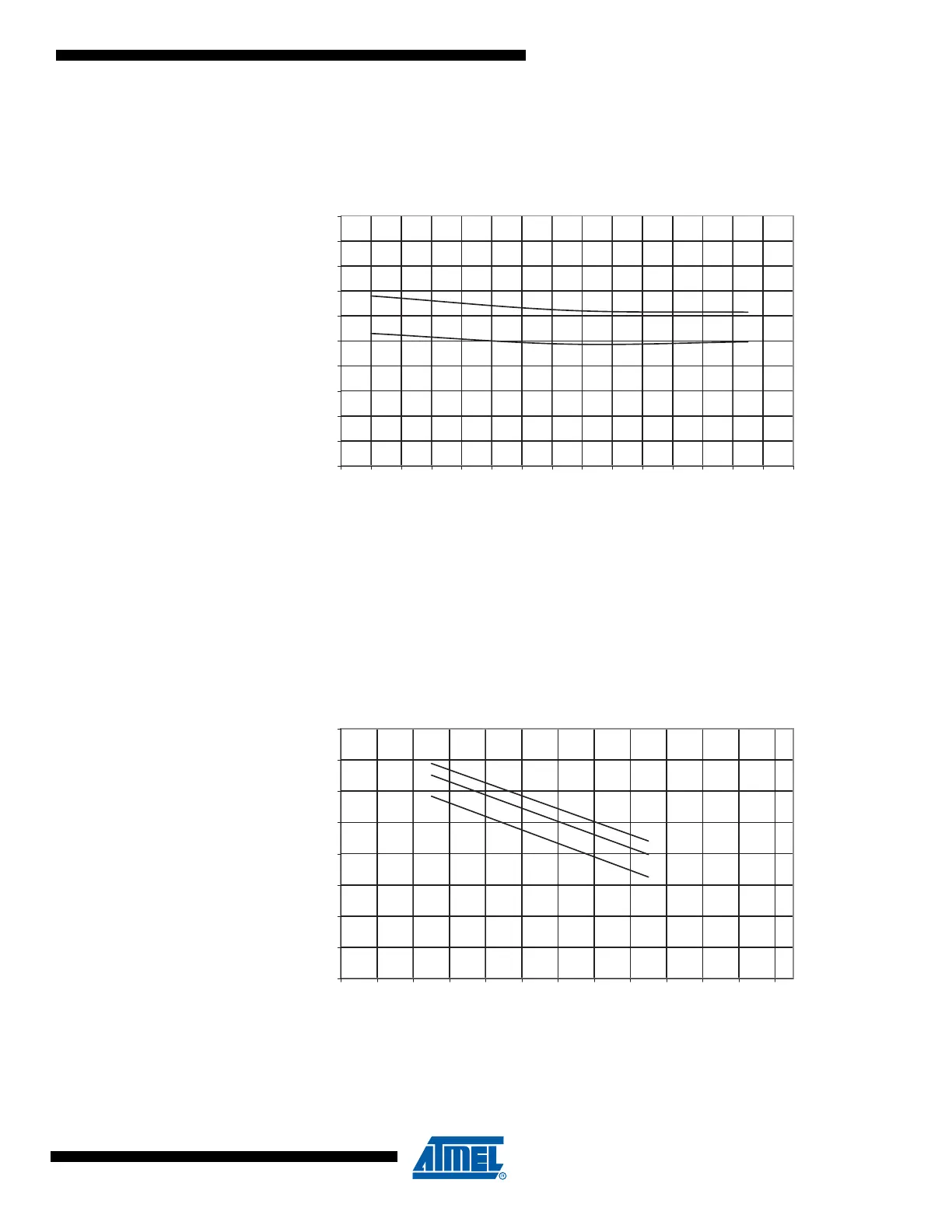

Figure 27-125.BOD Thresholds vs. Temperature (BODLEVEL is 4.3 V).
27.3.11 Internal Oscilllator Speed
Figure 27-126.Watchdog Oscillator Frequency vs. Temperature.
BOD THRESHOLDS vs. TEMPERATURE
Vcc = 4.3V
4
4.05
4.1
4.15
4.2
4.25
4.3
4.35
4.4
4.45
4.5
-50 -40 -30 -20 -10 0 10 20 30 40 50 60 70 8090100
Temperature (C)
Threshold (V)
Rising Vcc
Falling Vcc
WATCHDOG OSCILLATOR FREQUENCY vs. TEMPERATURE
5.0 V
3.3 V
2.7 V
104
106
108
110
112
114
116
118
120
0 1020304050607080 90 100 110 120
Temperature
F
RC
(kHz)
