Atmel ATtiny25 User Manual

180
7598H–AVR–07/09
ATtiny25/45/85

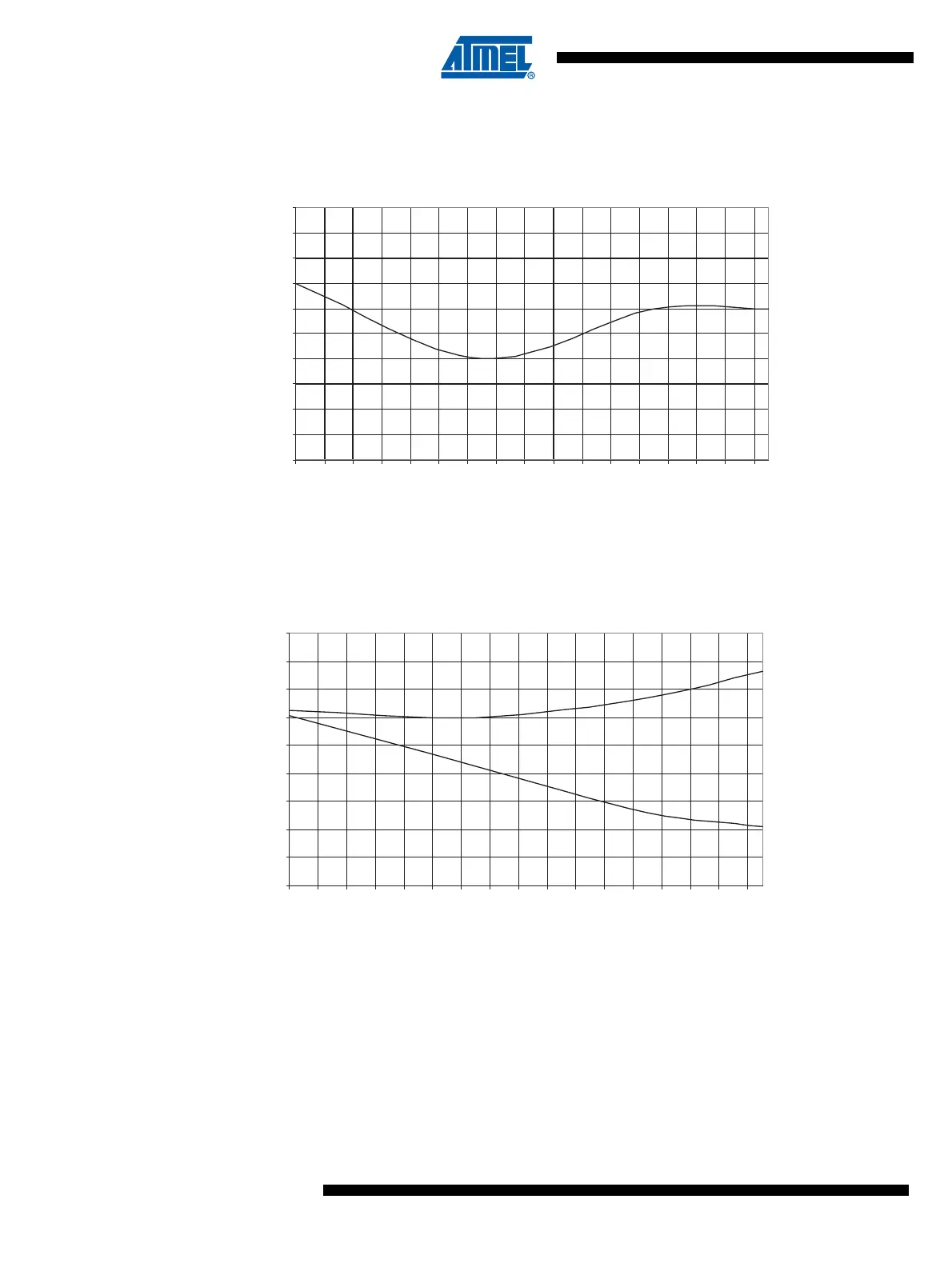

Figure 23-49. Analog to Digital Converter Single Endded mode DNL vs. V
CC
Figure 23-50. Analog to Digital Converter differential mode INL vs. V
CC
Analog to Digital Converter - Differential Non Linearity DNL
Single Ended, Vcc = 4V, Vref = 4V
0.47
0.48
0.49
0.5
0.51
0.52
0.53
0.54
0.55
0.56
0.57
-40-30-20-100 102030405060708090100110120
Temperature
LS B
Analog to Digital Converter - Integral Non Linearity INL
Differential Inputs, Vcc = 4V, Vref = 4V
Diff x1
Diff x20
0
0.2
0.4
0.6
0.8
1
1.2
1.4
1.6
1.8
-40-30-20-100 102030405060708090100110120
Temperature
LS B
