AT90CAN32/64/128

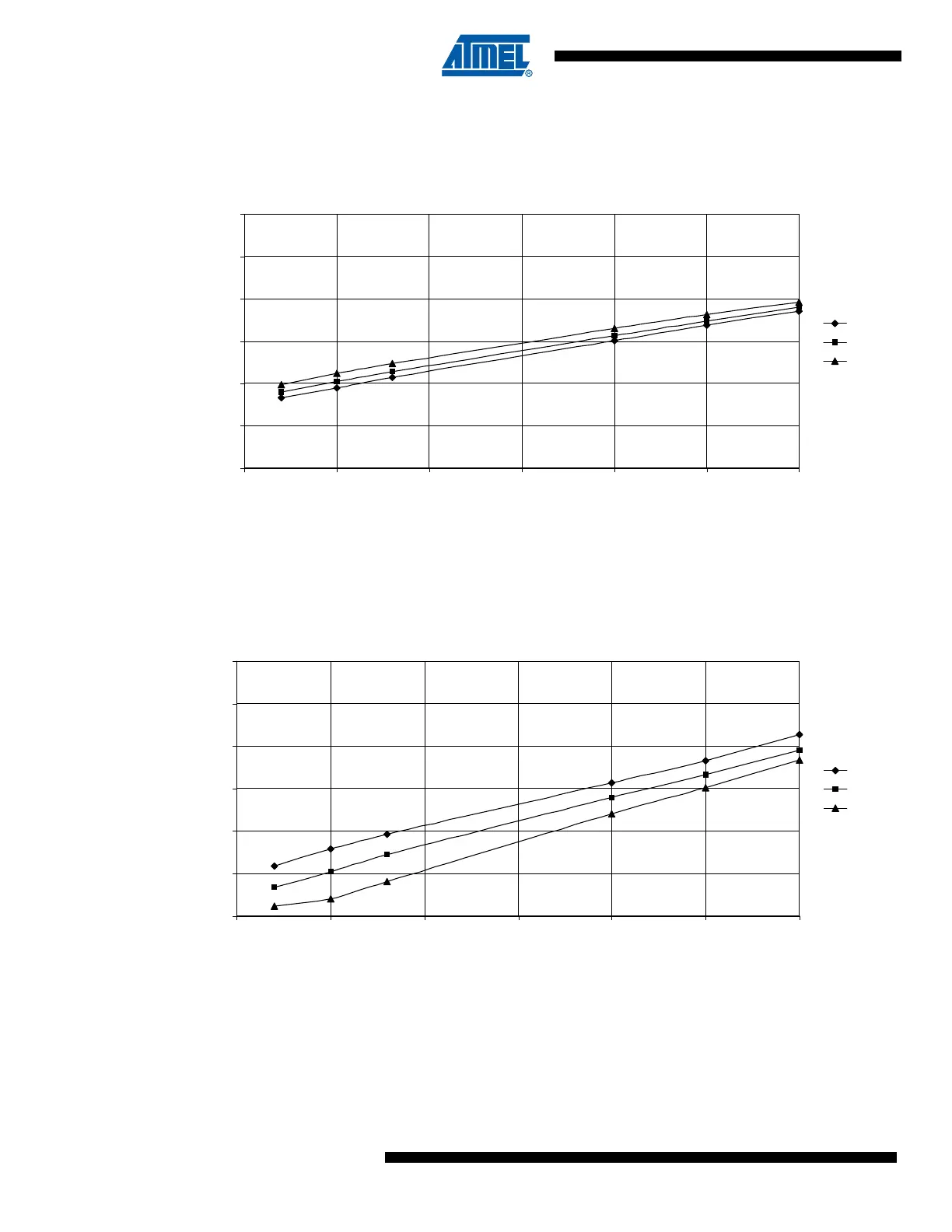

Figure 1. I/O Input Threshold Voltage vs. Vcc (V
IL
, I/O Pin Read as “0”)
Figure 2. I/O Input Hysteresis vs. Vcc
I/O PIN INPUT THRESHOLD VOLTAGE vs. VCC (VIL, I/O PIN READ AS "0")
0.5
0.75
1
1.25
1.5
1.75
2
2.5 3 3.5 4 4.5 5 5.5
Vcc (V)
Threshold (V)
85°C
25°C
-40°C
I/O PIN INPUT HYSTERESIS vs. VCC
0
0.1
0.2
0.3
0.4
0.5
0.6
2.533.544.555.5
Vcc (V)
Threshold (V)
85°C
25°C
-40°C
