AT90CAN32/64/128

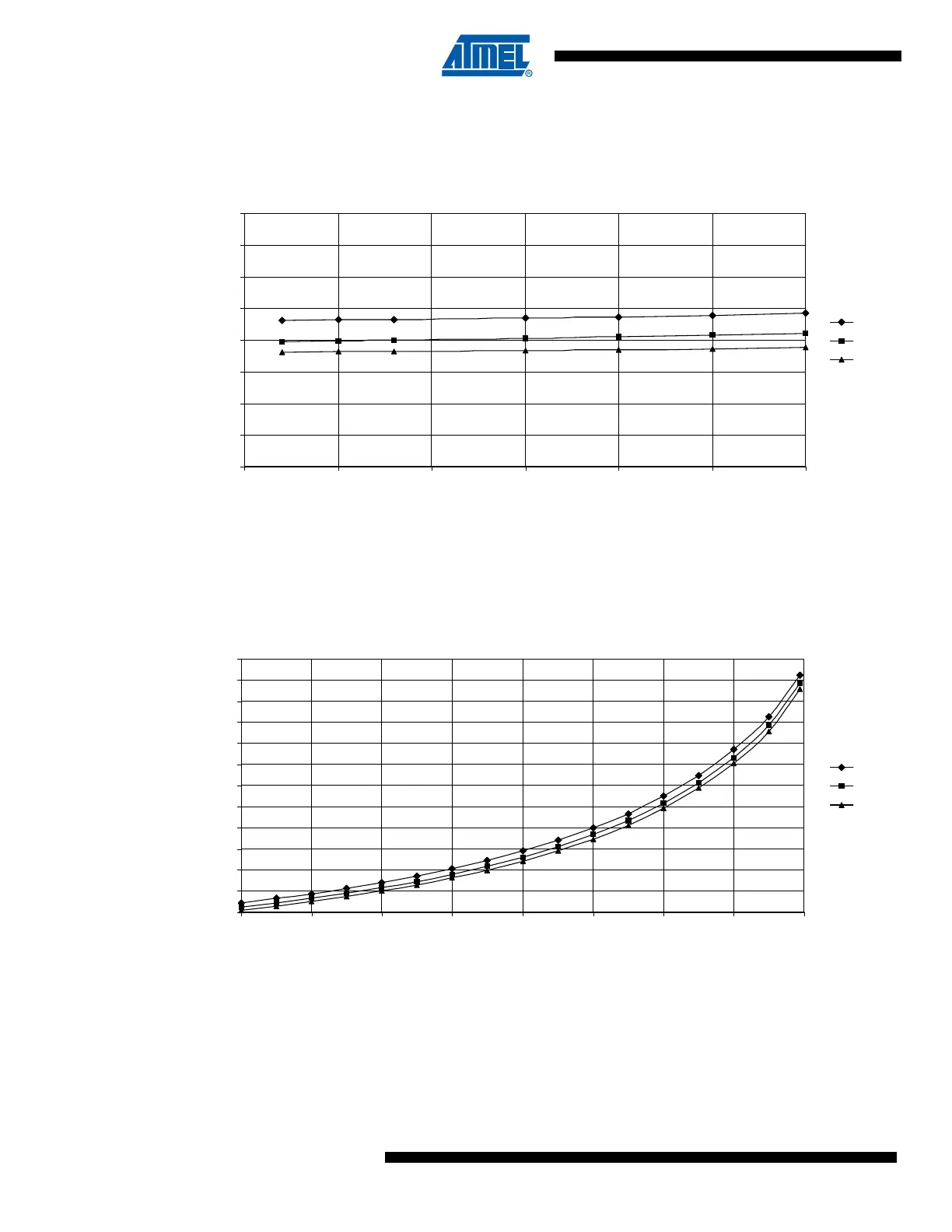

Figure 28-30. Calibrated 8 MHz RC Oscillator Frequency vs. Operating Voltage
Figure 28-31. Calibrated 8 MHz RC Oscillator Frequency vs. OSCCAL Value
CALIBRATED 8MHz RC OSCILLATOR FREQUENCY vs. VCC
6
6.5
7
7.5
8
8.5
9
9.5
10
2.5 3 3.5 4 4.5 5 5.5
Vcc (V)
F
RC
(MHz)
85°C
25°C
-40°C
CALIBRATED 8MHz RC OSCILLATOR FREQUENCY vs. OSCCAL VALUE
4
5
6
7
8
9
10
11
12
13
14
15
16
0 163248648096112128
OSCCAL Value
F
RC
(MHz)
85°C
25°C
-40°C
