AT90CAN32/64/128

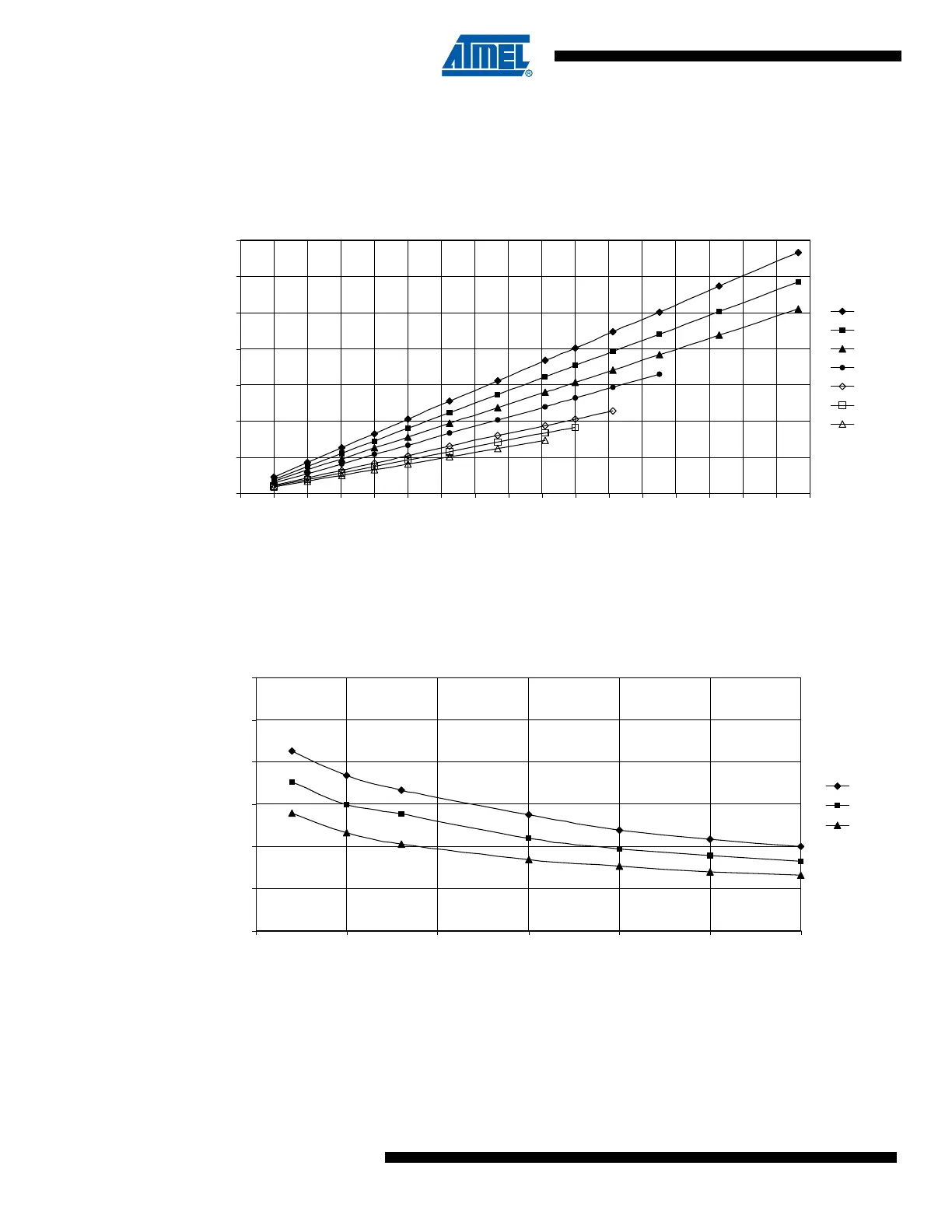

Figure 28-38. Reset Supply Current vs. Operating Voltage (1 - 16 MHz)
(Excluding Current Through the Reset Pull-up)
Figure 28-39. Minimum Reset Pulse Width vs. Operating Voltage
RESET SUPPLY CURRENT vs. FREQUENCY (1 - 16 MHz)
(EXCLUDING CURRENT THROUGH THE RESET PULL-UP)
0
0.5
1
1.5
2
2.5
3
3.5
01234567891011121314151617
Frequency (MHz)
Icc (mA)
5.50V
5.00V
4.50V
4.00V
3.30V
3.00V
2.70V
MINIMUM RESET PULSE WIDTH vs. Vcc
0
250
500
750
1000
1250
1500
2.5 3 3.5 4 4.5 5 5.5
Vcc (V)
Pulse Width (ns)
85°C
25°C
-40°C
