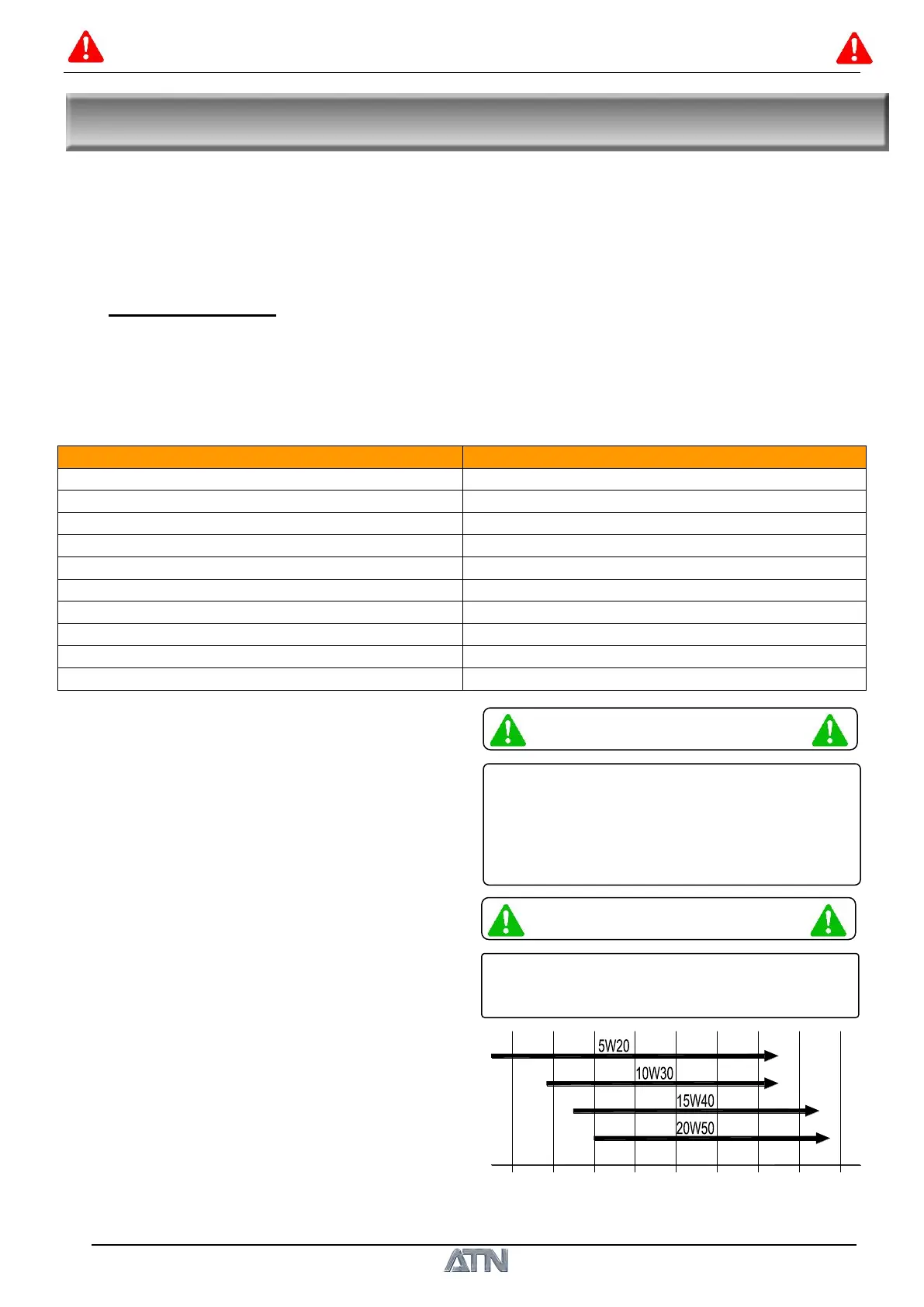

Page #46 background image
OPERATOR’S AND SAFETY MANUAL
1NO0039UK-00
Zebra 12
46
S
S
S
e
e
e
c
c
c
t
t
t
i
i
i
o
o
o
n
n
n
7
7
7
.
.
.
M
M
M
A
A
A
I
I
I
N
N
N
T
T
T
E
E
E
N
N
N
A
A
A
N
N
N
C
C
C
E
E
E
F
F
F
O
O
O
R
R
R
T
T
T
H
H
H
E
E
E
O
O
O
P
P
P
E
E
E
R
R
R
A
A
A
T
T
T
O
O
O
R
R
R
This section is intended to supply the operator with the necessary information to carry out
control operations and daily maintenance on the machine. The following information does not
replace the machine’s preventive maintenance and inspection programme.
7.1. DIESEL ENGINE
-NOTE-
Refer to the engine's maintenance manual for more information.
7.1.1 CHARACTERISTICS
KUBOTA
V1305-E2B
Type
4-stroke diesel
Cooling
Liquide
Number of cylinders - Displacement
4 - 1 335 cm
3
Low regime
1400 tr/mn
Max. regime.
3000 tr/mn
Oil content
6 litres
Starter
12V - 1.4kW
Alternator
12V - 40A
Battery
12V - 80Ah / 640A
Power (ISO Continuous) at max. regime
19.4kW (26ch)
7.1.2 FUEL
Make sure that there is enough fuel in the tank
to avoid unpriming the circuit. Only use fuel for
GNR type diesel engines. Refer to the engine's
maintenance manual.
7.1.3 ENGINE OIL
At the factory, the machine is supplied with a
lubricant Multi-Grade 15W40. . This type of
lubricant enables the engine to start at
temperatures as low as -15°C.
Depending on the conditions under which the
machine is used, you may need to adapt the
type of lubricant (See graph opposite).
CAUTION
ONLY USE FUEL FOR GNR TYPE
DIESEL ENGINES.
MAKE SURE NO WATER OR
IMPURITIES GET IN WHEN FILLING
THE TANK.
CAUTION
THE USE OF SYNTHETIC OIL IS NOT
RECOMMENDED.
TEMPERATURE AMBIANTE (°C)
-30 -20 -10 100 20 5030 40
