OPERATOR’S AND SAFETY MANUAL
1NO0039UK-00
Zebra 12
70
8.4. TILT SENSOR CALIBRATION
A calibrationof the sensor is necessary to define the 0° position on both axis in case of a
calibration fault or if the componant has been replaced.
- Drive the machine on a flat and horizontal ground.
- Fully lower the structure.
- Swing the structure in line (jib above the rear axle).
- Check the horizontality of the chassis using a level (preferably digital) placed lengthways then
sideways on the turntable attachment plate, on the chassis.

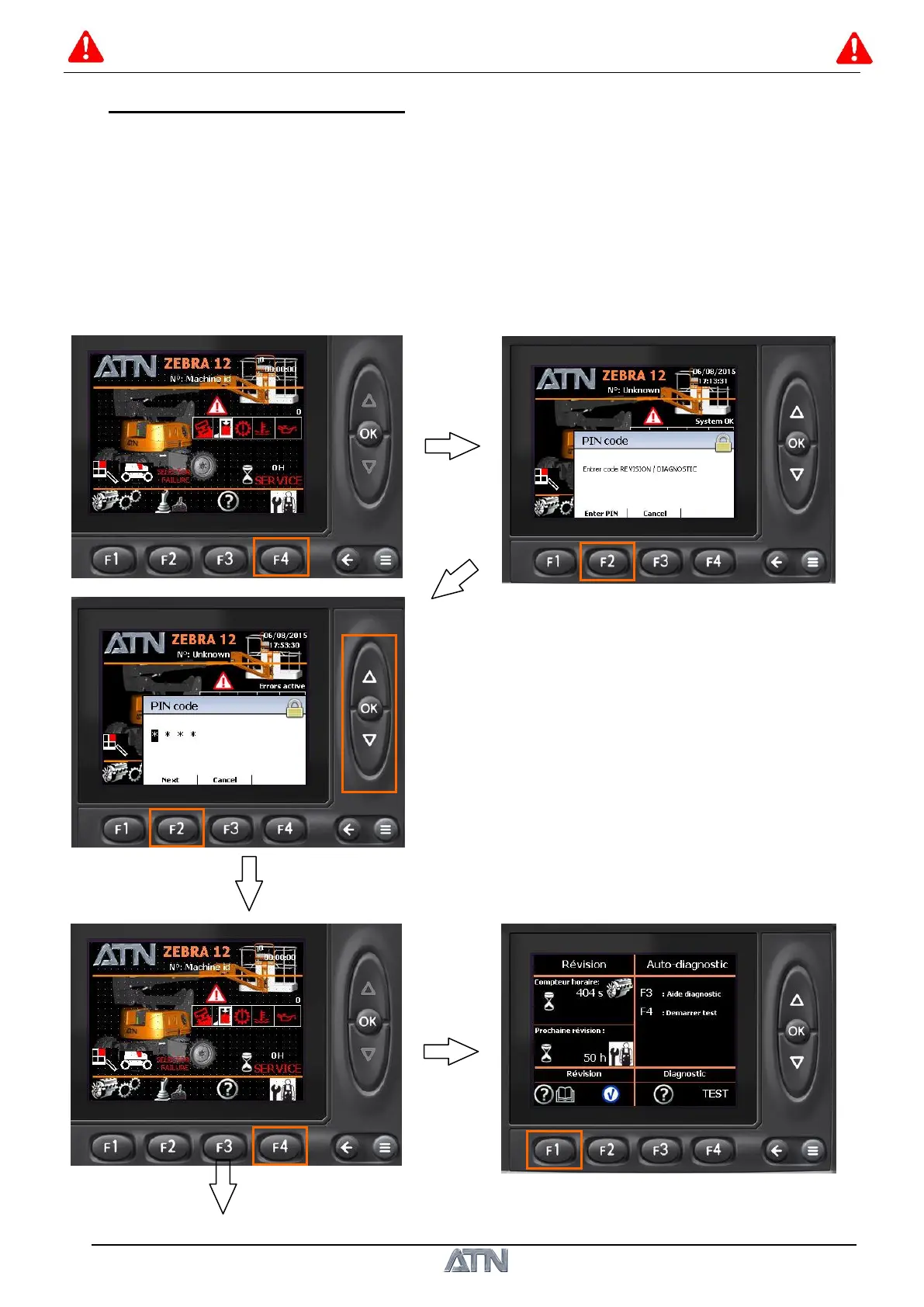

From the home screen, press [F4]. Press [F2].
Use the arrows on the right hand side to display the
access code digits.
Press [OK] to validate each digit and move to the
next one.
Once the last digit has been entered, press [OK]
then [F2] (or [OK] again).
Press [F4]. Press [F1].
55h
50h
