OPERATOR’S AND SAFETY MANUAL
1NO0039UK-00
Zebra 12
26
4.1. CONTROLS AND INDICATORS

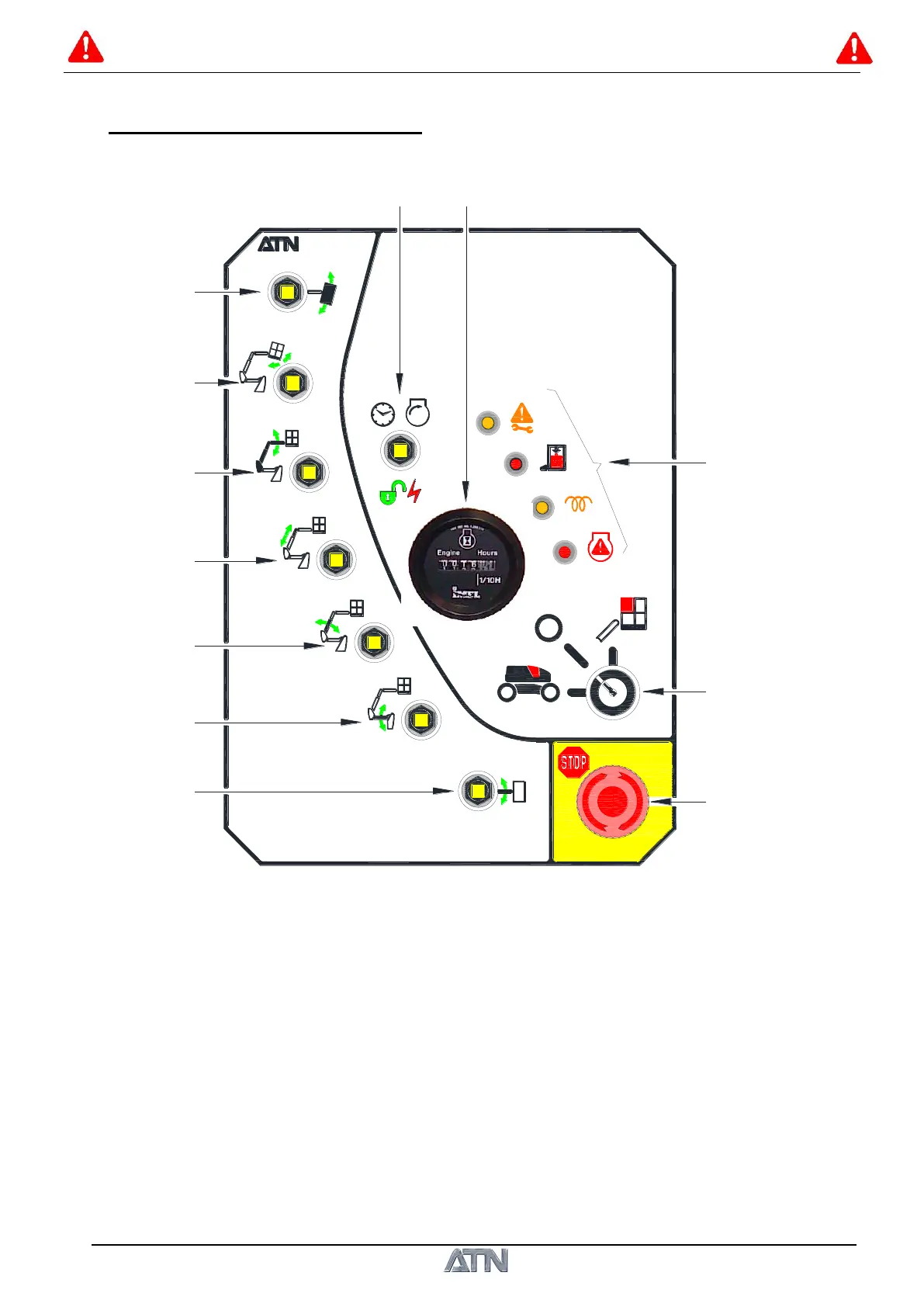

4.1.1 GROUND CONTROL STATION
1- Control station selector / Machine shut down.
2- Emergency Stop Switch.
3- Diesel Engine ignition / Enable / Auxiliary group button.
4- Left / Right Orientation control.
5- Jib 1 Elevation / Lowering control.
6- Jib 2 Elevation / Lowering control.
7- Telescope In / Out control.
8- Jib 2 Elevation / Lowering control.
9- Right / Left Platform rotation control.
10- Platform levelling control Elevation / Lowering.
11- Controls lights.
12- Hourmeter.
1AU0211
5 sec
(11)
(10)
(9)
(8)
(7)
(6)
(5)
(4)
(3)
(1)
(2)
(12)
