ATN Zebra 12 Operator's And Safety Manual

OPERATOR’S AND SAFETY MANUAL
1NO0039UK-00
Zebra 12
27
O

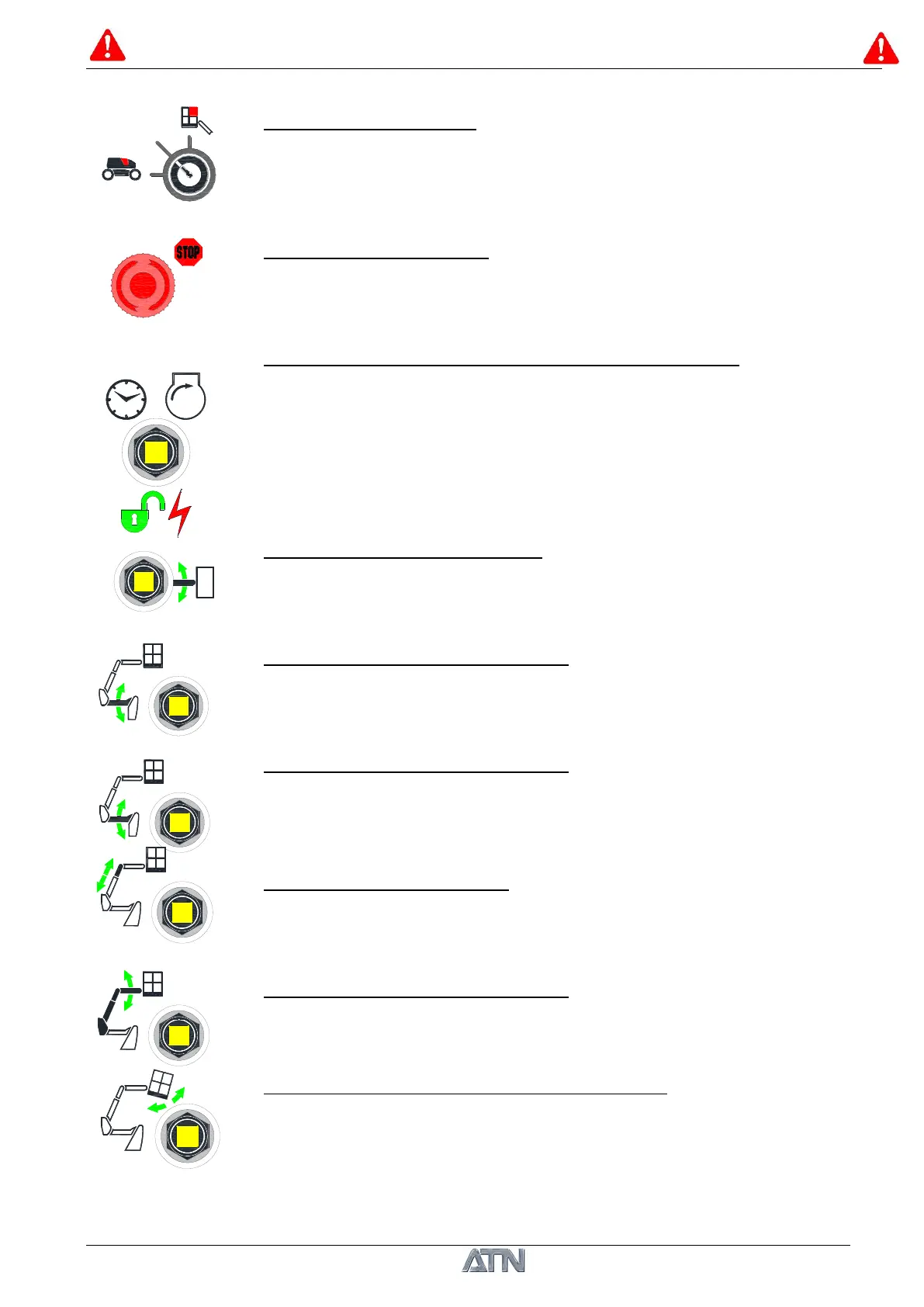

1- Control station selector :
Used to activate the controls on the work platform control station or the
ground control station. In position O, the key may be removed to switch off
the machine.
2- Emergency Stop Switch:
In the event of an emergency, PRESS the button to CUT all the machine's
movements and shut down the diesel engine. Turn the button by 1/4 turn
to restore the electrical power.
3- Diesel Engine ignition / Enable / Auxiliary group button:
Diesel engine ignition : toggle and hold the lever towards the top until the
engine starts. Refer to Section 4.2 – Diesel engine operation.
Control validation: When the diesel engine is running, toggle and hold the
lever towards the bottom to activate the movement controls.
Auxiliary Group: When the diesel engine is stopped, toggle and hold the
lever towards the bottom to activate the hydraulic auxiliary group and the
movement controls. Refer to Section 6.1.3 – Hydraulic auxiliary group.
4- Left / Right Orientation Control:
Toggle the lever towards the top to swing the structure to the right or
towards the bottom to swing the structure to the left.
Refer to Section 4.4.5 – Structure orientation.
5- Jib 1 Elevation / Lowering Control:
Toggle the lever towards the top to raise the Jib 1 or towards the bottom to
lower the Jib 1.
Refer to Section 4.4.2 – Elevation.
6- Jib 2 Elevation / Lowering Control:
Toggle the lever towards the top to raise the Jib 2 or towards the bottom to
lower the Jib 2.
Refer to Section 4.4.2 – Elevation.
7- Telescope In / Out Control:
Toggle the lever towards the top to extend the telescope or towards the
bottom to retract the telescope.
Refer to Section 4.4.3 –Télescope.
8- Jib 3 Elevation / Lowering Control:
Toggle the lever towards the top to raise the Jib 3 or towards the bottom to
lower the Jib 3.
Refer to Section 4.4.2 – Elevation.
9- Platform levelling control Elevation / Lowering:
Toggle the lever towards the top to adjust the platform’s level up or
towards the bottom to adjust the platform’s level down.
Refer to Section 4.4.4 – Platform’s levelling.
5 sec
