ATN Zebra 12 Operator's And Safety Manual

OPERATOR’S AND SAFETY MANUAL
1NO0039UK-00
Zebra 12
47
7.2. LUBRICATION
7.2.1 LUBRICANTS SPECIFICATIONS - CAPACITIES
CODE
DESCRIPTION
CAPACITE
NOTES
GR
Multi-Use grease
-
Adhesive grease, resistant to water and
extreme pressures
HM
Engine oil (15W40)
6 l
See Section 7.1.3- Engine oil
H46
Hydraulic oil H46
48 l
Fluid for Hydraulic circuits
Kinematic viscosity 46mm²/s @ 40°C
D
Fuel for Diesel engine
50 l
GNR type (Non Road Diesel)

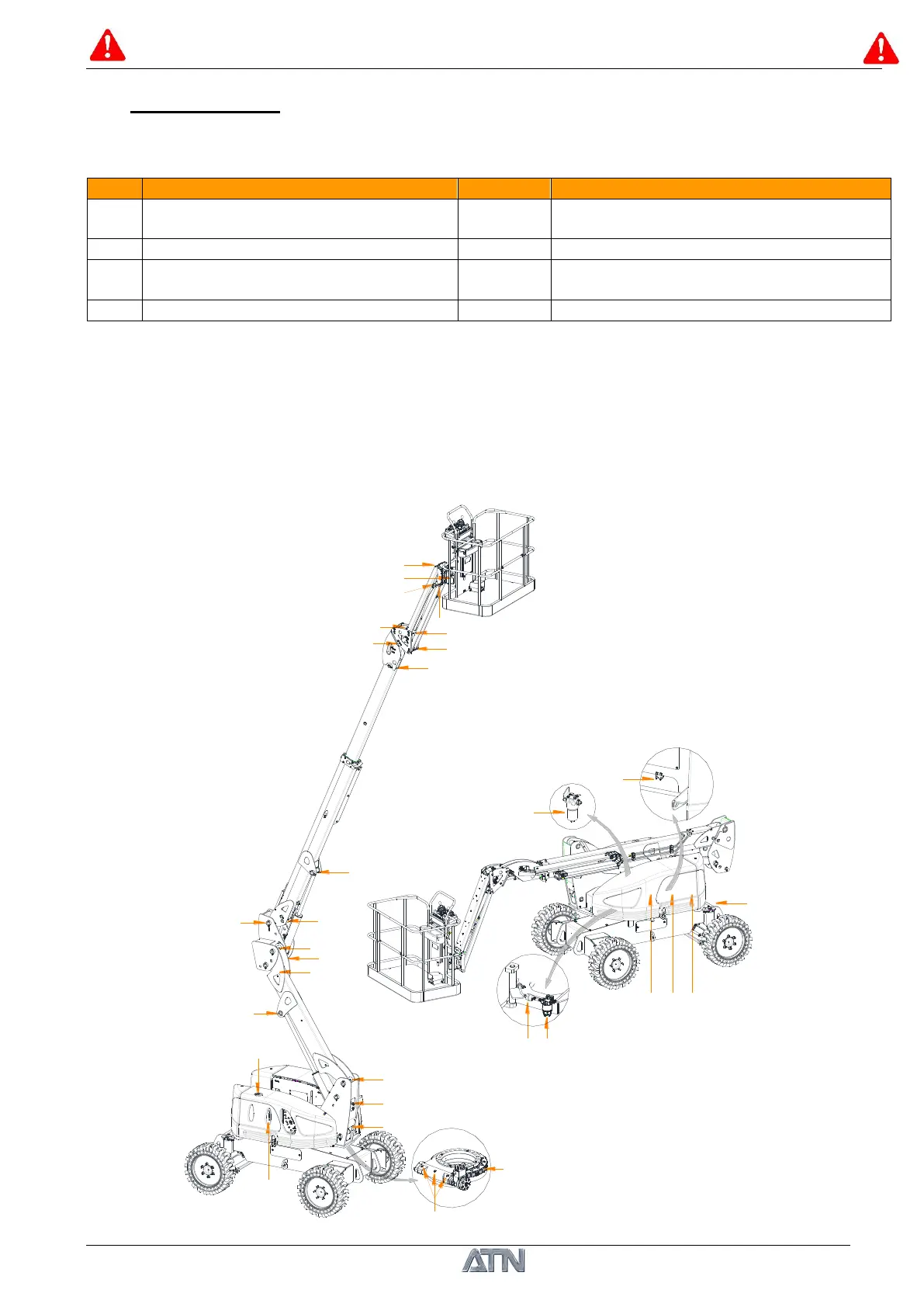

7.2.2 LUBRICATION AND MAINTENANCE POINTS
-NOTE-
The lubrication and maintenance intervals must be reduced if the machine is used
intensively or in a dusty environment.
( 19 )
( 3 )
( 1 )
( 2 )
( 8 )
( 4 )
( 5 )
( 9 )( 10 )
( 15 )
( 16 )
( 16 )
( 16 )
( 16 )
( 16 )
( 16 )
( 16 )
( 16 )
( 16 )
( 18 )
( 17 )
( 17 )
( 17 )
( 17 )
( 17 )
( 17 )
( 17 )
( 17 )
( 6 )
( 7 )
( 20 )
( 17 )
( 21 )
