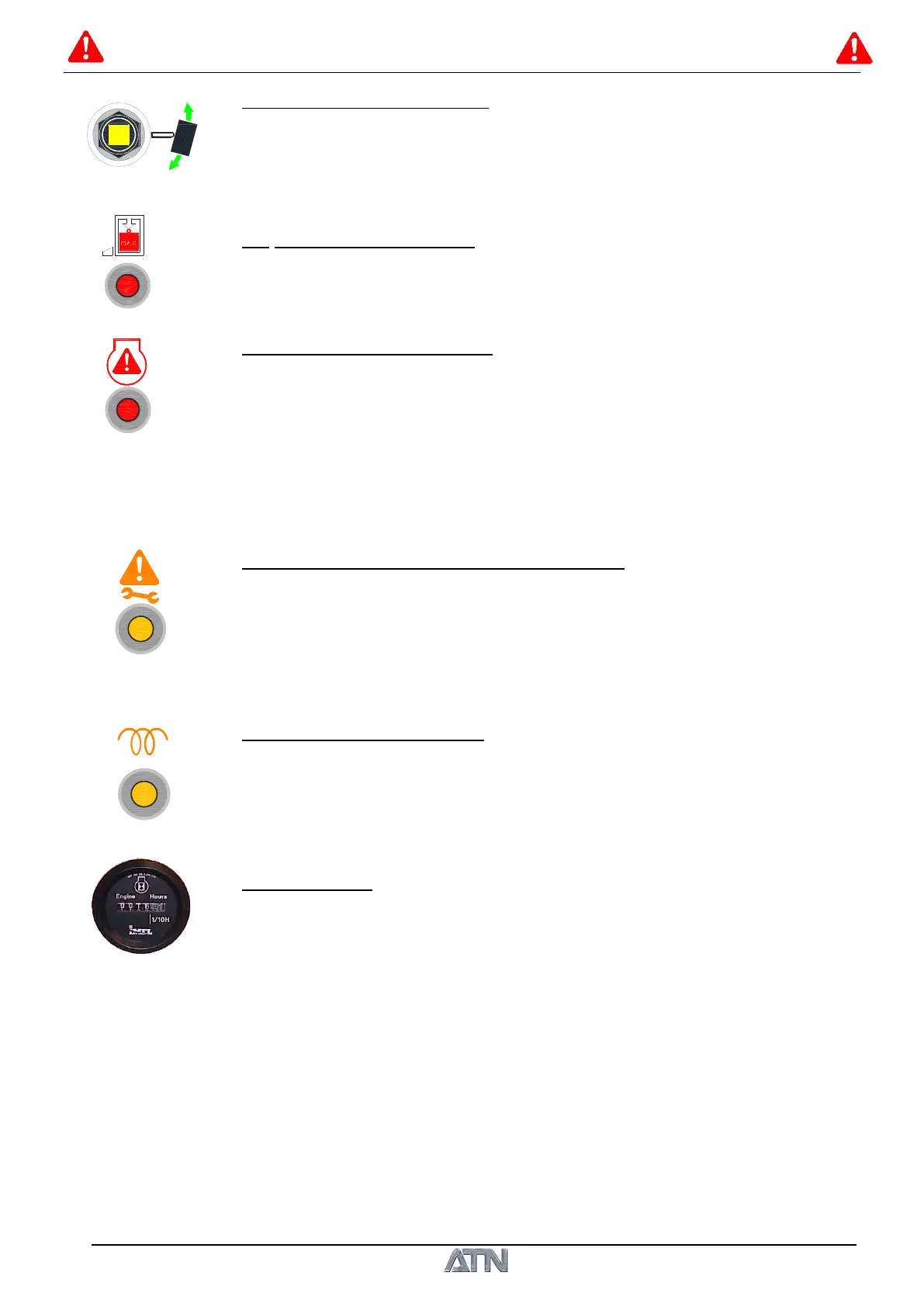

10- Platform Rotation Control:
Toggle the lever to the top to move the platform to the right or towards the
bottom to move the platform to the left.
Refer to Section 4.4.6 – Rotation de la plate-forme de travail.
11- Overload indicator light :
This light flashes when the working platform's load capacity is exceeded.
Refer to Section 5.2 –Load control.
11- Engine fault indicator light:
This light comes on power up and must go out when the engine starts.
When the engine is running, this light flashes if there is an alternator fault:
the alternator is no longer correctly recharging the battery.
When the engine is running, this light comes on steady when the diesel
engine oil pressure is abnormally low or when the cooling fluid
temperature is abnormally high: CUT the diesel engine as quickly as
possible.
See 4.2.3 – Diesel engine safeties.
11- Maintenance / System fault indicator light :
This light flashes slowly when a maintenance / pre-scheduled
maintenance operation is required.
This light is on steady (and accompanied by a sound alarm) if there is a
control system fault.
Refer to 5.2.3 – System fault.
11- Preheating indicator light:
This light comes on when the engine is warming up and goes off once the
engine is started.
Refer to Section 4.2 – Diesel engine operation.
12- Hourmeter :
Indicates the total operating time for the diesel engine.
