OPERATOR’S AND SAFETY MANUAL
1NO0039UK-00
Zebra 12
29

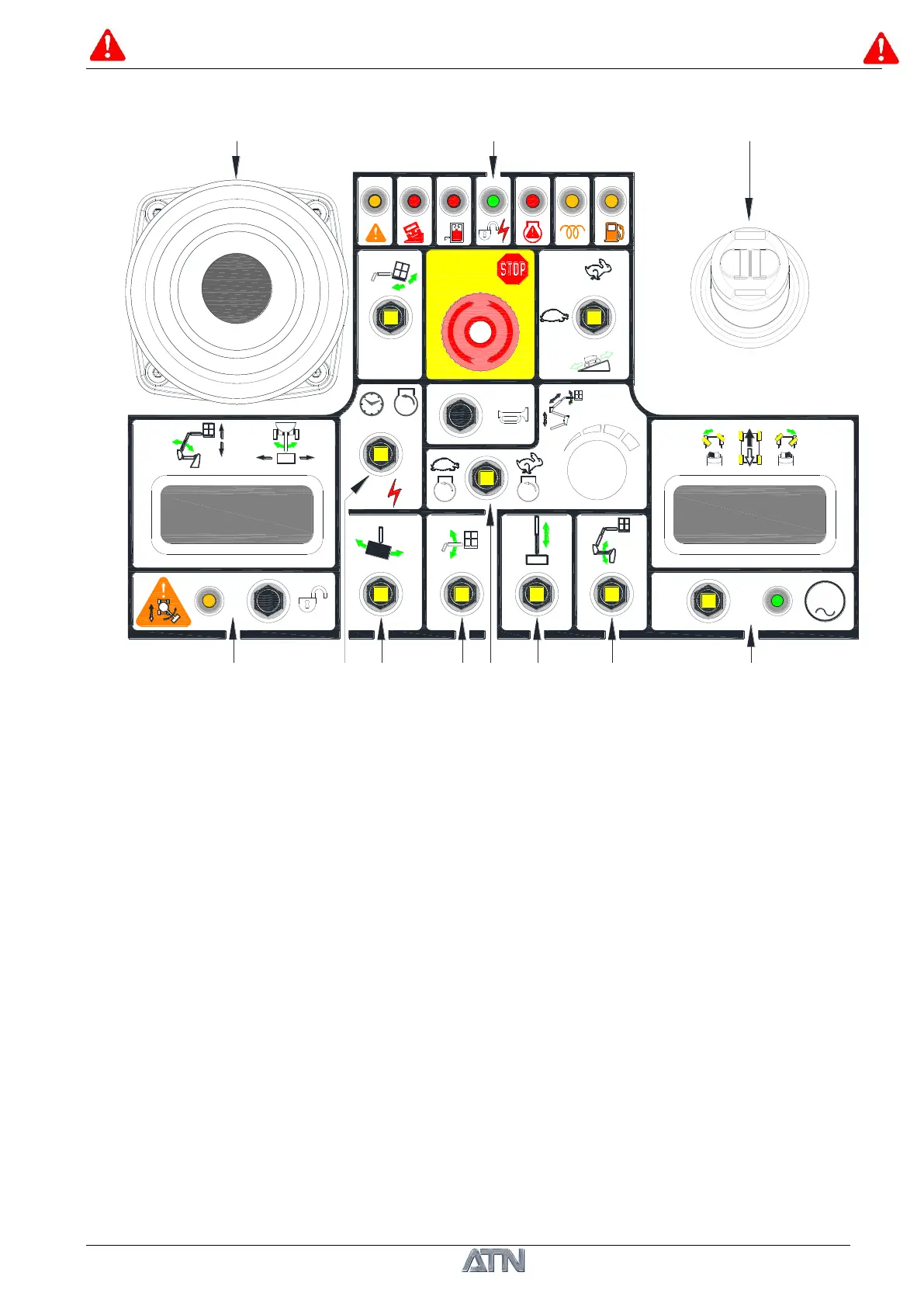

4.1.2 PLATFORM CONTROL STATION
G
2 sec
ONOFF
START
5 sec
AUX
(14)(3)(4)(5)(6)(12)
(15)
(13)
(11)
(7)
(1)
(2)
(8) (10)
(9)
1AU0210
1- Emergency Stop switch.
2- Diesel engine preheating and start / Auxiliary group button.
3- Jib 1 Elevation / Lowering Control.
4- Telescope In / Out Control.
5- Jib 3 Elevation / Lowering Control.
6- Right / Left Platform Rotation Control.
7- Raise / Lower Platform Levelling control.
8- Jib 2 Elevation / Lowering and Left / Right Orientation Joystick
9- Engine Regime Selector Switch.
10- Drive and Steering Control Joystick.
11- Drive Speed Selector Switch.
12- Drive Direction Indicator and Validation (Optional).
13- Horn.
14- Generator Indicator Light and Start Switch (Optional).
15- Indicator lights.
