ATN Zebra 12 Operator's And Safety Manual

OPERATOR’S AND SAFETY MANUAL
1NO0039UK-00
Zebra 12
30

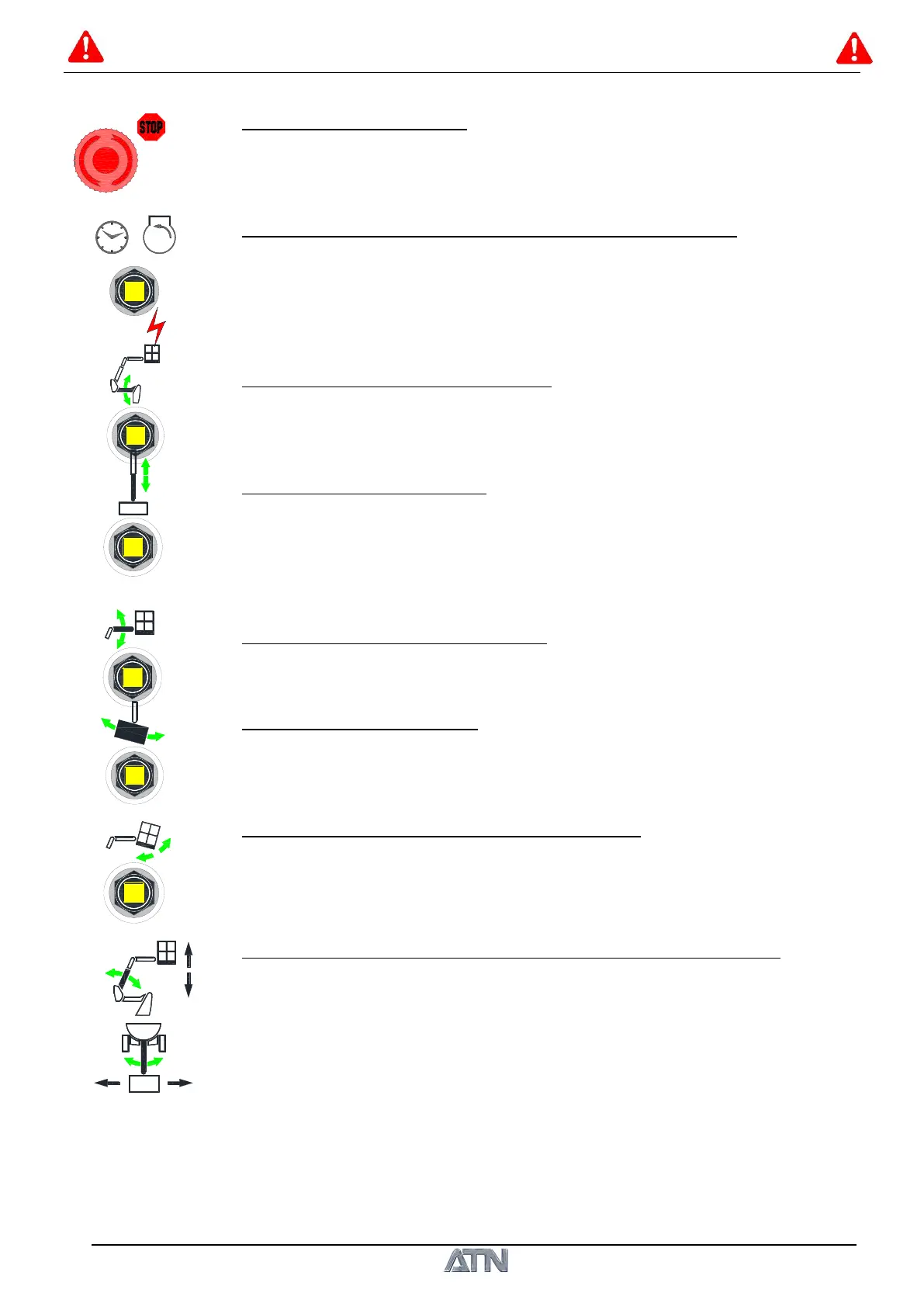

1- Emergency Stop Switch:
In the event of an emergency, PRESS the button to CUT all the machine's
movements and shut down the diesel engine. Turn the button 1/4 turn to
restore the electrical power.
2- Diesel Engine Preheat and Start Button / Auxiliary Group:
Toggle the lever upwards to start the diesel engine.
Press the validation pedal and toggle the lever downwards to use the
auxiliary hydraulic group.
Refer to Section 4.2 – Diesel engine operation.
Refer to Section 6.1.3 – Auxiliary hydraulic group.
3- Jib 1 Elevation / Lowering Control :
Toggle the lever forward to raise the jib 1 or backwards to lower the jib 1.
Refer to Section 4.4.2 – Elevation.
4- Telescope In / Out Control:
Toggle the lever backwards to extend the telescope or forward to retract
the telescope.
Refer to Section 4.4.3 –Telescope.
5- Jib 3 Elevation / Lowering Control:
Toggle the lever forward to raise the jib 3 or backwards to lower the Jib 3.
Refer to Section 4.4.2 – Elevation.
6- Platform Rotation Control:
Toggle the lever to the right or to the left to turn the platform in the
corresponding direction.
Refer to Section 4.4.6 – Work platform rotation.
7- Platform leveling control Elevation / Lowering:
Toggle the lever forward to adjust the platform level upwards or backwards
to adjust the platform level downwards.
Refer to Section 4.4.4 – Platform leveling.
8- Jib 2 Elevation / Lowering and Left / Right Orientation Joystick:
Push the lever forward to raise Jib 2 or pull the lever backwards to lower
the Jib 2.
Tilt the lever to the right or to the left to rotate the structure in the
corresponding direction.
Refer To Section 4.4.2 – Elevation.
Refer to Section 4.4.5 – Structure orientation.
START
5 sec
AUX
