Setting Up Your t170
Assembling the AC Adapter
14

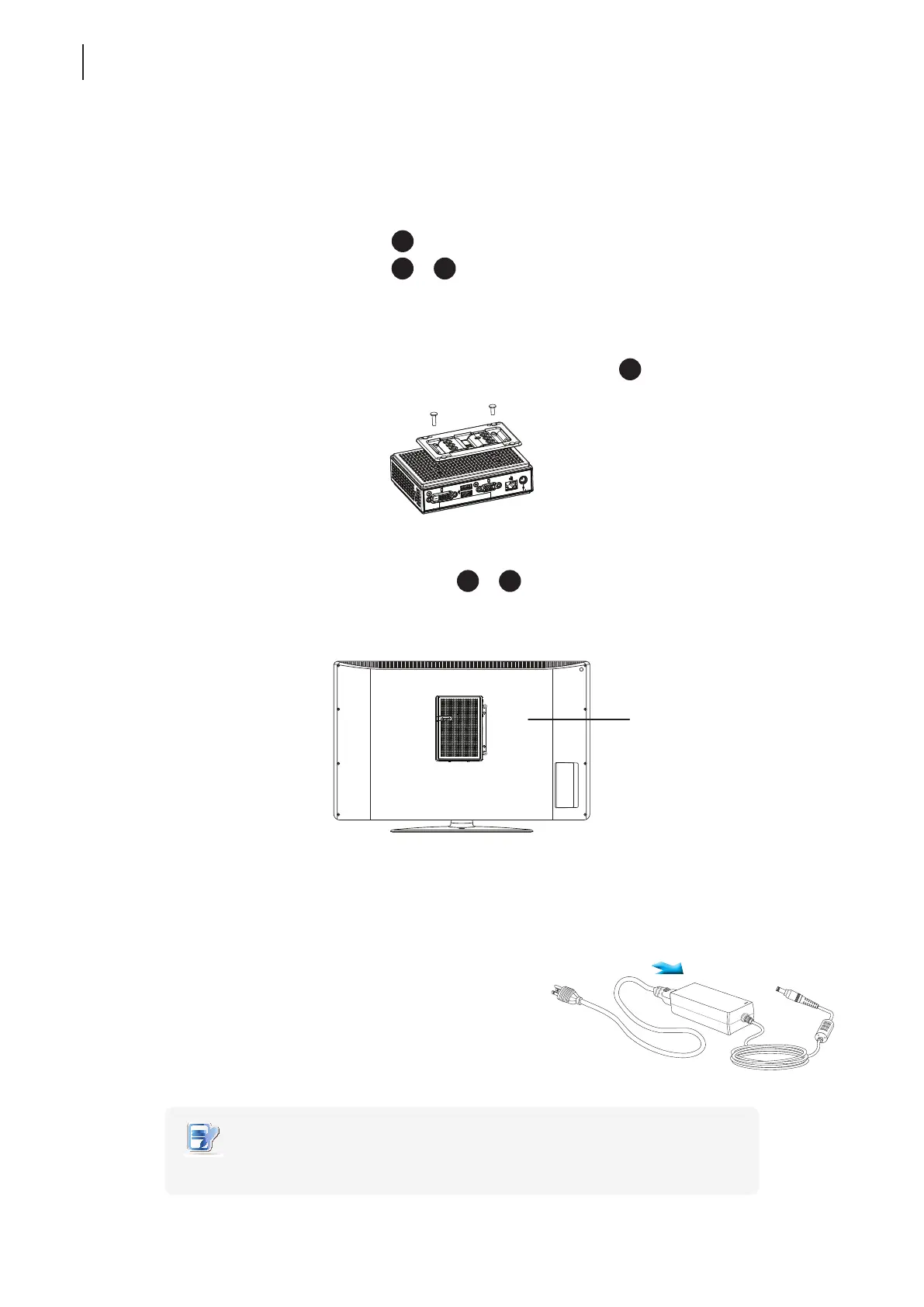

Step 5: Mount Your t170
To mount your t170 on the back of a monitor, please do the following:
1. Refer to Step 2 and Step 4 to prepare required screws for mounting your t170.
• You will need two (2) screws of type
2
to secure the bracket to your t170.
• You will need two (2) screws of type
1
or
2
to secure the bracket to the monitor.
2. Place your t170 on a at surface with the VESA mount hole side upward.
3. Refer to Step 2 to choose two of the four VESA mount holes on the bracket to align with two mount holes
on your t170 such that the bracket projects out and is closer to the rear panel than the front one as shown
below, and then secure the bracket to your t170 with two (2) screws of type
2
.
4. Align the mount holes on the bracket with the mount holes on the back of the monitor, and then secure the
bracket to the monitor with two (2) screws of type
2
or
1
. Ensure that your t170 is located in the center of
the monitor and the rear panel of your t170 is facing rightward as shown below.
2.2 Assembling the AC Adapter
To assemble the AC adapter for your t170, please do the following:
1. Unpack your thin client package and take out the AC adapter
and its detached AC power cord.
2. Press the female end of the power cord into the male connector
on the AC adapter.
NOTE
• The plug of the supplied power cord may vary with your area.
Have t170’s rear panel
facing rightward.
