AuCom MVE series - Power Terminations

INSTALLATION
14 | MVE User Manual (710-17074-00G)

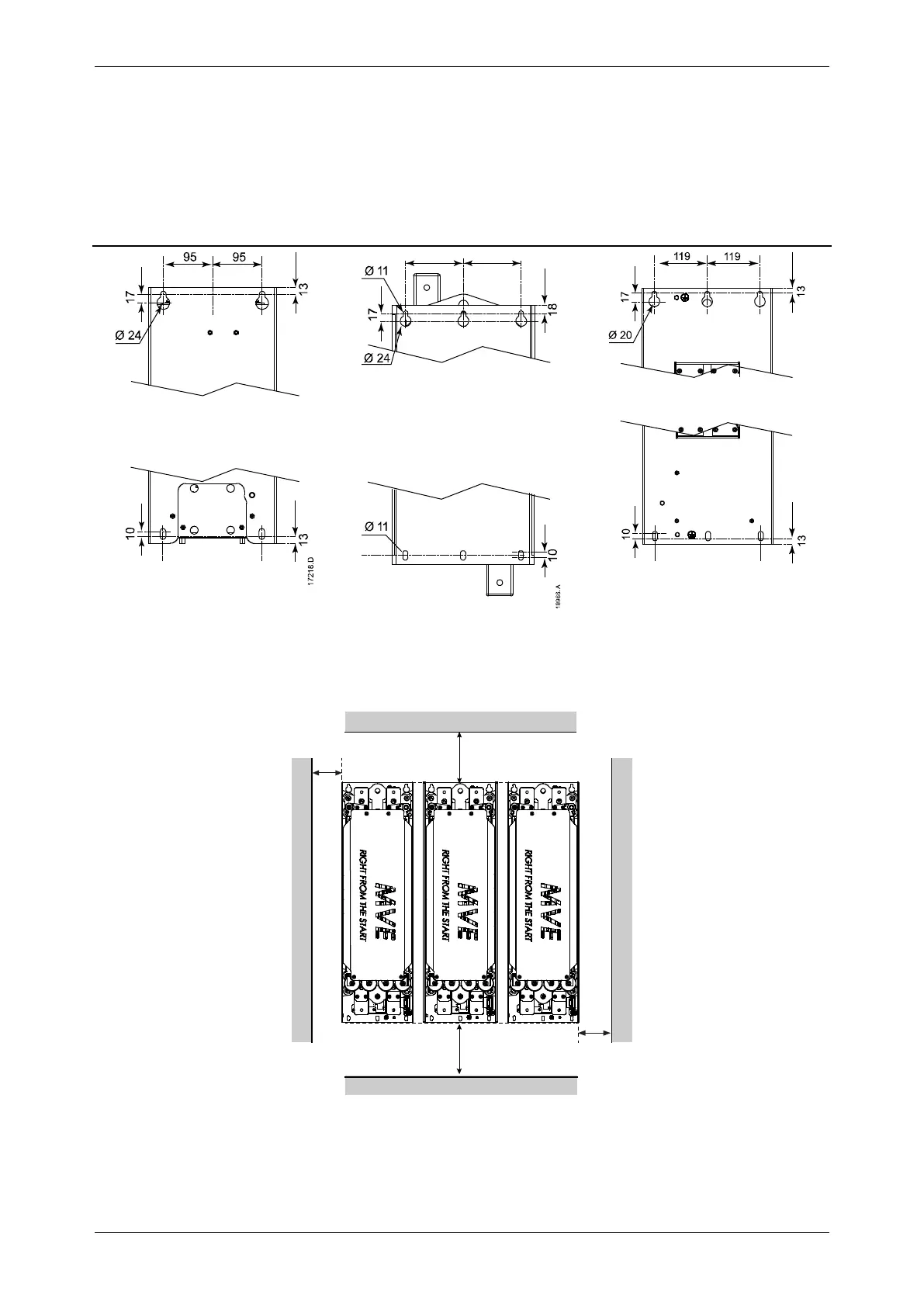

6.3 Mounting Points
Each phase arm is mounted in place using M10 bolts. The bolts must be grade 8.8 or better.
Fix the top bolts in place in the enclosure, then position the phase arm over the bolts. Secure the phase arm in position with the
bottom bolts.
V02~V06
V02~V06
V11~V13
0070 A ~ 0540 A
0600 A ~ 1700 A
0070 A ~ 0540 A
130 130
18967.A
MVE-0600~1700, V11~V13: For typical values, please consult AuCom.
6.4 Clearance Requirements
The phase arms are rated IP00 and must be installed inside an enclosure.
18973.A
120
(4.7)
120
(4.7)
120
(4.7)
120
(4.7)
