7.11 Monitoring
Logs Menu
The Logs Menu provides information on events, trips and starter performance.

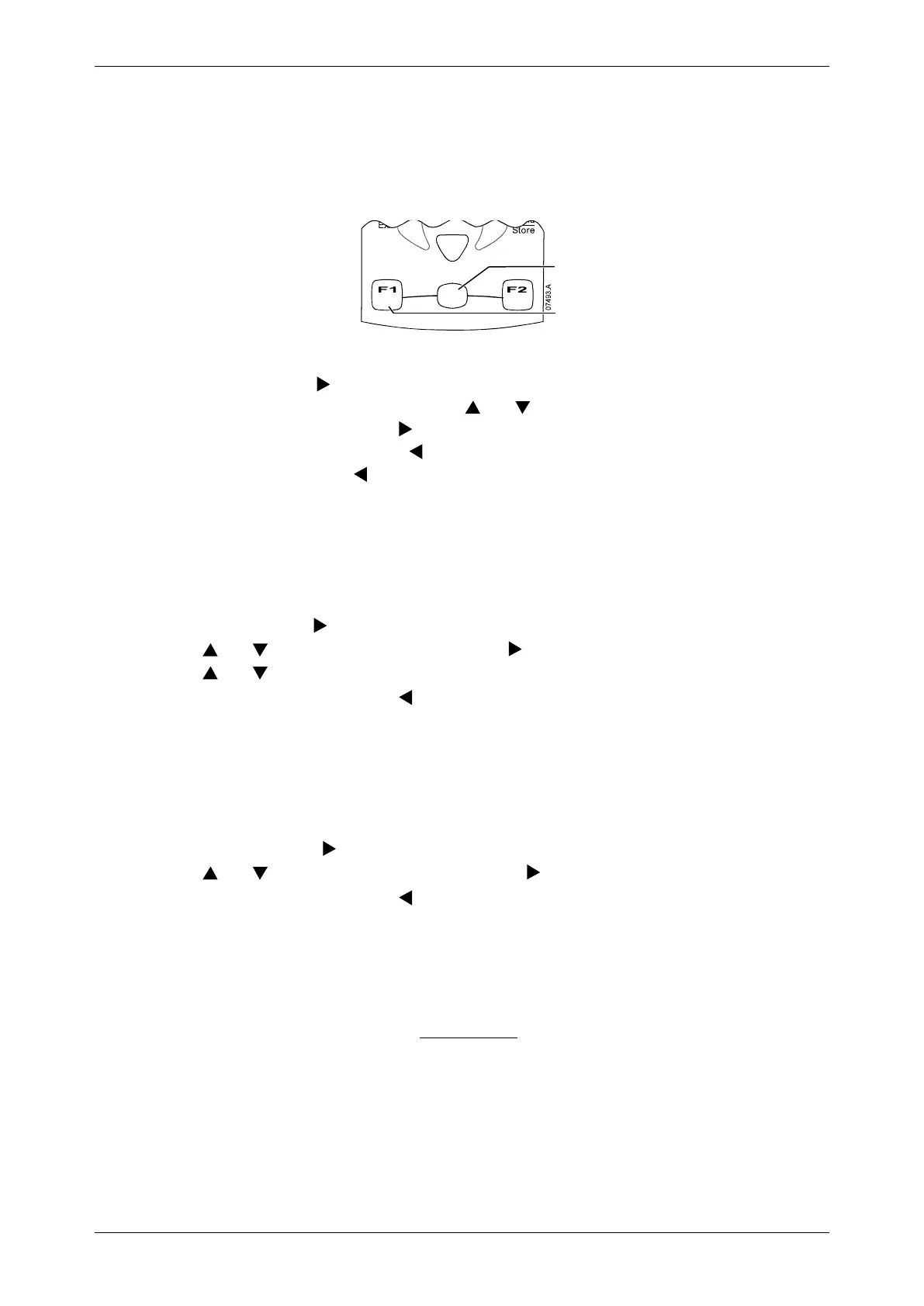

To open the Logs Menu, press
ALT
then
LOGS
while viewing the metering screens.
Logs
Alt
Tools
ALT
LOGS
To navigate through the Logs Menu:
• to open a log, press the button.
• to scroll through the entries in each log, press the and buttons.
• to view details of a log entry, press the
button.
• to return to the previous level, press the
button.
• to close the Logs Menu, press
repeatedly.
• Trip Log
The Trip Log stores details of the eight most recent trips, including the date and time the trip happened. Trip 1 is the most recent
and trip 8 is the oldest stored trip.
To open the Trip Log:
1. Press
ALT
then
LOGS
to open the Logs.
2. Scroll to Trip Log and press
.
3. Use the and buttons to select a trip to view, and press to display details.
4. Use the and buttons to scroll through available details.
To close the log and return to the main display, press
repeatedly.
• Event Log
The Event Log stores time-stamped details of the starter's 99 most recent events (actions, warnings and trips), including the date
and time of the event. Event 1 is the most recent and event 99 is the oldest stored event.
To open the Event Log:
1. Press
ALT
then
LOGS
to open the Logs.
2. Scroll to Event Log and press
.
3. Use the
and buttons to select an event to view, and press to display details.
To close the log and return to the main display, press
repeatedly.
• Starter Trip and Event Logger Software
The Starter Trip and Event Logger Software allows you to download the trip and event logs from the soft starter, for separate
analysis.
The software is compatible with all AuCom medium voltage soft starters using control software version 1.29 or later.
For further information, or to download the software, visit www.aucom.com.
